Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe

Price Negotiable

Price: 23000USD

MOQ: 1 set

Delivery Time: 15 days after getting the deposit.

Brand: Zaozhuang NO.1

Product Description

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe

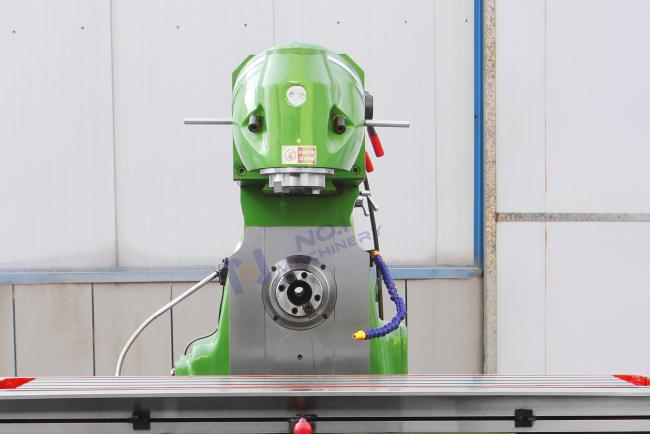

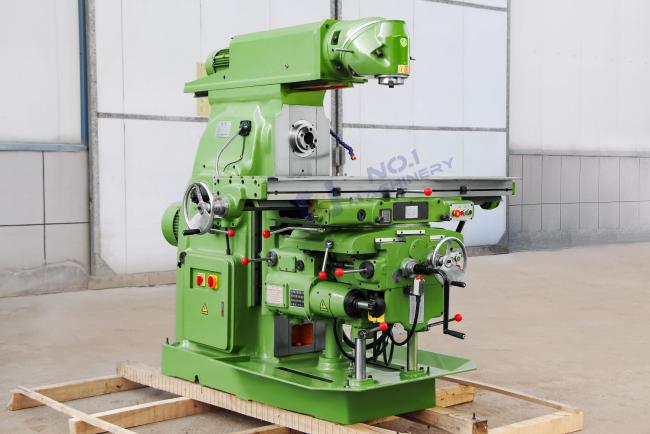

XA6240 Heavy-Duty Universal Milling Machine features a precision swivel head that rotates freely to any spatial orientation, enabling versatile vertical, horizontal and angular milling operations with seamless adaptability. Boasting a rugged, high-rigidity frame and high-power drive system, it is purpose-built for heavy-cut machining of large workpieces, serving as an indispensable core equipment for machinery manufacturing, mold processing and heavy equipment production industries.

standard configuration:

1. Three-axis automatic feed

2. Standing and lying

optional configuration:

1. Three-axis digital display

2. Dividing head

3.Can be changed to CNC

4.Pressure Plate

Product specification:

PARAMETER ITEM	UNIT	XA6232	XA6240
Working desk size	mm	1320x320(1600x320)	1700x400 (2000x400)

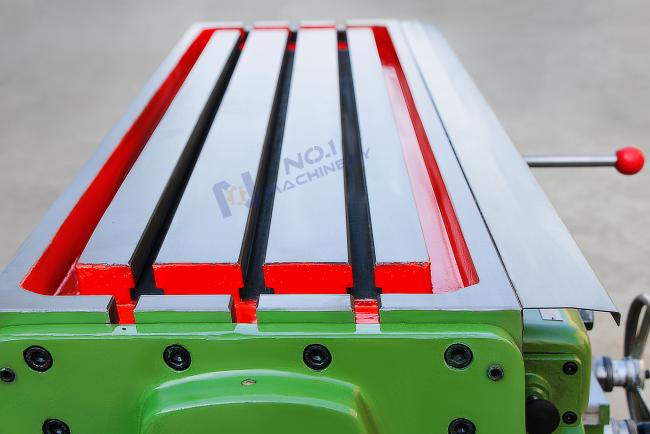

Work table T-slot number / width/spacing	mm	3-18-70	3-18-90
Workbench maximum overload	kg	300	500
X direction (table longitudinal) manual/ maneuver	mm	700 /680( 900 Optional)	900/880( 1100 Optional)
Y direction (slide lateral) manual / maneuver	mm	255/240	315/300
Z direction (lifting table vertical) manual / maneuver	mm	380/360	380/360
Cutting feed rate	mm/min	X. Y:23.5-1180 Z:8-394	X. Y:23.5-1180 Z:8-394
Fast moving speed	mm/min	X:2300 Y:2300 Z:770	X:2300 Y:2300 Z:770
Spindle speed range (V/H)	rpm	V: 35-1600 H: 30-1500	V: 35-1600 H: 30-1500
Spindle speed series (V/H)	steps	V: 11 H: 18	V:11 H:18
Spindle Taper	-	V:ISO40 7:24 H:ISO50 7:24	V:ISO40/50 7:24 H:ISO50 7:24
Worktable maximum turning angle	.	±45°	±45°
Spindle center to table distance	mm	30-350	30-410
Spindle motor power	kw	7.5	11
Dimensions	mm	2294x1770x1665	2560x2130x1800
Machine weight (about)	kg	2650	3850
