TCK50 High-Precision CNC Turning Machine Turning Center Slant Bed CNC Lathe for Sale

Name: TCK50 High-Precision CNC Turning Machine Turning Center Slant Bed CNC Lathe for Sale
Brand: Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.

Price Negotiable

Price: 16500USD

MOQ: 1 set

Delivery Time: 15 days after getting the deposit.

Brand: Zaozhuang NO.1

Product Description

TCK50 High-Precision CNC Turning Machine Turning Center Slant Bed CNC Lathe for Sale

The TCK50 is a high-performance precision CNC lathe featuring an inclined bed and monolithic structure for exceptional rigidity and stability. Equipped with a user-friendly mainstream CNC system, it delivers high-speed, high-precision turning and enables automated machining of complex components. Widely applied in the production of precision parts for the automotive, electronics, and medical device industries, it serves as an excellent solution for enhancing productivity and machining quality.

Standard Configuration:

1. Gsk CNC 988 TA

2. Taiwan 8-station servo Tool turet

A2-6 spindle unit

Taiwan HIWIN screw/rail line

5. 8-inch hydraulic Chuck

6. Hydraulic tailstock

Product Specification:

Name

Unit

TCK50

Maximum rotation diameter on the bed

mm

Φ550

Maximum cutting diameter

mm

Φ520

Processing diameter under the turret

mm

Φ300

Maximum cutting length

mm

500

X-axis travel

mm

260

Z-axis travel

mm

600

X-axis moving speed

mm/min

24000

Z-axis moving speed

mm/min

24000

Handwheel

mm

0.001/0.01/0.1

X, Z feed speed

mm/min

0~5000

X, Z manual feed speed

mm/min

0~1260

X-axis repeat positioning accuracy

mm

0.005

X-axis positioning accuracy

mm

0.006

Z-axis repeat positioning accuracy

mm

0.006

Z Axis positioning accuracy

mm

0.008

Spindle speed

rpm

35-3000

Maximum spindle torque

N.m

48

Spindle nose

A2-6

Spindle through hole diameter

mm

Φ67

Hollow hydraulic chuck through hole diameter

mm

Φ50

Chuck

10 inch 3-jaw

Number of tool holders

12-station

Tool change time

s

0.25

Tool installation size

mm

25×25

Borrowing tool holder installation diameter

mm

Φ32

Tail stock travel

mm

350

Top taper

MT-5#

Main motor power

kw

7.5/11 (4500rpm)

Main motor torque

N.m

48

X-axis feed motor power

kw

2.3

X-axis feed motor torque

N.m

15

Z-axis feed motor power

kw

2.3

Z-axis feed motor torque

N.m

15

Coolant capacity

L

200

Motor type (1HP)

kw

0.18

Installation (length * width * height)

mm

2697/1795/1860

Machine weight

kg

3600

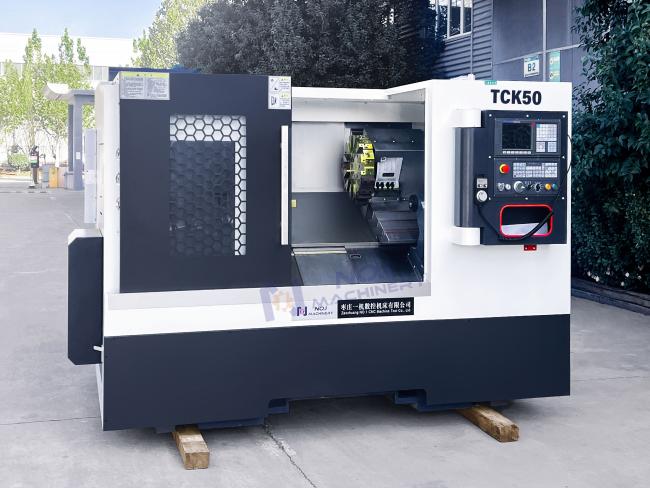

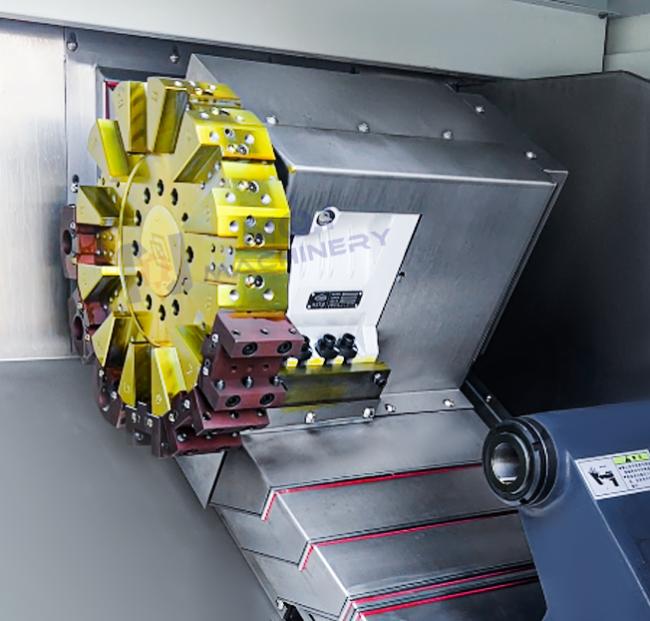

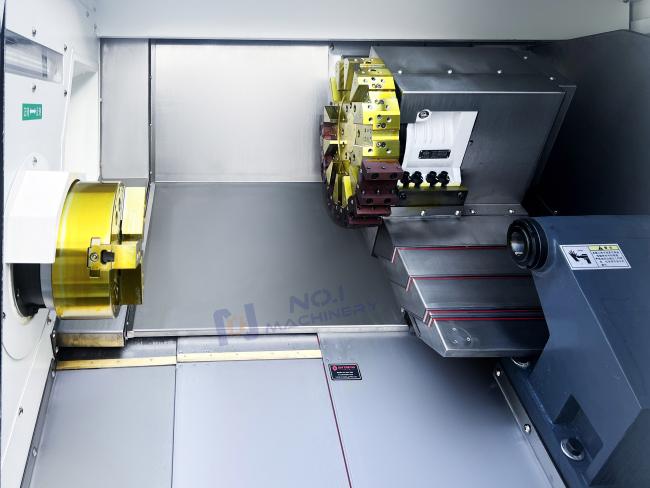

Product Display:
