China Factory High Rigidity GMC3022 Horizontal Gantry Machining Center with Competitive Price

Name: China Factory High Rigidity GMC3022 Horizontal Gantry Machining Center with Competitive Price
Brand: Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.

Price Negotiable

Price: 120000USD

MOQ: 1 set

Delivery Time: 45 days after getting the deposit.

Brand: Zaozhuang NO.1

Product Description

China Factory High Rigidity GMC3022 Horizontal Gantry Machining Center with Competitive Price

Product Description:

The GMC3022 is a high-rigidity, high-precision gantry machining center. It adopts a high-quality cast iron bed and precision roller linear guides, delivering outstanding stability and durability.
Equipped with a high-power motorized spindle and an advanced CNC system, it achieves high-speed and high-precision machining, making it an ideal solution for processing large and complex components in the energy equipment and rail transportation industries.

Standard Configuration:

Syntec 22MA CNC control system
BT50 Taiwan 6000 RPM spindle
Taiwan HIWIN precision ball screws
Taiwan HIWIN 3-axis roller linear guides
Taiwan OKADA 24-disc ATC
Electrical cabinet air cooling exchanger

Detailed Configuration:

spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool magazine:OKADA/AIMACH
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI
coupling:R+W

Product Specification:

Item model

Unit

GMC 3022

Worktable size (width x length)

mm

2000X3000

X-axis travel

mm

3000

Y-axis travel

mm

2200 (sub-stroke 2700)

Z-axis travel

mm

1000

Gantry width

mm

2300

High of gantry

mm

1200

Distance from spindle end to worktable

mm

280-1280
(Optional heightening 180,250,300,430)

Workbench T-slots

-

9-28X200

Spindle specifications

-

BT50-Φ200

Spindle drive mode

ZF moderate

-

Speed 4500r／min Gear Ratio 4:1

ZF deceleration + belt, optional

-

Speed 3500r／minGear Ratio 8:1,2:1

Rapid feed speed

m／min

10

Cutting feed speed

m／min

6

X, Y, Z axis ball screw specification / pitch

-

X:8020,Y:6316,Z:5010

X, Y, Z axis rail specification / slide number

-

X axis:Roller guide rail 55/14 (two rails)；
Y-axis: roller guide Z-55/7; Z axis: rectangular slide rail
(Optional, 5 sliders on Y axis)

X, Y, Z axis servo motor transmission mode and transmission ratio

-

X-axis planetary gear transmission 4:1；
Y-axis planetary gear transmission 3:1；
Z-axis direct drive 1:1

Recommended spindle motor selection

-

22kW Wide Area Motor

X, Y, Z three-phase servo motor recommendation

-

X:50N·m；Y:40N·m；
Z:30N·m(Holding brake)

Size of optical machine (length x width x height)

mm

9750x4740x4100

Workbench load-bearing

t

10

Light machine weight

t

31

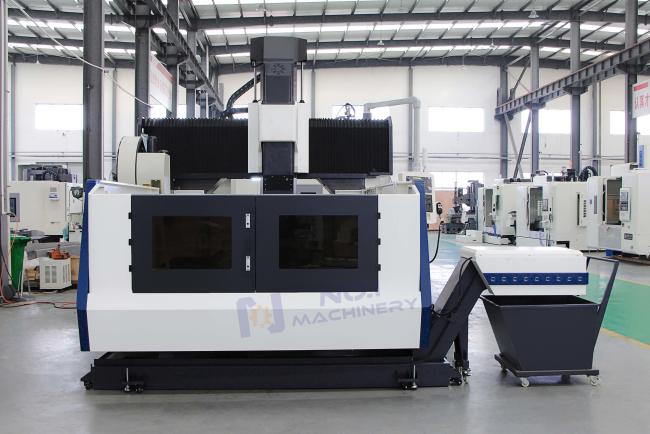

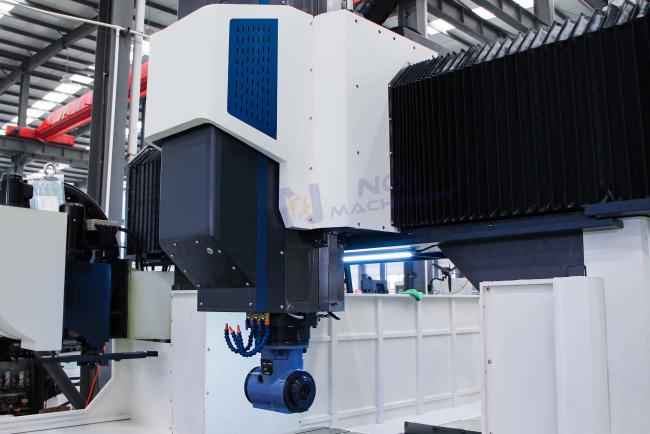

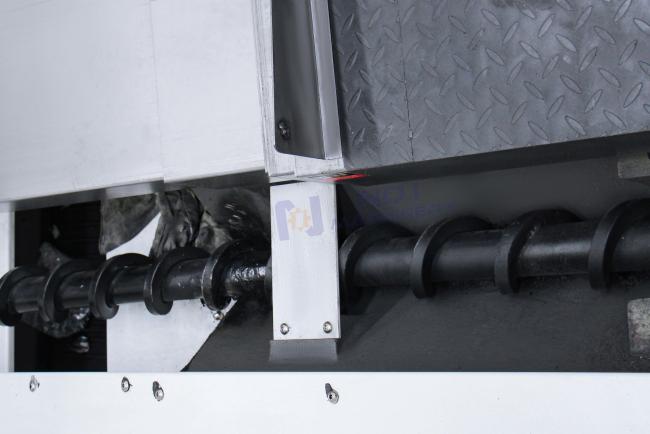

Details Display:
