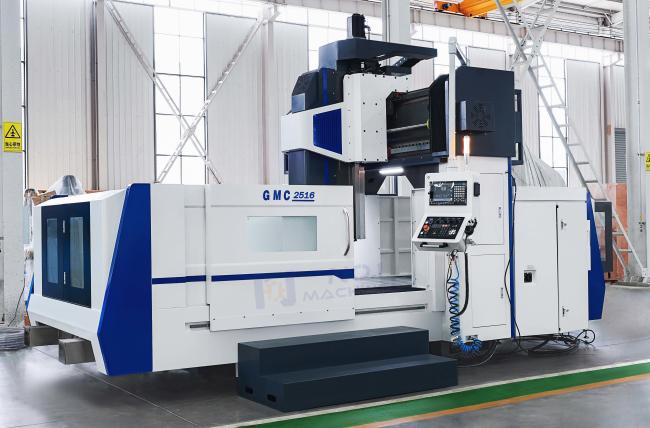

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine

Price Negotiable

Price: 70000USD

MOQ: 1 set

Delivery Time: 45 days after getting the deposit.

Brand: Zaozhuang NO.1

Product Description

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine

Product Description:

The GMC2516 is a high-performance gantry machining center with a stable, rigid bridge-type structure and high-precision linear guides, ensuring excellent machining accuracy and long-term stability.Equipped with a high-power, high-speed spindle and an intelligent CNC system, it performs exceptionally well in the precision machining of large and complex workpieces.It is the ideal equipment for mold making, automotive production, and heavy machinery manufacturing.

Standard Configuration:

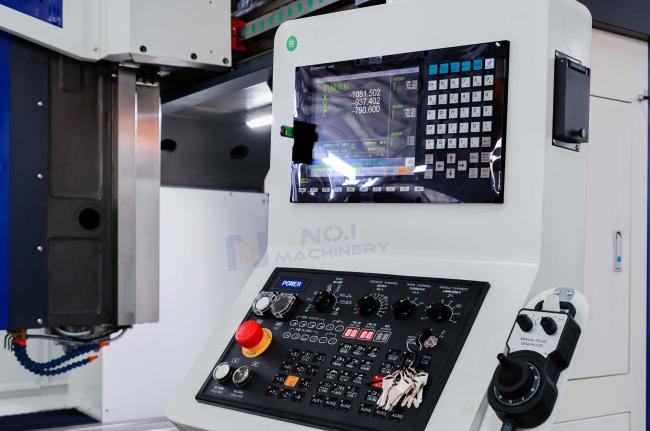

syntec 22ma control  system
Bt50 Taiwan 8000 RPM spindle
Taiwan  hiwin screw
Taiwan hiwin 3 axis roller linear rails
Taiwan OKADA 24 -Disc- atc
Electrical cabinet cold  air exchanger

Detailed Configuration:

spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI

Product Specification:

Item Model

GMC2016

GMC2516

Work table size (width × length) (mm)

1300*2000

1300*2000

Stroke in the moving direction of the table (X-axis mm)

2000

2500

Stroke in the moving direction of the spindle carriage (Y-axis mm)

1650(tool change stroke 1850)

1650(tool change stroke 1850)

Stroke in the up and down movement direction of the spindle (Z axis mm)

800

800

Gantry width (mm)

1660

1660

Gantry is too high (mm)

1100

1100

Distance from spindle end face to work table (mm)

250-1050

250-1050

Table T-slot (number - size x spacing)

7-22×170

7-22×170

Spindle Specifications (Model/Installation Diameter)

BT50/Φ190

BT50/Φ190

Spindle transmission mode

belt

Speed 6000r/min

Speed 6000r/min

The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)

The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)

ZF deceleration + belt (optional)

The speed is 6000r/min and the transmission ratio is 4:1;

The speed is 6000r/min and the transmission ratio is 4:1;

Gear Head (Weimars)

Maximum speed 6000r/min Transmission ratio 4.4:1

Maximum speed 6000r/min Transmission ratio 4.4:1

Rapid traverse feed rate (m/min)

15

15

Cutting feed rate (m/min)

10

10

X, Y, Z axis ball screw specifications/pitch

X: 6310, Y: 5010, Z: 5010

X: 6312, Y: 5010, Z: 5010

X, Y, Z axis guide rail specifications / number of sliders

X axis: roller guide 55/6;

X axis: roller guide 55/8;

Y axis: roller guide 55/4;

Y axis: roller guide 55/4;

Z axis: rectangular slide

Z axis: rectangular slide

X, Y, Z axis servo motor transmission mode and transmission ratio

X, Y, Z axes are directly connected

X, Y, Z axes are directly connected

Spindle motor selection recommendation

22kW wide area motor

22kW wide area motor

X, Y, Z three-phase servo motor recommendation

≥ X: 38N m; Y: 30N m; Z: 30N m (brake)

≥ X: 38N m; Y: 30N m; Z: 30N m (brake)

Optical machine dimensions

5590*3630*3830

6590*3630*3830

(length × width × height) (mm)

Workbench load (t)

4

5

Light machine weight about (t)

16

18

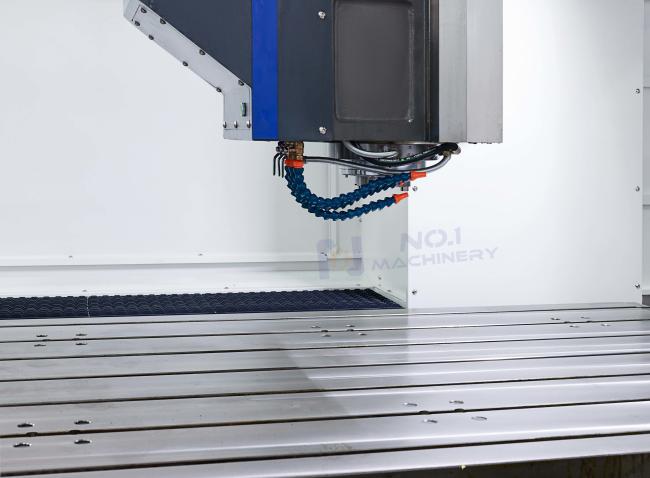

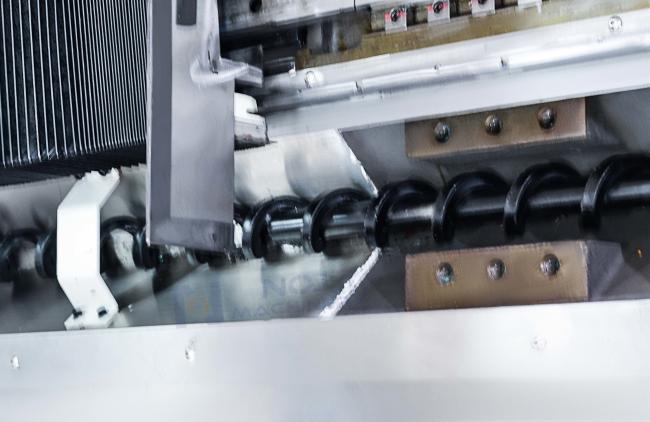

Details Display:
