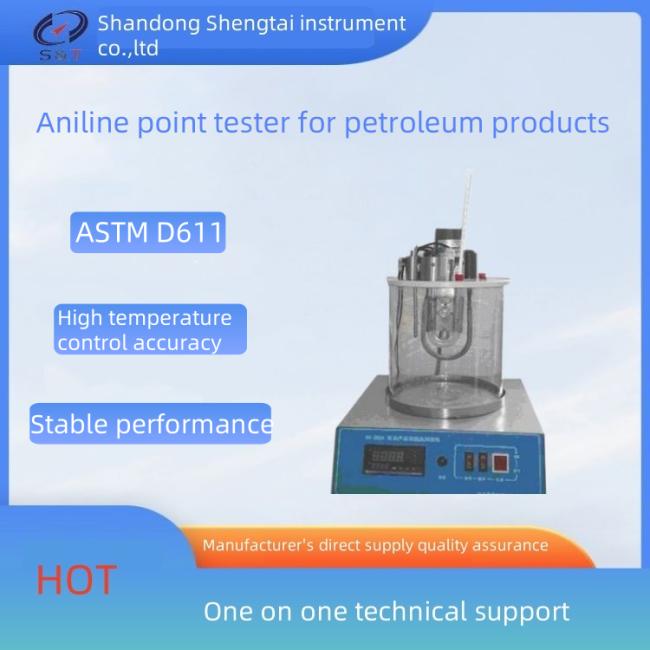

ASTM D611 Aniline Point Tester For Petroleum Products Hydrocarbon Solvents
Aniline Point Tester for Petroleum Products and Hydrocarbon Solvents with Ambient to 200C Temperature Range
SD262A Aniline point tester for petroleum products is designed and manufactured according to the requirements stipulated in the national standard GB/T262 Aniline point tester for petroleum products. It is suitable for the determination of aniline point for light colored petroleum products and dark colored petroleum products.
Petroleum Products Aniline Point Tester
Aniline Point Tester of Petroleum Products and Hydrocarbon Solvents
ASTM D611 Aniline Point Tester
Laboratory GB/T262 Petroleum Products and Hydrocarbon Solvents Aniline Point Tester
Main technical features: aniline point meter oil analysis
1. The design of the instrument fully conforms to the requirements of GB/ T262 standard for the aniline point test of dark petroleum products and light petroleum products.
2. The instrument can measure the aniline point of heavy oil (dark petroleum products) and light oil (light petroleum products).
3, Temperature control system adopts digital display PID temperature control instrument, high temperature control precision, stable and reliable performance, easy to operate.
Technical parameters:
| Temperature Control Range: | Room Temperature to 200ºC |
| Temperature control accuracy: | ≤0.5℃ |
| Motor power | 6W |
| Heating power: | 2KW |
| Stirring speed : | (0~1200)RPM |
| Temperature range | Ambient to 200℃ |
| lighting power supply: | 5V |
| Saltwater tank capacity: | 15L |
| Working power supply: | AC 220V ±10%, 50HZ |
| Dimension | 320*380*490 12kg |
| Packing size | 450*420*550 16kg |
Packing list
| No. | Name | Unit | Quantity | Remark |
| 1 | Main unit | Set | 1 | |
| 2 | Thermometer | Piece | 1 | 25 to 105 ºC, scale division is 0.2 ºC; |
| 3 | Thermometer (2#) | Piece | 1 | 90 to 170 ºC, scale division is 0.2 ºC; |
| 4 | U type tube (For heavy oil) | Piece | 1 | |
| 5 | Metal shield (For heavy oil) | Piece | 1 | |
| 6 | Illumination bulb assembly (For heavy oil) | Piece | 1 | |
| 7 | Seat 2 for test device (For heavy oil) | Piece | 1 | With stirring motor assembly |
| 8 | Glass test tube (For heavy oil and light oil) |
Piece | 2 | Φ25 |
| 9 | Glass casing tube (For light oil) | Piece | 1 | Φ40 |
| 10 | Cork 1# (For light oil) | Piece | 1 | Hole ofΦ25 |
| 11 | Cork 2# (For light oil) | Piece | 1 | With a hole ofΦ9 and hole for stirring rod |
| 12 | Cork 3# | Piece | 1 | |
| 13 | Stirring rod (For light oil) | Piece | 1 | |
| 14 | Silica gel stopper (8#) | Piece | 1 | |
| 15 | Seat 1 for testing device (For light oil) | Piece | 1 | |
| 16 | Stopping ring for thermometer (2#) | Piece | 2 | |
| 17 | Fuse (Φ5*20,15A) | Piece | 2 | |
| 18 | Power supply(250V 10A) | Piece | 1 |
(1) Operation Manual 1 piece
(2) Repair Guarantee 1 piece
(3) Quality Certificate 1 piece
