SH102F Petroleum Crude Oil Product Density Tester for Accurate Density Measurements in Compliance with Industry Standards
SH102F Petroleum Crude Oil Product Density Tester for Accurate Density Measurements in Compliance with Industry Standards

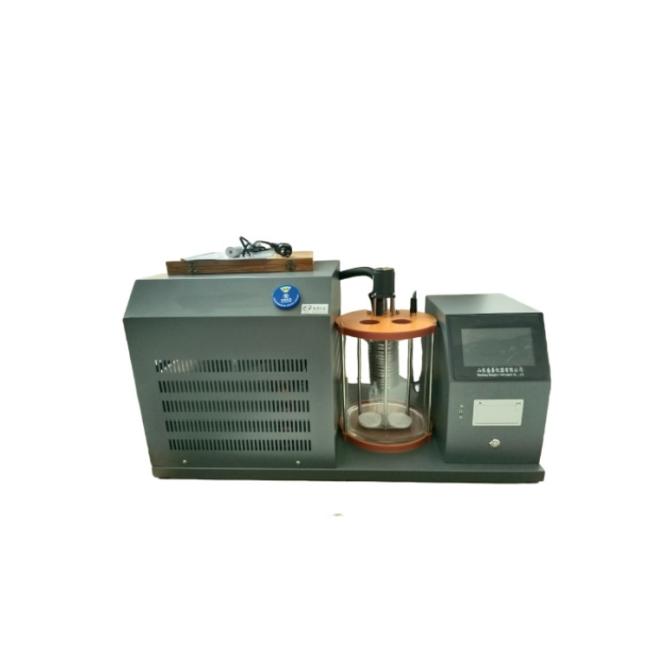

SH102F Petroleum Crude Oil Product Density Tester This instrument is designed and manufactured in accordance with the Chinese standard GB/T 1884 "Determination of Density of Petroleum and Liquid Petroleum Products (Densimeter Method)" and the requirements specified in ASTM D1298 and GB/T2 281-2008 for the density of coking oil products. It also complies with GB36170-2018. Crude oil is a density tester for liquid petroleum products developed by our company and is suitable for measuring the density of crude oil and liquid petroleum products. At the same time, it can also measure the density of chemical products, in accordance with GB/T4472
Technical performance
- Temperature sensor: industrial high-precision PT100 sensor
- Featuring a large color LCD screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard,
- Printing interface: Input density values to automatically print petroleum density values.
- Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage
- Data storage: USB flash drive data export function
- Printer: Equipped with a micro printer
Product Paramenters
| Tech Indicator | Description |
| Power |
AC220V±10% 50Hz (Can be changed to your country request) |
| Tube capacity | 500ml |
| Temperature measurement range | 0-96℃ or (customized -60℃-80℃); |
| Temperature Accuracy | ±0.1℃ |
| Power consumption | 2000W |
| Standard | GB/T1884 ASTM D1298 DIN 51757 |
| Instrument size:650*380*550mm weight: 42kg | |
| Packaging size: 720*450*580mm Packaging weight :48kg | |
| Refrigeration mode | Compressor refrigeration |
| Stirring device | Electric stirring device |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Water bath | 1 | piece | |
| 3 | Water bath cover assembly | 1 | set | 2 graduated cylinders can be placed |
| 4 | Power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | Measuring cylinder500ml | 2 | piece | |
| 7 | Instruction manual | 1 | copy | |
| 8 | Packing list | 1 | copy | |
| 9 | Warranty card | 1 | copy |
