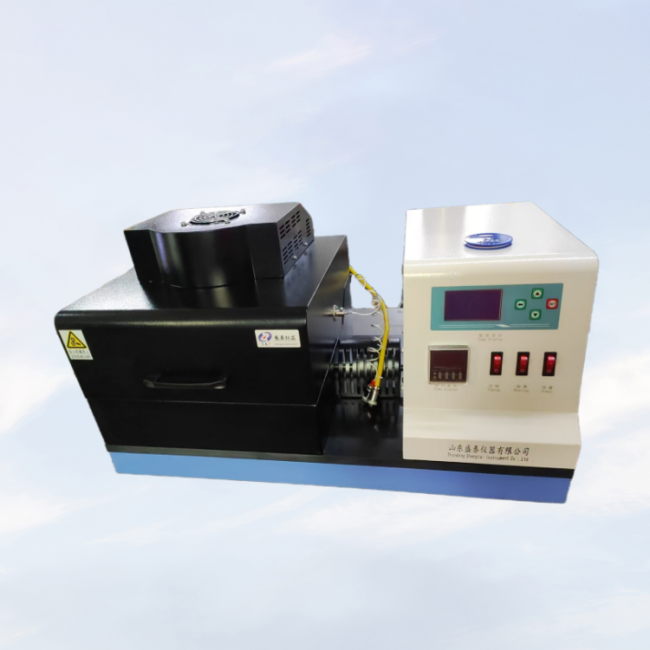

SH129 grease drum stability instrument is applicable to standard ASTM D1831 SH/T0122, the operation of the instrument: with a certain amount of samples, at room temperature, after working on the drum test machine for 2h, determine the work of grease before and after the test coning degree.

The instrument is suitable for measuring the consistency change of grease after working on the drum tester, and is used to judge the mechanical shearing stability of grease.

ASTM D1831 Lubricating Grease Roll Stability Tester

ASTM D1831 Determination of Grease Roller Stability Roll Stability Tester

Newly ASTM D1831 Grease Roll Stability Testing Equipment

ASTM D1831 Laboratory Equipment Grease Roller Stability Tester

Technical parameters

1, applicable to standard ASTM D1831 SH/T0122

2. Heating method Heating by electric heating ring

3, timing mode digital timer

4, the temperature control range of 21 ~ 38℃

5, motor speed 155 ~ 180r/min

6. Unit of Work 2 units

7. The power of the whole machine is 1000W

8, working power supply AC220V/50HZ

performance characteristics

1, stainless steel roller Φ 90 x 180 mm 5 kg;

2. The idling wheel has a positioning ring to control the normal operation of the drum;

3, the lower part is equipped with a driving motor, so that the speed is maintained in 155 ~ 180r/min;

4. Belt drive drum;

Microcomputer temperature controller, digital display, precision ±5℃ PT100 sensor;

6, digital timer, record working time, with wind alarm;

7, can test two rollers at the same time;

8, the instrument box cover oil a thermometer hole, can be temperature correction;
