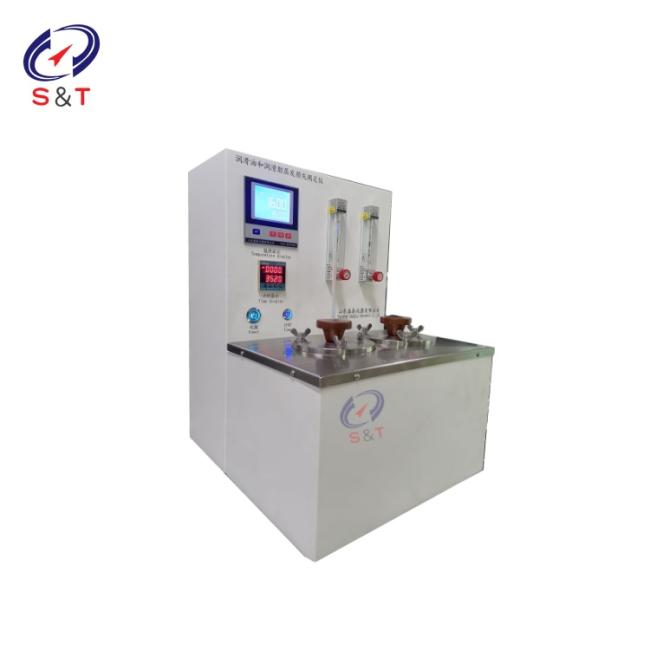

SY7325A Lubricating Oil and Lubricating Grease Evaporation Loss Tester is designed and manufactured according to GB/T7325 "Lubricating Oil and Lubricating Grease Evaporation Loss Determination Method", and the evaporation loss tester needs to meet SH/T 0661 "Lubricating Grease Wide Temperature Range Evaporation Loss Determination Method". Simultaneously conforming to ASTM D2595, suitable for determining the evaporation loss of lubricating oil or grease at any temperature between 93 and 316 ℃.

Product features:

It consists of metal bath, temperature control meter, air pump, flow meter, temperature control circuit and other parts. Use an air pump and flow meter to introduce air into the sample in the constant temperature bath evaporation test device at a quantitative flow rate. After a specified time, measure the evaporation loss of the sample.

Technical indicators:

● Input voltage: AC220V ± 10% 50Hz

● Input power: 2KW

● Number of holes: 2 holes

● Display accuracy: ± 0.1 ℃

● Heating method: metal bath

● Temperature control range: Room temperature~350 ℃

● Timing device: 0-100 hours

● Mixing motor: 25W

● Size: 350 * 400 * 500 mm Weight: 24kg

● Packaging size: 475 * 425 * 580 mm Weight: 29kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list
