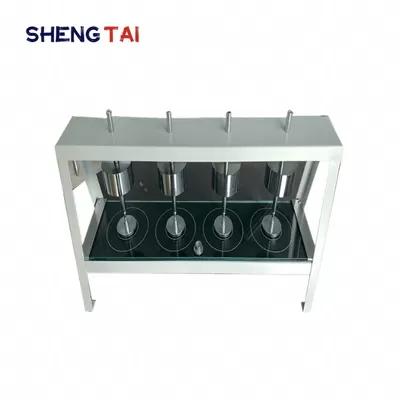

SY392 grease pressure oil separator is to use the pressure oil separator from the grease pressure out
SY392 grease pressure oil separator is designed and manufactured according to the standard GB/T392.
This instrument is to use the pressure oil separator from the grease pressure out, and then determine the amount of oil pressure out.
The required ambient temperature is 15 ~ 25℃.
Technical parameters
1 connecting rod: piston and hammer processing, plus Φ8 steel ball, after strict weighing, the total weight in the standard range (1000g + 10g).
2. The studio temperature is required to be at T =15℃ ~ 25℃.
3. Each 4 connecting rods and heavy hammer device.
Performance characteristics
Four machine, working environment temperature T =15-25℃, weight of 1000g±10g.
Size: 480mm * 180mm * 320mm Weight: 15kg
packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Bracket | set | 1 | |
| 2 | Fat container | piece | 4 | |
| 3 | Piston | piece | 4 | |
| 4 | 8MM steel ball | capsule | 6 | |
| 5 | connecting rod | piece | 4 | |
| 6 | Heavy hammer | piece | 4 | |
| 7 | instructions | copy | 1 | |
| 8 | Packing list | copy | 1 | |
| 9 | Certificate warranty card | copy | 1 |
