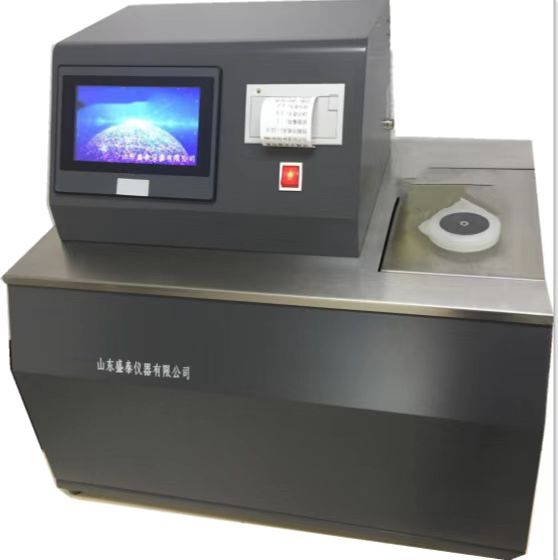

SH113C fully automatic pour point testerGB/T3535 National Standard Requirements ASTM D97 single hole
SH113C Automatic Pour Point Tester in line with GB/T3535 and ASTM D97 national standard requirements, using a number of single-chip microcomputer composed of the main control components, automatic refrigeration, automatic constant temperature, automatic detection, and automatic print output results.
Adopt the two-stage refrigeration system, make the refrigeration range +30℃ ~ -70℃, adapt to test pour point higher than -35℃ sample detection, because of the use of Germany Danfoss imported compressor to work for a long time stable and reliable, not easy to damage.
Adopt high performance infrared detection technology, high detection sensitivity, strong reliability.
ASTM D97 pour point tester
ASTM D97 Automatic Pour Point tester for gear oil hydraulic oil turbine oil
Automatic Oil Pour Point Measurement Meter/ ASTM D97 Pour Point Tester
Automatic ASTM D97 Pour Point Tester
Automatic Petroleum Products Pour Point Tester
Lubricant Oil Lab Testers Pour Point Testing Equipment By ASTM D97
-70C low temperature ASTM D97 pour point tester
| Testing Range | +30℃--below zero 70℃ |
| Accuracy | ±0.1℃ |
| Standard | GB/T3535 ASTM D97 |
| Method of Refrigeration | refrigeration by compressor engine |
| Power | 1500W |
| Voltage | AC220V 50HZ |
| Working Temperature | Temperature≤40℃ Humidity≤80% |
| Instrument size: 650 * 480 * 620mm Weight: about 75KG | |
| Package size: 690 * 520 * 660 Package weight: 80kg | |
| display | 7-inch TFT color LCD display |
| detection method: | imported photoelectric switch detection |
| Out put: | U disk output function |
Product features:
●Upgraded to 7-inch TFT color LCD display;
●Refrigeration mode: fully enclosed and efficient refrigeration compressor.
●Cold trap for test: 1
●Cold Range:+30℃--below zero 70℃
●Pour point range:+30℃--below zero 55℃
●detection method: imported photoelectric switch detection
●after the upgrade can store historical data, convenient query;
At the same time can be equipped with U disk output function.
●standard micro printer automatic measurement automatic printing
● After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.
●with date password setting function.
●tandard micro printer automatic measurement automatic thermal printing
● with TCP network transmission function( optional )
● Can upload and connect to LIMS system( optional )
● Memory can be expanded to 16G
650*480*620mm
automatic pour point tester for turbine oil standard ASTM D97 Petroleum oil pour point tester
Packing list of automatic pour point meter
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Pour point glass tube | 1 | piece | |
| 3 | Pour point sensor | 1 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | instruction manual | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
