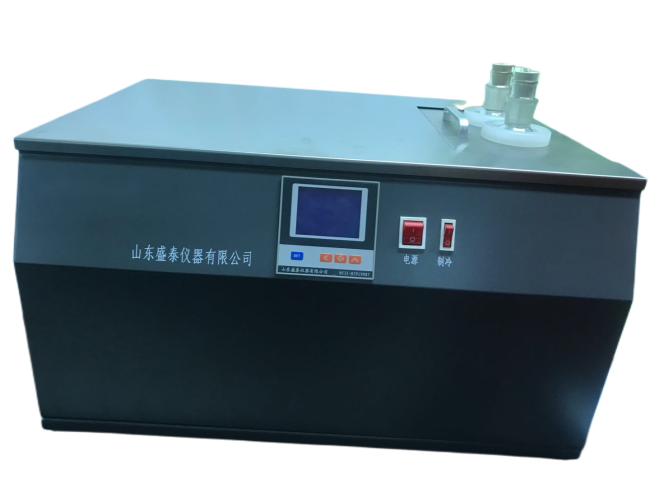

Heavy Oil Crude Oil Dark Petroleum SH113B-N Pour Point Tester

Heavy oil, crude oil, dark petroleum SH113B-N petroleum pour point tester (metal bath)

SH113B pour point and pour point tester (metal bath) is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T3535 Petroleum pour point determination method, the People's Republic of China standard GB/T510 Petroleum pour point determination method, Petroleum cloud point determination method (GB 6986-1986) and SH/T0248. It is applicable to the determination of pour point, pour point, cloud point and cold filtration point of petroleum products according to the methods specified in the above standards.

The condensation point is the highest temperature of the oil when the test oil is put into the test tube and cooled to the liquid level without moving under the specified test conditions, expressed in ℃.

Pour point refers to the lowest temperature at which the cooled sample can flow under the specified test conditions; Expressed in ℃.

Cold filtration point refers to the maximum temperature when the oil passes through the filter less than 20ml per minute under specified conditions (i.e. the lowest ambient temperature used at the flow point)

Cloud point refers to the temperature of clear and clean liquid petroleum products that are foggy or turbid due to wax crystallization under specified test conditions, expressed in ℃

Performance characteristics:

1.Adopts a new type compressor, advanced temperature controller and special refrigeration bath.

2.The display mode adopts small liquid crystal display, and the temperature control stability is good.

3.2 sets of test can be done at the same time,2 holes for single tank, and the cooling speed is fast.

4.Include solidifying point tube .

5.refrigeration bath: metal bath

Parameter

SH113B-N petroleum products manual solidification point tester (metal bath) is designed and manufactured in accordance with the standard GB / T510 of the People's Republic of China and ASTM D97 , and is suitable for the determination of petroleum products according to the methods specified in the above standards.

Dark color Petroleum Low Temperature Solidification Point Tester

Machine Solidifying Point Tester

Dark color Petroleum Low Temperature Solidification Point Tester Machine Solidifying Point Tester

Technical Parameters:

1.Implement standard GB/T510,ASTM D97,

2.Range: room temperature ~ -70 ℃;

3.Accuracy:±0.1℃

4.Display: digital tube display;

5.Test mode: automatic temperature control, manual test;

6.Temperature sensor: PT100 platinum resistance;

7.Test hole:Two holes.

8.Refrigeration mode: compressor refrigeration;

9.Power: 1500W;

10.Power supply voltage: AC220V 50Hz;

11.Applicable environment: temperature 40 ℃ or less moisture 80% or less

12.Instrument weight: about 70KG.

IV.Precautions And Equipment Maintenance

1. The instrument shall be used in a non-corrosive environment.

2. When changing samples, test tube shall be cleaned.

3. The thermometer should not be greasy, so as not to affect the detection sensitivity.

4. During the test, do not put your hands in the freezer to avoid frostbite

Details of petroleum product freezing point tester

SH113B-Q manual pour point meter/tester (metal bath) is designed and manufactured in accordance with the standard GB / T3535 of the People's Republic of China, and ,ASTM D97 ,ASTM D5853,and is suitable for the determination of petroleum products according to the methods specified in the above standards.

Technical Parameters:

1.Implement standard GB/T3535 ,ASTM D97,

2.Range: room temperature ~ -70 ℃;

3.Accuracy:±0.1℃

4.Display: digital tube display;

5.Test mode: automatic temperature control, manual test;

6.Temperature sensor: PT100 platinum resistance;

7.Test hole:Two holes.

8.Refrigeration mode: compressor refrigeration;

9.Power: 1500W;

10.Power supply voltage: AC220V 50Hz;

11.Applicable environment: temperature 40 ℃ or less moisture 80% or less

12.Instrument weight: about 70KG.

IV. Precautions And Equipment Maintenance

1. The instrument shall be used in a non-corrosive environment.

2. When changing samples, test tube shall be cleaned.

3. The thermometer should not be greasy, so as not to affect the detection sensitivity.

4. During the test, do not put your hands in the freezer to avoid frostbite

Details of petroleum product pour point tester
