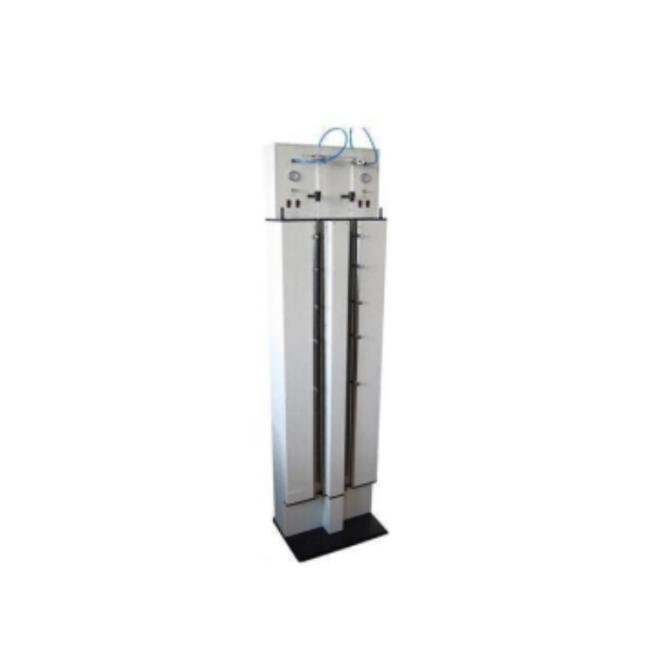

Petroleum Products Hydrocarbon Tester ASTM D1319 by Fluorescent Indicator Adsorption Method SD11132
SD11132 Liquid petroleum products hydrocarbon meter is in accordance with the law of the People's Republic of China standard GB/T 11132-2002 "hydrocarbon liquid petroleum products determination method (fluorescent indicator adsorption method)" the requirements stipulated in the design and manufacture, apply to approach, as stipulated in the standard GB/T 11132 main hydrocarbon in liquid petroleum products with fluorescent indicator displayed on the silica gel adsorption column, calculate the volume percentage, as the quality of the fuel oil such as engine fuel, aviation fuel measuring indicators.
This instrument is a special instrument for the determination of the volume fraction of aromatics, olefin and saturated hydrocarbons in petroleum fractions.
ASTM D1319 Hydrocarbon Measuring Instrument for Liquid Petroleum Products
Liquid Petroleum Products Hydrocarbon Tester ASTM D1319
ASTM D1319 Hydrocarbon Tester for Liquid Petroleum Products
I. Main technical features
1, the instrument adopts the integrated vertical structure design, without installation, directly placed to the appropriate indoor position can be used.
2, the instrument is composed of gas circuit system, vibration part, scale and scale indicator, system lighting, ultraviolet detection and other components, from the silicone filling, vibration, sampling until the reading test results at one go.
3. Direct use of two imported precision inner diameter glass tube adsorption column (standard wall glass tube adsorption column is no longer matched), more convenient for users to use.
II. Main technical parameters and indicators
| Power supply voltage |
AC220V±5%;50 hz.
|
| Pressure regulating range of pressure reducing valve | 0 ~ 400KPa |
| electric oscillator | two separate control |
| UV light source tube | length 1220mm, wavelength 365±5nm; |
| lighting | 1220mm long, power 40W |
| Relative humidity | < 85% |
| Ambient temperature | 5 ~ 35℃ |
| Gas supply method |
nitrogen cylinder (or air compressor, compressed air cylinder);
|
| Package size: 1850mm x 450mm x 450mm ( long x wide x high ) Weight 85kg | |
III. Standard accessories
| No | Item | Unit | Qty | Remarks |
| 1 | Precision inner diameter adsorption column | Piece | 2 | |
| 2 | Imported silica gel (500g) | Bottle | 1 | |
| 3 | Imported fluorescent indicator (4g) | Bottle | 1 | |
| 4 | 6mm intake pipe(intake pipe with cylinder connection) | Set | 1 | |
| 5 | Glass grinding plug(with trachea) | Set | 2 | |
| 6 | Glass flow export | Piece | 2 | |
| 7 | Grinding mouth clip (28, large) | Piece | 2 | |
| 8 | Grinding mouth clip (12, small) | Piece | 2 | |
| 9 | Indicate that the dose spoon | Piece | 1 | |
| 10 | Special needle used for cleaning | Piece | 1 | When used for washing |
| 11 | 500ml waste liquid bottle(with rubber stopper and PU tube) | Set | 1 | When used for washing |
| 12 | Plastic measuring cup (250ml) | Piece | 1 | When used for washing |
| 13 | Magnetic pointer | Piece | 8 | Placed on both sides of the scale |
| 14 | Magnetic fixed base | Piece | 2 | When the vibration place the magnetic fixed base in the bottom of the absorption column |
| 15 | Fuse (10A, Ф5 × 20) | Piece | 2 | Spare parts |
| 16 | Purple light tube, 40W, 365nm wavelength | Piece | 1 | Spare parts, placed inside the instrument |
