ASTM D445 SH112G Fully Auto Kinematic Viscosity Tester For Oil Polymer Dilute Solutions

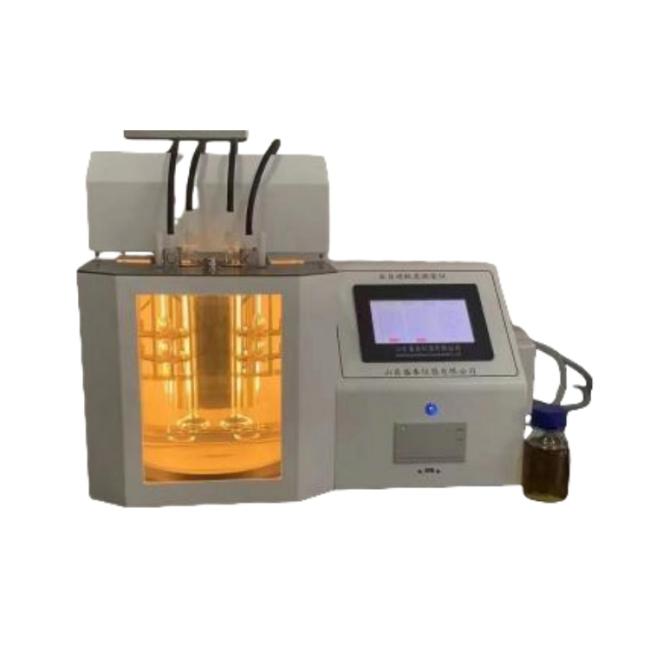

SH112G Automatic Ubbelohde kinematic viscometer
SH112G Ubbelohde kinematic viscosity tester is in accordance with GB/T265 and GB/T1632-93 requirements, for oil and polymer dilute solution of kinematic viscosity, viscosity and viscosity of the test equipment, widely used in the pharmacopeia, petroleum, chemical, scientific research, measurement and other departments.
The working process of the instrument includes constant temperature, detection, calculation, viscosity tube cleaning, drying and report sheet printing.
ASTM D445 Automatic Kinematic Viscometer with Glass Capillary
Automatic Viscometer for Testing Kinematic Viscosity of Oil
Intrinsic viscosity tester
Polyethylene and polypropylene dilute solution viscosity tester
Instrument features:
1. The display adopts the original imported 7.0 inch 800×480 pixel real color display;
The keyboard uses a human body sensing touch screen.
Full Chinese operation interface, display delicate intuitive generous, easy to control, touch freely.
2, can store historical data, and equipped with U disk export function.
3. The printer adopts miniature embedded thermal printer, which makes the printing quieter, faster and clearer
4, Temperature measurement and control using the original imported PT100 platinum resistance temperature sensor, high precision AD converter, excellent linear mathematical model, control algorithm, make the temperature measurement and control more fast, accurate and stable.
5, photoelectric detection circuit, detection fast and accurate.
6, black viscometer (specifications to be selected by the user)
Main technical indicators
| Range | room temperature ~ 100℃; |
| Temperature control precision |
±0.1℃
|
| Reproducibility | ≤ 0.01s Reproducibility: ≤ 0.02s |
| Basic parameters | Heating speed: in line with GB/T265 standard; |
| Detection method | photoelectric detection. |
| Timing range |
0~9999.9s
|
| Timing accuracy |
±0.1s
|
| Ubbelohde viscosity measurement range: | 0.6-1000mm2/s (other ranges can be customized) |
| Power consumption | 2000W |
| Dimensions | 450*380*550 |
| Instrument weight |
32kg
|
| Power supply |
AC 220V±10%, 50Hz
|
| Storage | 199 sets of historical data can be stored for easy query; |
| Result output | at the same time can be equipped with U disk output function, output to the PC for long-term storage |
| Output format |
The output format of the result USB flash disk is CSV or EXCEL.
|
| Data extension |
laser printer interface, can be linked to HP1108 laser printer (optional).
|
| Remote upgrade |
with TCP network transmission function, can be later software remote upgrade
|
| Data protection | with date password setting function. |
| Data management | can be connected to LIMIS system |
| Data memory | microcomputer instrument memory can be expanded to 16G |
| Standard printing |
standard micro printer automatic measurement automatic thermal printing
|
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Full-automatic viscosity tester | 1 | set | |
| 2 | Electric aspirator | 1 | set | |
| 3 | Special viscosity tube | 4 | piece | Comply with GB/T11137 |
| 4 | Sample injector | 1 | piece | |
| 5 |
Printing paper
|
2 | piece | |
| 6 | Certificate | 1 | copy | |
| 7 | Instructions | 1 | copy |
