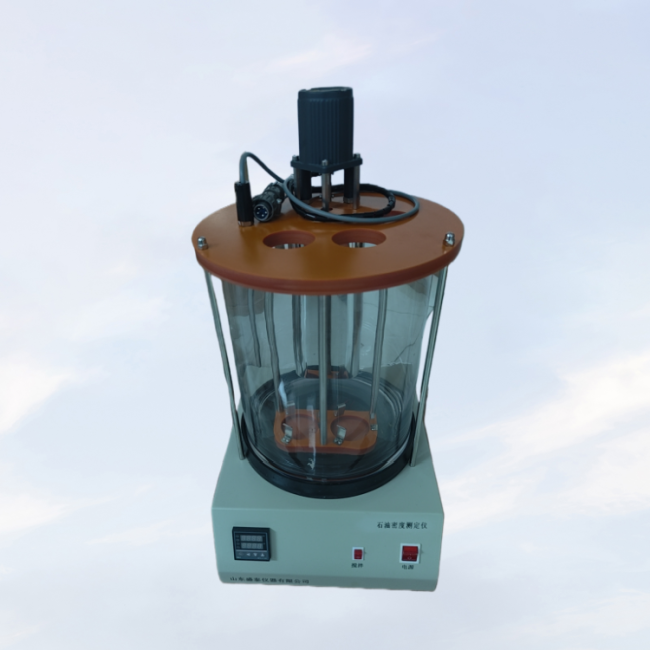

# ASTM D1298 Density Tester for Crude and Liquid Petroleum Products SH102 (Hydrometer Method)
The SH102 petroleum density tester is designed and manufactured in full compliance with Chinese national standard **GB/T 1884: Petroleum and liquid petroleum products — Determination of density (Hydrometer method)**. Developed by our company, this instrument is specially used for measuring the density of crude oil and liquid petroleum products.
**Standards complied with**:
GB/T 1884, ISO 3675, ASTM D1298, DIN 51757, JIS K 2249, IP 160
**Alternative product names**:
- ASTM D1298 Density, Relative Density and API Hydrometer Apparatus
- ASTM D1298 Petroleum Products Density Tester
- ASTM D1298 Crude Oil Hydrometer Tester
- ASTM D1298 Density Tester for Crude and Liquid Petroleum Products
## I. Main Technical Features
1. The instrument features an integrated structure with an ergonomically designed control panel and soft-touch keys. It has a compact, modern structure, comfortable operation and an elegant appearance.
2. Equipped with a digital-display temperature controller, it provides fast temperature control, quick response, low overshoot, and a temperature control accuracy of **±0.2 °C**.
3. The unit uses a thick glass bath tank and an electric stirring system, ensuring clear sample observation and uniform temperature distribution throughout the bath.
| Power supply | AC(220±10%)V,50Hz |
| Tube cylinder | 500ml |
| Heating power | 700W |
| Temperature controller |
(1) Range: Ambient to 100℃ (2) Accuracy: ±0.1℃ |
| Thermometer | Mercury-in-glass thermometer. Scale division is 0.2℃ |
| Measuring hole number: | 2 holes |
| 10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm | |
| the bath volume | Ф 250 x 300 mm. |
| Overall dimension: 320 * 380 * 530mm weight;12kg | |
| Cooler size: 330*330*350mm weight:10kg | |
Packing List
| S/N | Name | Quantity | Unit | Note |
| 1 | Host | 1 | set | |
| 2 | Water bath crock | 1 | piece | |
| 3 | Bath cover assembly | 1 | set | 2 measuring cylinders can be placed |
| 4 | Cryogenic refrigerating plant | 1 | set | Compressor refrigeration |
| 5 | Control cable | 1 | piece | |
| 6 | fuse tube | 1 | piece | |
| 7 | Measuring cylinder 500 ml | 2 | piece | |
| 8 | Operating instruction | 1 | copy | |
| 9 | packing list | 1 | copy | |
| 10 | Certificate of conformity warranty card | 1 | copy |
10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm
