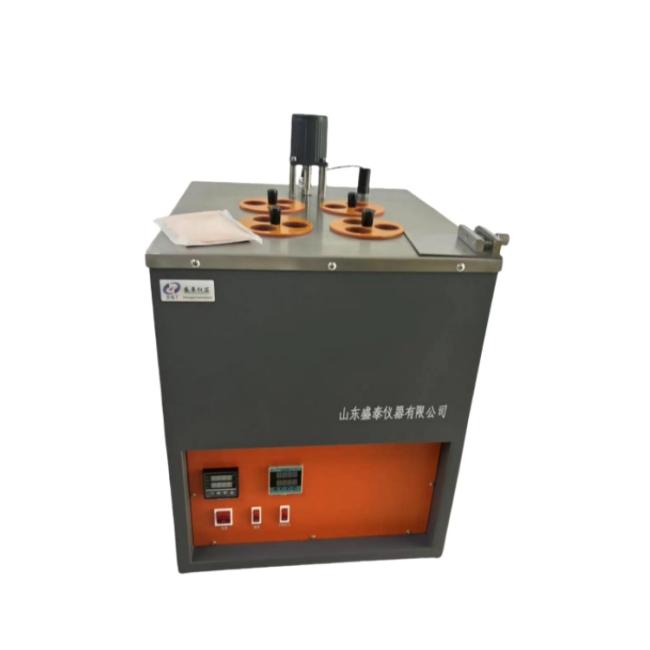

ASTMD130 SD5096 Copper Strip Corrosion Test Apparatus For Petroleum Products
The SD5096 Petroleum Products Copper Corrosion Tester is designed and manufactured in accordance with China national standard GB/T 5096, which is equivalent to ASTM D130 petroleum product copper corrosion test method.
It is used to evaluate the copper corrosion degree of various petroleum products including aviation gasoline, aviation turbine fuel, motor gasoline, tractor fuel, cleaning solvent, kerosene, distillate fuel and lubricating oil in line with standard test methods.
Standard Product Keywords
Petroleum Products Copper Strip Corrosion Tester
Oil Copper Corrosion Testing Apparatus
ASTM D130 Compliant Copper Strip Tarnish Tester
Turbine Oil Copper Corrosion Detector
Copper Strip Corrosion Color Comparison Board
LPG Bomb Type Copper Corrosion Degree Analyzer
I. Main technical features
1. Adopt digital temperature controller, heater and electric stirrer to form a constant temperature bath, and the temperature in the bath is uniform;
With a timer, used for sample test control time setting and automatic timing, when it will also alarm prompts.
- The instrument has 4 sample test holes.
II. Main technical specifications
| Power supply: | AC(220±10%)V, 50Hz |
| Temperature sensor: | Pt100 |
| Standard | ASTM D130 and GB/T5096,ISO2160 and IP154 |
| Temperature range: | (room temp~200)℃, set at will. |
| Temperature control accuracy: | ±0.1℃ |
| Temperature display mode: | LED |
| Temperature control heating power: | 600W |
| . Auxiliary heating power: | 1000W |
| Time controlling range: | 0.01 seconds to 99 hours and 99 minutes; Any setting |
| Holes | 4 |
| Time display: | LED |
| Sample testing positions: | Four positions |
| Ambient temperature: | Room temperature~35 ℃ |
| Relative humidity: | ≤ 85% |
| Maximum power consumption: | 2100 W |
| Instrument size: 380 * 450 * 580mm weight: about 23kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
|
|
Host | 1 | set | |
|
|
Test tube bracket | 2 | piece | |
|
|
Copper strip | 6 | piece | |
|
|
test tube | 6 | piece | |
|
|
Test bomb | 2 | piece | |
|
|
Observation tube | 1 | piece | |
|
|
Color comparison board imported | 1 | piece | |
|
|
power cord | 1 | piece | |
|
|
Fuse tube | 1 | piece | 10A |
|
|
instruction manual | 1 | copy | |
|
|
Packing list | 1 | copy | |
|
|
Certificate warranty card | 1 | copy |
Provided by the customer: heating medium sandpaper grinder
