Solar Panel Cleaning Brush with Dual Disc Five Petal Brush Head for Safe Photovoltaic Panel Maintenance and Dust Removal

Price Negotiable
Price: Negotiable
MOQ: 1 Piece
Delivery Time: 10-20 Days( Depending on the Order Size and Requirements)
Brand: Rhino Stone Tech
Product Description

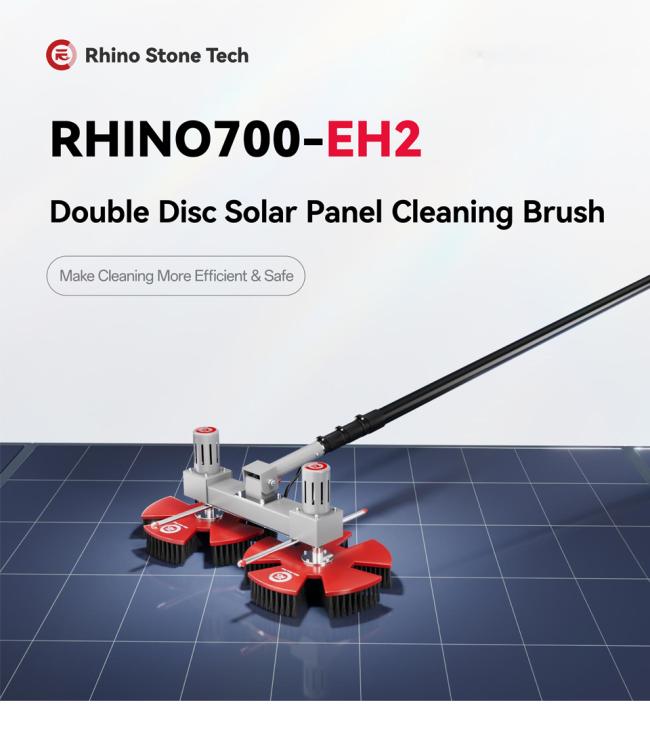

RHINO700-EH2 Dual-Disc PV Cleaning Brush
Boasting a unique five-petal brush head structure, this PV cleaning tool adheres to the core principle of high-efficiency operation, safe usage, and maximum care for photovoltaic panels. Its brush assembly, which can rotate bidirectionally and is fitted with anti-static nylon bristles, is capable of rapidly removing tenacious dust and accumulated grime from panel surfaces, leaving no scratches or damage on the glass. Made with a high-toughness, elastic and anti-static carbon fiber telescopic rod, the device not only greatly eases the physical strain on operators but also enhances its overall safety, service life and structural stability. It is recognized as a premium professional solution for large-scale photovoltaic panel cleaning and maintenance work.
6 Core Advantages
1. Unique Five-Petal Brush Structure
The innovative integrated debris removal channels allow for continuous discharge of impurities, which effectively avoids secondary pollution on PV panels and substantially boosts cleaning efficiency.
2. Balanced Dual-Motor Drive System
Two separate brushless motors work together to minimize operational resistance, ensuring the dual discs rotate stably and synchronously, thus offering more convenient and steady control for users.
3. Brush Head with Wide-Angle Adjustment
The dual-disc brush head can be flexibly adjusted to an angle of up to 90 degrees, which expands the effective cleaning range and enables thorough cleaning of the edges and corners of PV arrays.
4. Panel-Protective Dual-Cleaning Modes
Tailor-made resilient polymer bristles combine strong dirt-removing power with gentle contact, supporting both dry and wet cleaning methods to fully protect PV panels from abrasion and surface harm.
5. Advanced Carbon Fiber Telescopic Pole
The high-grade carbon fiber pole exhibits excellent structural strength, bending resistance, anti-static property and corrosion resistance. Equipped with aluminum locking components, it ensures secure fixation and long-lasting durability.
6. Universal Application Scenarios
As an integrated all-in-one maintenance tool, it is well-suited for a variety of installation environments and working conditions, fully utilizing its core technical advantages in all kinds of PV cleaning projects.

Product Name Double Disc Solar Cleaning Brush RHINO700-EH2
Parameter Item Product Model
Plug-in Version Lithium Battery Version Dual-use Version
Power Supply AC95V~264V;DC24V Lithium Battery  AC95V~264V;DC24V
or Lithium Battery
Motor Type Brushless Motor
Motor Speed 360RPM
Motor Voltage DC 24V
Telescopic Rod Material Carbon Fiber Aluminum Alloy
Telescopic Rod Wall Thickness 1.2mm 1mm
Number of Section 3.6m 2 3.6m 3
5.4m 3 5.4m 4
7.5m 4 7.5m 5
Water Pipe Length 20m (can be customized)
Brush Hair Material Anti-Static Nylon Yarn
Cleaning Width 690mm
Lithium Battery Voltage 24V
Lithium Battery Capacity 30AH
Lithium Battery Charging Time  4~6H
Lithium Battery Life Per Full Charge 3~3.5H
