Product Overview

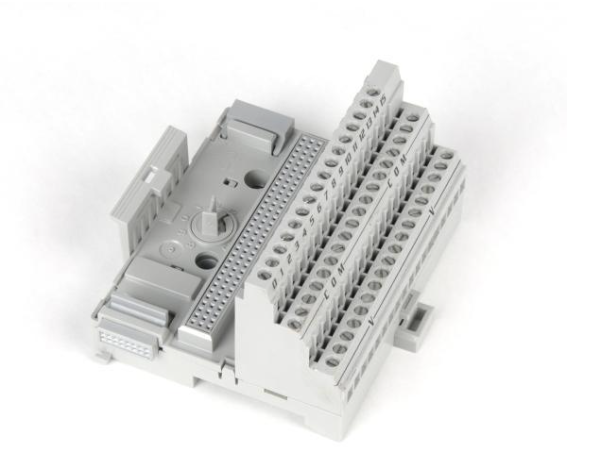

The 1794-TB3 Allen Bradley Terminal Base is a 16 I/O terminal block designed for industrial automation systems. It provides a secure and organized connection point for input and output devices, ensuring reliable signal transmission in demanding industrial environments.

Technical Specifications

• Supply Voltage Range: 125V AC/DC
• Maximum Current Rating: 10A
• Flexbus Supply Voltage: 5V DC at 640 mA
• Number of Terminal Strips: 3
• Number of Terminals: 52 (16 I/O terminals, additional standard and supply terminals)
• Isolation Voltage: 125V continuous
• Operating Temperature Range: -20°C to 70°C (-4°F to 158°F)
• Dimensions: 94mm x 94mm x 69mm (3.7in x 3.7in x 2.7in)
• Mounting Type: DIN rail or panel mounting

Detailed Features

1. Three Terminal Strips: The terminal base includes three strips, facilitating organized wiring for inputs, outputs, and power connections.

2. Screw Clamp Terminals: Designed with screw clamp connections to ensure secure wiring for stranded copper wires ranging from AWG 24 to AWG 16.

3. Keyed Design: Prevents incorrect module insertion by utilizing an adjustable key switch feature.

4. Environmental Ratings: Rated for operation in environments with relative humidity from 5% to 95% (non-condensing), along with high shock (30G) and vibration (5G) resistance.
