Product Overview

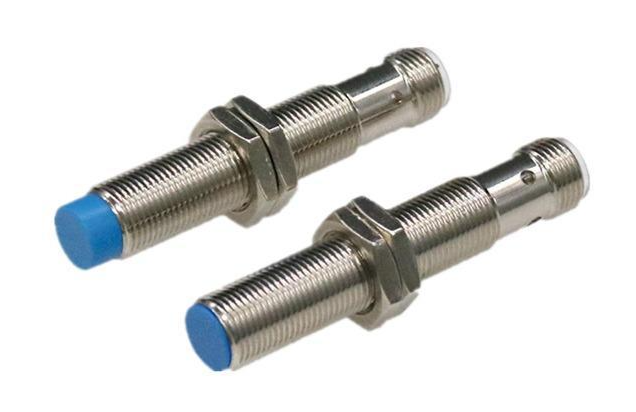

Discover the IME12-08NPSZCOS SICK inductive proximity sensor, a reliable choice for precise detection in industrial automation. This sensor features a sensing range of 6.48mm, making it ideal for applications requiring high accuracy in close quarters.

Key Specifications

Housing: Metric
 Housing :Standard design
 Thread size: M12 x 1
 Diameter :Ø 12 mm
 Sensing range Sn: 8 mm
 Safe sensing range Sa: 6.48 mm
 Installation type: Non-flush
 Switching frequency: 2,000 Hz
 Connection type :Male connector M12, 4-pin
 Switching output :PNP
 Switching output detail :PNP
 Output function :NO
 Electrical wiring :DC 3-wire
 Enclosure rating :IP67 1)
 Items supplied :Mounting nut, brass, nickel-plated (2x)
Supply voltage: 10 V DC ... 30 V DC
 Ripple: ≤ 10 %
