DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel

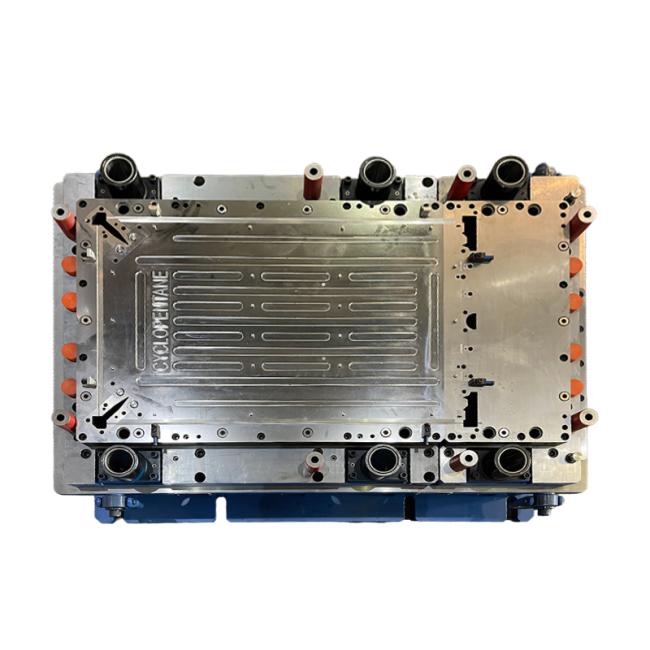

Stamping Die DC52D Stage Die For Refrigerator Back Panel With Computer Manufacturing Technology
Description:
As a leading Chinese manufacturer, we design and produce high-quality stamping dies for the refrigeration industry. This stage die is specifically engineered for creating refrigerator back panels from DC52D steel. Our advanced computer manufacturing technology ensures a perfect fit, exceptional precision, and a high-performance tool built for long-term production. We are committed to delivering reliable and efficient stamping solutions for your manufacturing needs.
Quick Detail:
-
Tooling Certification: Our manufacturing process is certified under ISO 9001
-
Technical Drawings: We provide a complete set of technical documents, including 3D models in SolidWorks and detailed 2D drawings.
-
Quality Reports: Each die comes with a detailed CMM (Coordinate-Measuring Machine) report to verify part accuracy.
-
Service Life Guarantee: We offer a guarantee for a specific number of shots, providing peace of mind about the die's longevity.
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
