S355 Auto Car Stamping Die 4T For Small Table Board Progressive Die Automotive Mold
Price:
$10000-$50000
MOQ:
1 set
Delivery Time:
45days
Brand:
IDO
Product Description

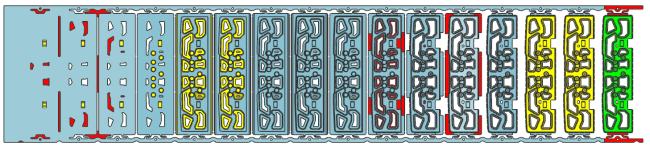

S355 Automotive Stamping Die for Small Table Board Progressive Die
Description:
Meet our Advanced Automotive Stamping Die, a progressive die designed for high-precision small table board production. Built for accuracy, durability, and smooth operation, it delivers consistent, high-quality components every time. Streamline your manufacturing, reduce waste, and boost efficiency with a die engineered for speed, reliability, and precision.
Quick Detail:
- Cycle time: 6–14 seconds, depending on product specs.
- Fast repair: within 30 minutes; quick tool change: within 15 minutes.
- Punch edges require sharpening after 300,000–500,000 strokes.
- Die movements are software-controlled.
- Only one set of press table and tools is needed to produce cabinets, lowering equipment costs.
- Sub-dies can be dismantled individually for maintenance.
- One tool set can produce multiple models; changeovers are program-controlled.
Specifications:
|
Tool/Mould Type
|
Progressive tool/mould/die
|
|
Application in Production
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Sheet Metal Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Tool/Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Base of Mould
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Dimensional Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
