SS430 Metal Stamping Tooling Stage Tool For Dishwasher Tub Wrapper
Price:
$10000-$50000
MOQ:
1 set
Delivery Time:
45days
Brand:
IDO
Product Description

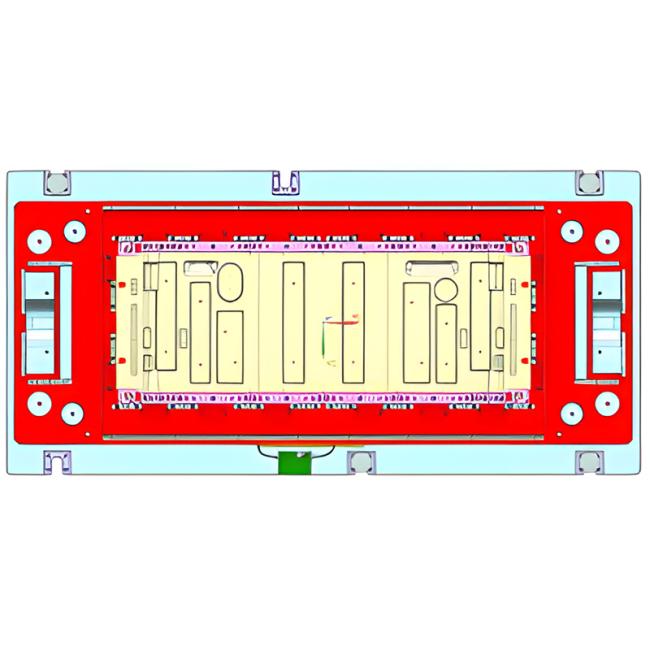

Metal Stamping Tooling SUS430 Stage Tooling For Dishwasher Tub Wrapper With Punching And Shearing Tooling
Description:
Engineered for the precise production of dishwasher tub wrappers, our Metal Stamping Stage Tooling provides a complete solution. This system is specifically designed for stamping SUS430 stainless steel and integrates both punching and shearing tooling, ensuring every part is formed with exceptional accuracy and a clean, perfect finish. It's the all-in-one solution for efficient and high-quality manufacturing.
Quick Detail:
- Cycle: 6~14s (determined by product characteristics)
- Punch edge sharpening: after 200,000~300,000 shots
- Reverse Tonnage: <10% of capacity. The force exerted back on the press ram, which can cause damage over time.
- Lifting Method: M24 eye bolts. The standard hardware for safely lifting and installing the die.
Metal Stamping Tooling Released Commercial Components Brands:
|
Item
|
Option 1
|
Option 2
|
Option 3
|
|
|
1
|
Standard piercing punches (with or without ejectors) | MISUMI | DAYTON | FIBRO |
|
2
|
Standard piercing matrix |
MISUMI
|
DAYTON | FIBRO |
|
3
|
Guide elements columns, bushes, die sets (precision plates) |
MISUMI
|
FIBRO | DANLY |
|
4
|
Sliding wear plates (bronze plus graphite) |
MISUMI
|
FIBRO | DAYTON |
|
5
|
Cam mechanisms |
MISUMI
|
FIBRO | OMCR |
|
6
|
Coil steel springs |
MISUMI
|
FIBRO | SPECIAL SPRINGS |
|
7
|
Nitrogen gas springs |
MISUMI
|
KALLER | SPECIAL SPRINGS |
|
8
|
Screws,fastener, pins, stripper bolts, |
MISUMI
|
FIBRO | DAYTON |
|
9
|
Spring guide pins, pilots, ejectors ,stock lifters, pad retainer, pilot shedders |
MISUMI
|
FIBRO | DAYTON |
|
10
|
Rotary bending mechanisms |
MISUMI
|
DAYTON | |
|
11
|
Lifting elements / rotary eyebolts |
MISUMI
|
FIBRO | DAYTON |
|
12
|
Pneumatic valves and electrovalves |
MISUMI
|
FESTO | SCHMALZ |
|
13
|
Scraps pneumatic evacuator/shakers |
MISUMI
|
FIBRO | |
|
14
|
Electrical connectors | HARTING | HARTING | ILME |
|
15
|
Tool Steel | ASSAB | ASSAB | GROEDITZ |
|
16
|
PVD Coating | OERLIKON | OERLIKON | |
|
17
|
Tool Bronze | AMPCO | AMPCO | |
