GAOKEview Custom 65 85 Inch Infrared Touch Hd Led Screen Smart Tv Interactive Flat Panel
Model | GK-880T/65S-H2 | GK-880T/75S-H2 | GK-880T/86S-H2 | |||
Backlight Type | D-LED | |||||
Resolution(pixels) | 3840x2160(pixels,RGB) | 3840x2160(pixels,RGB) | 3840x2160(pixels,RGB) | |||
Brightness | 350cd/m2(typ.) | 350cd/m2(typ.) | 350cd/m2(typ.) | |||
Contrast Ratio | 1200:1(typ.) | 1200:1(typ.) | 1200:1(typ.) | |||
Response Time | 8ms (typ.) | 8ms (typ.) | 8ms (typ.) | |||
Pixel Pitch (mm) | 0.4935(H)x0.4935(V) | 0.4298(H)x0.4298(V) | 0.4935(H)x0.4935(V) | |||
Refreshing Frequency | 60Hz | 60Hz | 60Hz | |||
Viewing Angle | 178°(H) / 178°(V) | |||||
Life Time | 50,000 Hours (min.) | |||||
Color Gamut (X% NTSC) | 72%(typ.) | |||||
View Area (mm) | 1428.48(H)x803.52(V)mm | 1649.74(H)x927.94(V)mm | 1895.04(H)x1065.96(V) mm | |||
Display Colors | 1.07B(10bit) | 1.07B(10bit) | 1.07B(10bit) | |||
System | ||||||
Chipset | Amlogic T982 | |||||
CPU | Architecture | Quad-core A55 | ||||
Working Frequency | 1.9GHz | |||||
Core | Quad Core | |||||
GPU | Mali G52MP2 | |||||
RAM | 4GB DDR4/6GB DDR4(Optional)/8GB DDR4(Optional) | |||||
ROM | EMMC 32GB/ 64GB(Optional) / 128GB (Optional) | |||||
OS | Android 11.0 | |||||
Power Requirements | AC 100 V ~ 240 V, 50/60 Hz | |||||
Power Consumption Without OPS | 65’’: 250W 75’’: 350W 86’’: 450W | |||||
Standby Condition | <0.5W | |||||
Audio Output Power | 15W*2 | |||||
I/O Interface | ||||||

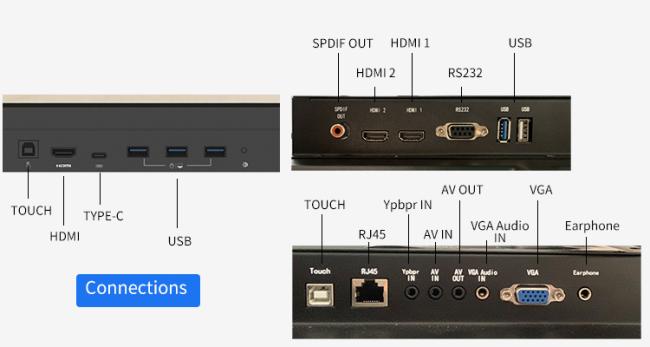

Rear Interface | RJ45*1; SPDIF OUT*1; EARPHONE (3.5mm AUDIO OUT)*1; AV IN*1; AV OUT*1; YPBPR IN*1; VGA IN*1; VGA AUDIO IN*1; HDMI IN*4; RS232*1; TOUCH USB*1; USB2.0*2 | |||||
Front Interface | Public USB 3.0*3; Touch-USB*1; HDMI IN*1; Type-C*1 | |||||
Structure Parameter | ||||||

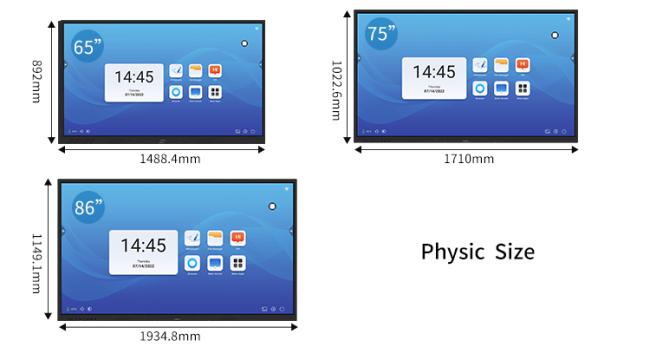

Product Size(W x D x H) | 1488.4*892*91.6mm | 1710*1022.6*89.6mm | 1934.8*1149.1*89.6mm | |||

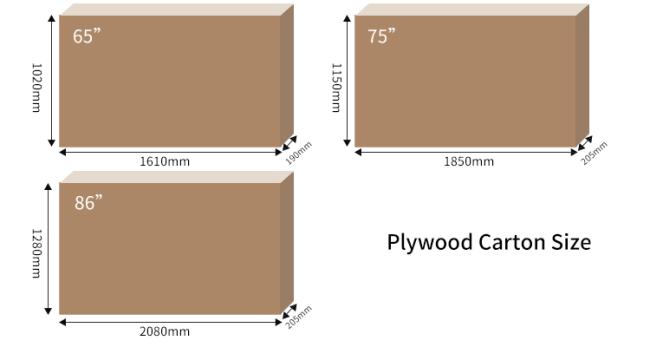

Package Size(W x D x H) | 1610*1020*190mm | 1850*1150*205mm | 2080*1280*205mm | |||
Housing Material (Face frame/rear shell) | Aluminum/Metal Plate | Aluminum/Metal Plate | Aluminum/Metal Plate | |||
Shell color (Face frame/rear shell) | Dark Gunmetal/Black | Dark Gunmetal/Black | Dark Gunmetal/Black | |||
VESA | 4-M8 Screw Hole 400mmx400mm | 4-M8 Screw Hole 600mmx400mm | 4-M8 Screw Hole 600mmx400mm | |||
Net Weight | 31.32±1KG | 44.29±1KG | 57.99±1KG | |||
Gross Weight | 41.8±1KG | 57.69±1KG | 73.19±1KG | |||
OPS PC(Optional) | Proecessor INTEL®CORE I3 ; RAM with 4 GB ; Storage SSD 128 GB ( OPTIONAL OR CUSTOMIZED ) | |||||
Q:Are you the factory or the trading company of Touch Screen TV?
A:we are the factory in Hangzhou city,Zhejiang province,we can OEM/ODM for you.
Q: How long is the warranty time for your company of Touch Screen TV?
A:We offer 2 year warranty after the delivery.
Q:What payment method your company accept?
A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.
Q:Can I customize product as my request of Touch Screen TV?
A:Absolutely yes,we can customized as your requirement of Touch Screen TV.
Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?
A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the replacement part.
