National Instruments NI-6581B Digital I/O Adapter Module with 54 Channels 50 Ohm Termination and 100 Mbits/s Data Rate for FlexRIO
Price:
$1,000/sets >=1 sets
MOQ:
one
Delivery Time:
Delivery time for minimum order quantity ≤ 30 days
Brand:
National Instruments
Product Description

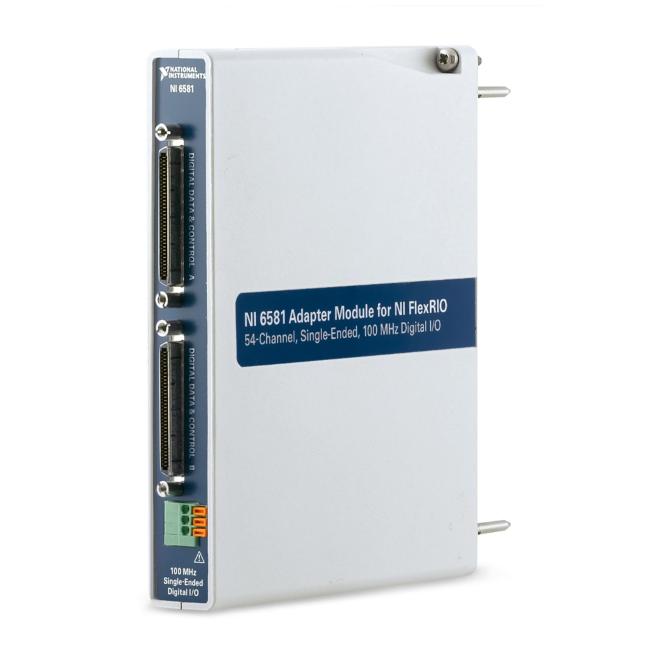

National Instruments 6581B FlexRIO Digital I/O Adapter Module
Customized Support for OEM Applications
The National Instruments NI-6581B Digital I/O Adapter Module (Part Number: 783887-01) is a high-performance 100 MHz, 54-channel single-ended module designed for FlexRIO systems with Kintex-7 FPGA support. This module enables parallel data processing directly on the FPGA, significantly reducing processor load and time-intensive operations.
Key Features:
- 100 MHz operation with 54 bidirectional digital channels
- Programmable Kintex-7 FPGA for local processing and adaptable I/O tasks
- Supports 1.8V, 2.5V, and 3.3V logic levels
- 50-ohm digital I/O termination
- Maximum data rate of 100 Mbits/s
- Compatible with Virtex-5 and Kintex-7 FPGAs
Technical Specifications
| Specification | Value |
|---|---|
| Number of Bidirectional Digital Channels | 54 |
| Maximum Clock Rate | 100 MHz |
| Logic Levels and Ranges | 1.8 V, 2.5 V, 3.3 V |
| Compatible FPGA | Kintex-7, Virtex-5 |
| Digital I/O Termination | 50 ohm |
| Maximum Data Rate | 100 Mbits/s |
| Signal Type | Single-ended |
Programming and Integration
The NI-6581B module integrates a user-programmable FPGA for local processing and adaptable I/O tasks. It can be programmed using the LabVIEW FPGA module or VHDL, enabling implementation of custom functions such as device comparison, waveform generation/analysis, and other device-based computations.
The LabVIEW FPGA module extends LabVIEW's graphical development environment to target FPGAs in NI reconfigurable I/O (RIO) devices. Its intuitive parallel dataflow representation makes it particularly suitable for FPGA programming without requiring low-level hardware description languages.
Connectivity
The module features two VHDCI connectors, each with 24 general-purpose I/O lines, three PFI lines, one check-out line, and one check-in line. It can interface with terminal blocks such as NI SMB-2163 for SMB connections or NI CB-2162 for screw terminals using the NI SHC68-C68-D4 shielded cable. The pinout is compatible with other NI high-speed instruments.
