National Instruments PXI-2598 PXI Transfer Switch Module 50Ohm Impedance 26.5GHz Bandwidth
Price:
$10,000/sets >=1 sets
MOQ:
one
Delivery Time:
Delivery time for minimum order quantity ≤ 30 days
Brand:
National Instruments
Product Description
Customized Support National Instruments PXI-2598 PXI Transfer Switch Module
The National Instruments PXI-2598 (Part Number: 778572-98) is a 50Ω, 26.5 GHz PXI transfer switch module designed for microwave or RF signal routing in ATE (Automated Test Equipment) applications. This module is ideal for basic signal routing and adding/removing components in signal paths, particularly for transferring harmonics between upconverter and downconverter modules.
Key Features
- Integrated onboard relay count tracking for predictive maintenance
- Designed for Measurement Category I (≤100V signal voltage)
- 1.25 Arms maximum carry current per channel
- 75 W maximum RF carry power
- -35 dBm maximum switching load
- 50Ω nominal characteristic impedance
- Electromechanical latching relays with gold-plated beryllium copper contacts
- Eight SMA jacks for I/O connections
Technical Specifications
| Specification | Value |
|---|---|
| Switching Bandwidth | 26.5 GHz |
| Relay Type | Electromechanical |
| Maximum AC Load Current | 1.25 A |
| Maximum AC Switching Voltage | 60 V |
| Scan Rate | 2 cycles/second |
| Recommended Cycling Speed | 5 channels/second |
| Minimum Trigger Pulse Width | 150 ns |
| Form Factor | 3U, 2-slot PXI module |
| Weight | 302 g |
| Bus Connector | PXI Hybrid |
Relay Performance
Mechanical Relay Life: 2.5*10⁶ cycles
Insertion Loss Repeatability: <0.03 dB

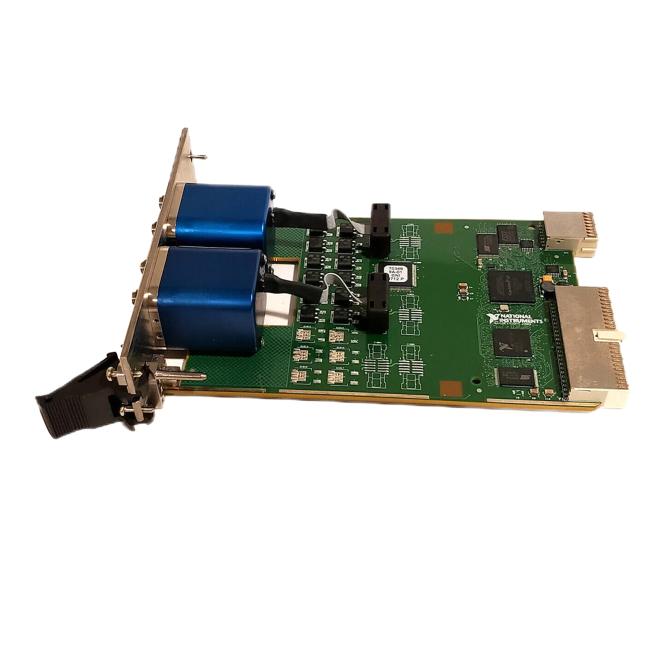

Product Images
