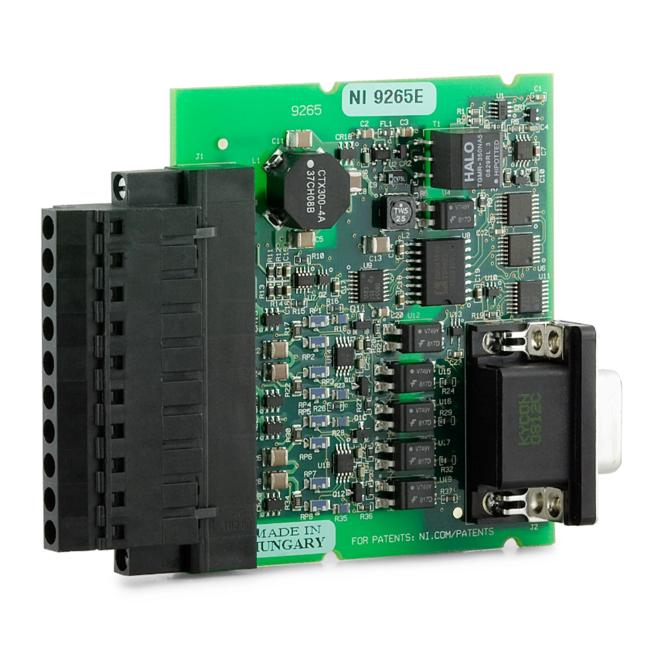

National Instruments SbRIO-9265 C Series Current Output Module with 4-channel 0-20 mA Range and 100 kS/s per Channel for CompactRIO
Price:
$10,100/sets >=1 sets
MOQ:
one
Delivery Time:
Delivery time for minimum order quantity ≤ 30 days
Brand:
National Instruments
Product Description
Customized National Instruments SbRIO-9265 C Series Current Output Module
Industrial-Grade Current Output Solution
The National Instruments sbRIO-9265 C Series Current Output Module (Part Number: 780921-01) is a high-performance, 4-channel current output module designed for industrial automation and control applications. This module features integrated open-loop detection for enhanced system safety and reliability.
Key Features
- 4 independent current output channels (0-20 mA range)
- Dedicated digital-to-analog converter (DAC) per channel
- Integrated open-loop detection for system safety
- 10-position removable screw terminal connector
- Built-in overvoltage (±40V) and short-circuit protection
- Supports up to 100 kS/s per channel update rate
- Compatible with CompactRIO hardware platforms
Technical Specifications
| Specification | Detail |
|---|---|
| Analog Output Channels | 4 |
| Output Current Range | 0 mA to 20 mA |
| Maximum Update Rate | 100 kS/s per channel |
| Maximum Current Output | 21.0 mA |
| Maximum Load | 600 ohm |
| Connection Type | Screw terminal |
| Conformal Coating | None |
| Sealed | None |
Operation Details
The sbRIO-9265 requires an external power supply with dedicated terminals for power connections. Each output channel features a common terminal and can drive separate loads. The module ensures 0.0 mA current output during startup and shutdown sequences for safe operation.
Industrial Applications
Ideal for controlling industrial actuators and high-frequency applications where precise current output is required. The module's robust design and safety features make it suitable for demanding industrial environments.
