E36154A 800W Autoranging Benchtop Power Supply, 30V, 80A
Highlights
Rated Output Power - 800 W
Output 1: 0 to 30 V, 0 to 80 A
Programming Accuracy ±(% of output + offset)
Voltage: 0.03% + 5mV
Current: 0.1% + 20mA
Ripple and Noise (20 Hz to 10 MHz)
Normal Mode Voltage: <50 mV pp
Normal Mode Voltage: <5 mV rms
Readback Accuracy ±(% of output + offset)
Voltage: 0.03% + 5mV
Current: 0.1% + 20mA
Low Range Current: 0.1% + 5 mA
The Keysight E36154A is an 800W, 30V, 80A autoranging benchtop single supply output DC power supply. The E36154A includes advanced characterization tools such as data logging, optional oscilloscope views, and arbitrary waveform generation. This enables in-depth analysis and precise output modulation of power simulation applications, allowing you to accelerate development projects without compromising quality. All of these features come together as an all-in-one solution that eliminates the typical requirement for multiple instruments, thereby helping you save time without complex setups and reduce test costs.

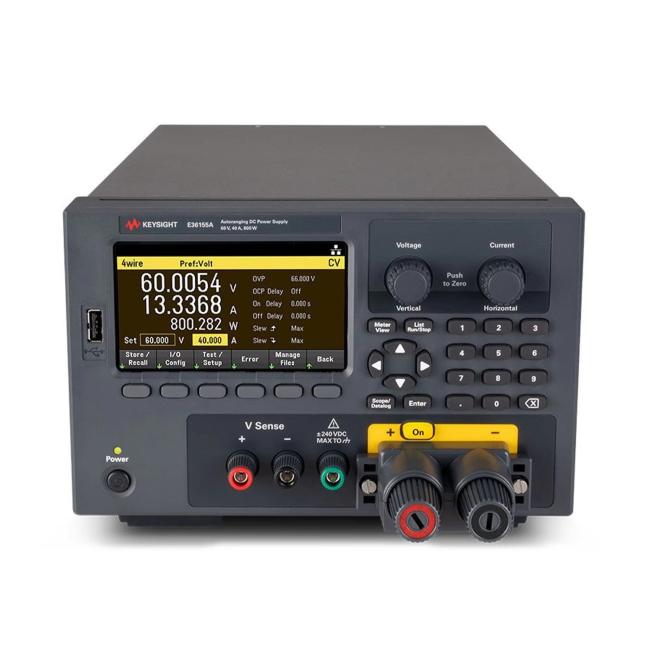

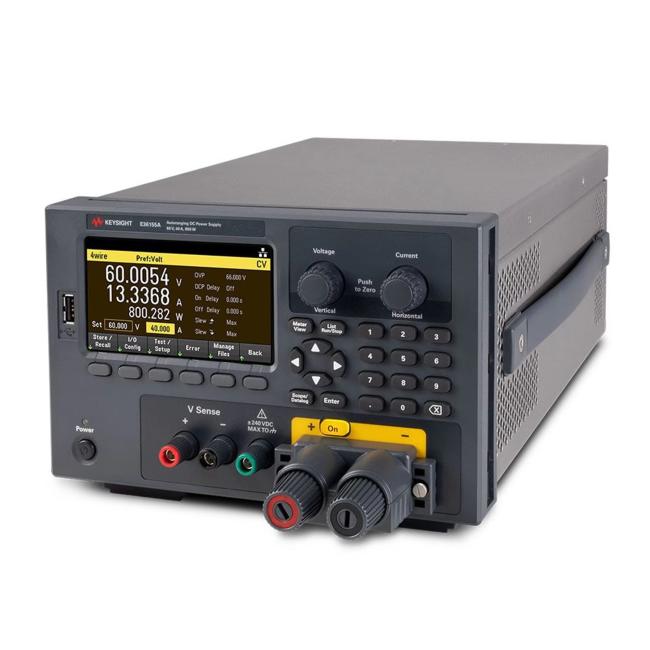

The E36154A brings a key innovation—detachable front binding posts that support high currents up to 80A. The detachable binding posts provide easy access to the power supply outputs, enabling seamless line connections to the DUT. What’s more, the front binding posts have a built-in automatic protection mechanism to ensure the safety of yourself and your equipment.
