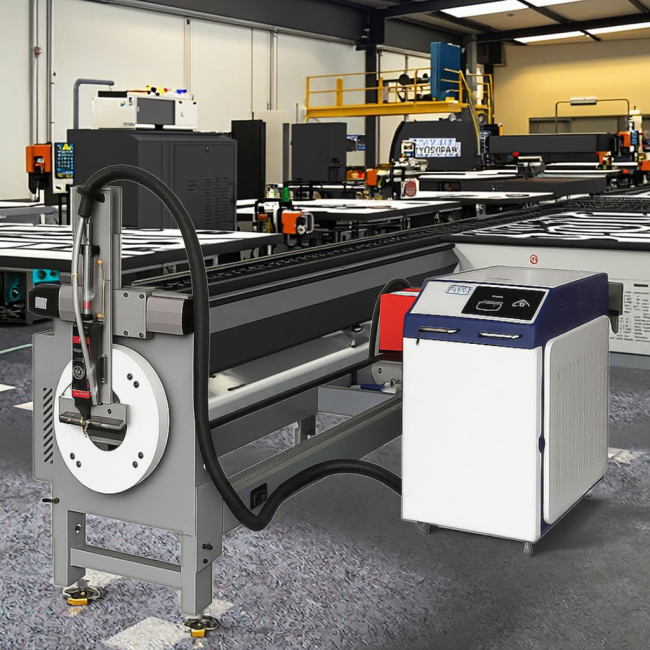

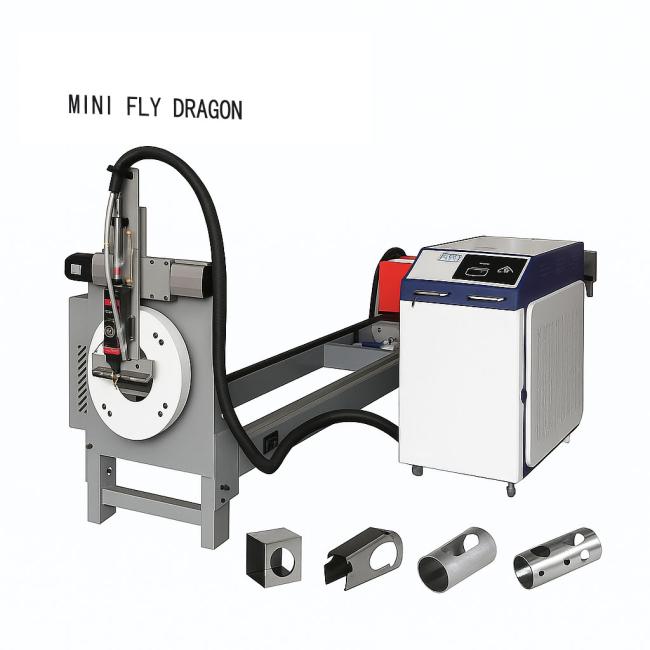

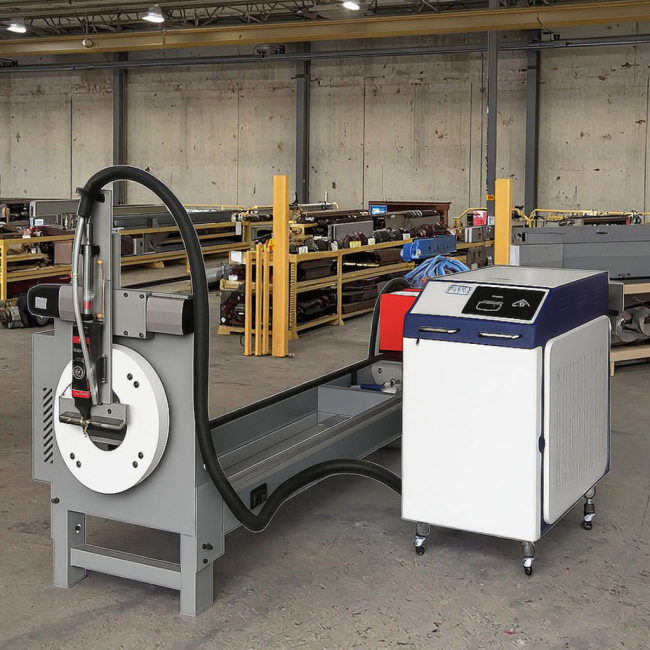

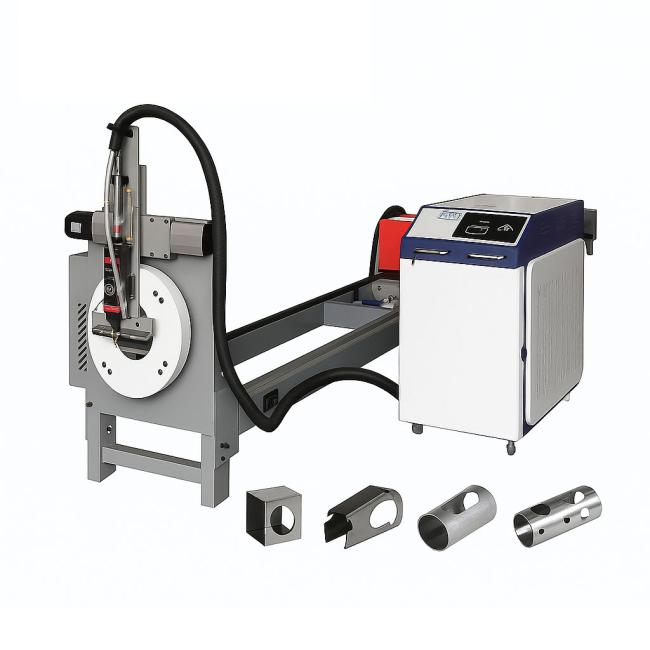

CNC Laser Tube Pipe Cutter Machine New Stainless Steel Carbon Steel Aluminum-Round Square Rectangle Shapes-Supported AI
Price:
$5,500-5,980 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
NO
Product Description
Product Description
Specification
Adapt diameter | 100mm or 160mm |
Tube Pipe shape | Round Square Rectangle |
Laser source | 1200 1500 3000 6000 |
Cut head | Manual focus |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Portable Laser tube cutter 1500W L6meter, Dia.Square tube <100mm, square tube <100m, Price EXW $5980
add $1500 upgrade to 160mm diameter.

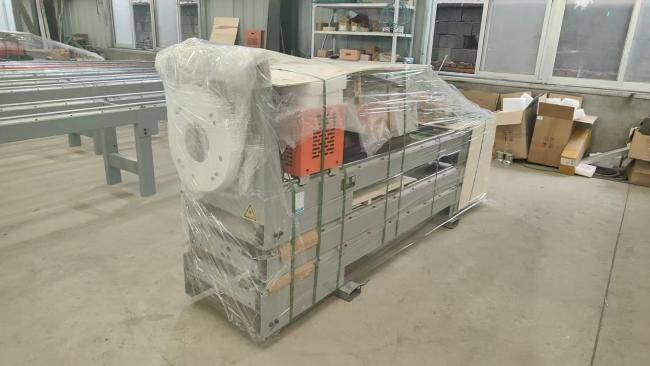

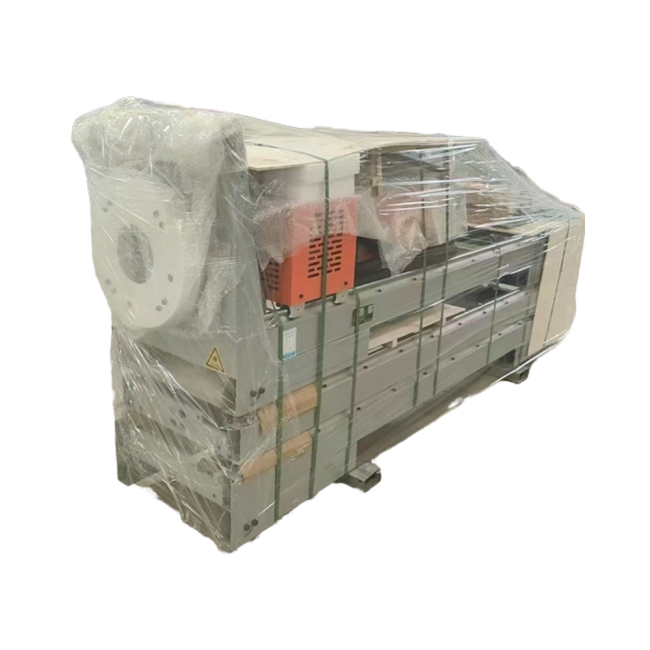

Packing:
1. Chuck and racks: 2500*550*1200mm 280kg
2. Laser Source and chiller:1020*520*1050mm 85kg
Total 2pkgs , 365kg 2.2cbm
FAQ
Cut thickenss Gas options 1200W(220v single phase):
1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm)
2. oxygen cylinder (cut carbon steel 0.3-12mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm)
Average power consumption 3-4KW Peak 6KW
Cut thickenss Gas options 1500W(220v single phase):
1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm)
2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm)
Average power consumption 4.5-5KW Peak 7.5KW
Cut thickenss Gas options 2000W(220v single phase):
1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm)
2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm)
Average power consumption 6-7KW Peak 9KW
Cut thickenss Gas options 3000W(380v 3phase):
1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm)
2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm)
Average power consumption 9-10KW Peak 15KW
Cut thickenss Gas options 6000W(380v 3phase):
1. air compressor (cut carbon steel 0.3-18mm , stainless steel,aluminum 0.3-18mm)
2. oxygen cylinder (cut fine quality carbon steel 0.3-24mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-20mm)
Average power consumption 9-11KW Peak 15KW
Cut thickenss Gas options 12000W(380v 3phase):
1. air compressor (cut carbon steel 0.3-25mm , stainless steel,aluminum 0.3-30mm)
2. oxygen cylinder (cut fine quality carbon steel 0.3-40mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-40mm)
Average power consumption 10-15KWh Peak 22KW
