Automatic Weighing Packing Machine for Snacks Food Industry 220V/380V
Price:
10000-25000 USD
MOQ:
1
Delivery Time:
25-30 days
Brand:
Penglai Pack
Product Description
Full Automatic Snack Food Packaging Machine Candy Red Dates Chips Weighing Pack Machine for Food Industry
Applications
This machine is suitable for various industries including food, medical, chemical, and commodity products. It handles:
- Granular products: sugar, salt, seasoning, desiccant, washing powder
- Larger particles: tablets, capsules, candy, agricultural products
- Strips, slices, blocks: crispy rice, potato chips, French fries, Chinese medicine tablets
Key Features
- Servo film feeding system with pneumatic horizontal sealing control
- Precision positioning and high reliability with intelligent operation
- Convenient cleaning function with open hopper design
- IP65 waterproof and dust-proof construction
- Adjustable motor opening angle for different material characteristics
Equipment Performance
- Bilingual Chinese/English touch screen interface
- PLC computer control system for stable operation
- Parameter adjustment without stopping production
- Multiple parameter storage for quick product changeovers
- Servo motor driven for precise positioning
- Multiple packaging styles: back sealing, gusseting, connected bags, punching
- Complete bag making, sealing, packaging and date printing in one process
Technical Specifications
Product Specifications
| Model | PL-420 |
| Voltage | 220V/380V;50-60Hz |
| Automatic grade | Automatic |
| Packaging type | Bags, Pouch |
| Driven type | Pneumatic |
| Max film roll width | 420mm |
| Bag width | 80-200mm |
| Bag length | 800-300mm |
| Filling volume | 100-2000g |
| Packing speed | 40-60 bags/min ( up to different bag size and weight) |
| Dimensions (L*W*H) | 4323 * 2998 * 3700 mm |
| Power | 2.5KW |
| Warranty | 1 Year |
| Feeding by | multihead weigher |
| Material | Stainless Steel/Painted Steel, 304SS, SUS 304 Stainless Steel |
Machine photos:
Automatic weigher (10 or 14 heads, customizable)
Bag forming and sealing structure

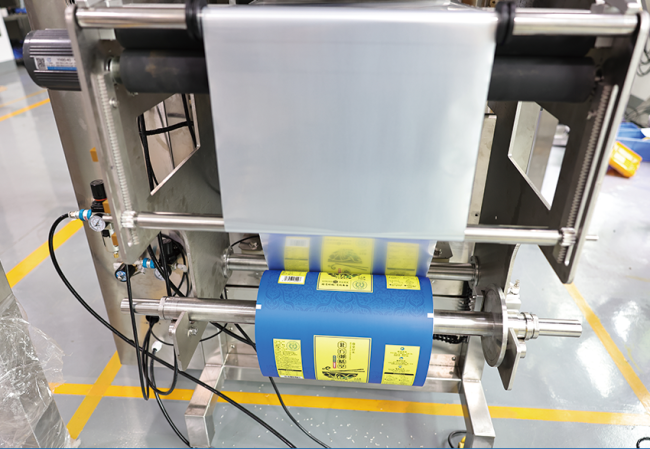

Back side of packing machine: Film roll feeding bracket
Sealing and cutting mechanism (Internal structure)
The machine can connect with weigher sorter to sort out packages with non-standard weights.
Sample Packaging Output
