Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Price:
USD22050-USD3600/per unit
MOQ:
1
Delivery Time:
in 30 days
Brand:
PL
Product Description

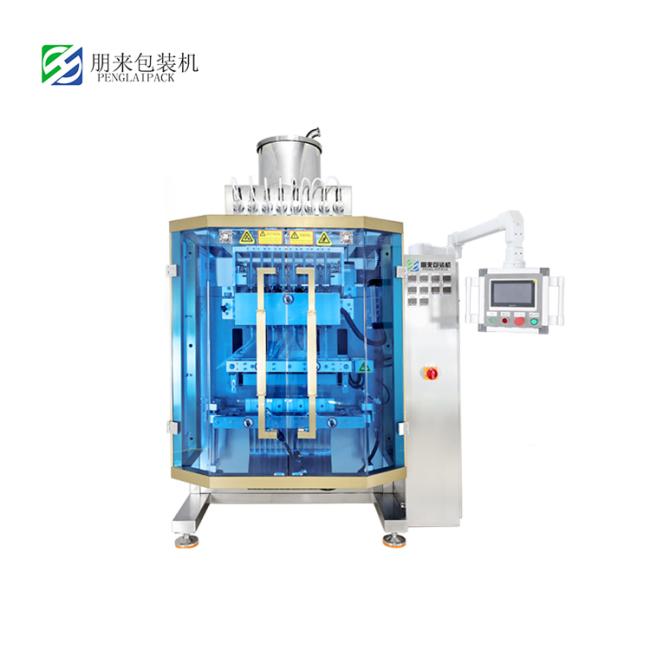

Multi-Lane Automatic Liquid Pouch Packing Machine
High precision stainless steel construction for jelly, fruit juice and other liquid products
Key Specifications
| Packaging Material | Plastic, Paper, Wood |
|---|---|
| Packaging Type | Bags, Film, Pouch, Stand-up Pouch, Foil, Belt |
| Application | Beverage, Chemical, Commodity, Food, Machinery & Hardware |
| Driven Type | Pneumatic |
| Voltage | 220V/380V |
| Function | Filling, Labeling, Sealing, Slitting, Wrapping |
| Speed | 30-40 bags/lane/min |
| Appearance | Stainless Steel |
Product Overview
This multi-lane machine is a fully automatic packing equipment designed for liquid packaging. Suitable for various materials including cleaning products, detergents, drinks, hair care products, oils, fruits and vegetables, helping enterprises achieve efficient packaging production.
Technical Specifications
Automatic Grade: Fully Automatic
Type: Packing Machine
Forming Species: Bag Moulding
Forming Function: Forming, Filling, Seal
Material Type: Liquid
Filling Volume Range: 1-50ml
Packing Lanes: 4lane, 6lane, 8lane, 10lane
Control System: PLC + Color Touch Screen
Weight: 1500kg
Production Capacity: 1000 sets/Year
Type: Packing Machine
Forming Species: Bag Moulding
Forming Function: Forming, Filling, Seal
Material Type: Liquid
Filling Volume Range: 1-50ml
Packing Lanes: 4lane, 6lane, 8lane, 10lane
Control System: PLC + Color Touch Screen
Weight: 1500kg
Production Capacity: 1000 sets/Year
Machine Features
- Servo motor and servo driver for precise film pulling and stable performance
- Noiseless stepping motor improves working conditions with reduced vibration and noise
- Food-grade stainless steel 304 construction ensures cleanliness and durability
- Imported color mark sensor for accurate cutting positioning
- PLC control with touch screen panel for easy operation
- Multiple automatic alarm protection functions to minimize losses
Performance Specifications
| Type | 4lane | 6lane |
|---|---|---|
| Bag length | max 170mm | max 170mm |
| Bag width | 16-84mm | 16-54mm |
| Max width of roll film | 440mm | 440mm |
| Packing speed | 30-50 bag/min/lane | 30-50 bag/min/lane |
| Air consumption | 0.65mpa | 0.65mpa |
| Gas consumption | 0.2m³/min | 0.2m³/min |
| Power voltage | 220VAC/50HZ | 220VAC/50HZ |
| Power | 2.0KW | 2.2KW |
| Dimension | 1100×990×2100mm | 1100×990×2100mm |
| Weight | 1500KG | 1500KG |
