Automatic Double Chamber Tea Bag Packing Machine for Herbs
Price:
12500
MOQ:
1
Delivery Time:
15-20
Brand:
penglai
Product Description
Filter Paper Tea Bag Packaging Machine Coffee Filling Machine
Application:
This machine is suitable for automatic packaging of materials such as medicine.health products.tea.etc.such asgreen tea.black tea.
scented tea.coffee.health tea.traditional Chinese medicine tea.traditional Chinese medicine granules etc.
Features:
1.lt can be used in flat bag , triangular three-dimensional packaging and other forms of packaging bags.
2.The whole machine can automatically complete the functions of feeding.measuring.bag making.sealingcutting.counting.finished
product delivery etc.
3.A precise control system is used to adjust the movement of the whole machine, with compact structureman-machine interface design,
convenient operation, easy adjustment and easy maintenance.
4.The bag length is driven by a servo motor, the bag length is stable, the positioning is accurate, and themachine is easy to adiust.
5.lmported ultrasonic sealing is adopted, electronic scale is used to measure and cut the material, thesealing is firm, and the
material is cut accurately.
6.Packaging material tension automatic adjustment device.
7.Fault automatic alarm and automatic shutdown function.
Specification:
| model / 机型 | PL - SJB01 | PL - SJB02 |
|---|---|---|
| Bag Size / 制袋尺寸 | W:60 - 80mm;L:40 - 80mm | W:60 - 120mm;L:100 - 165mm |
| Packing Speed / 包装速度 | 20 - 30 包 / 分钟 bags/min | 25 - 45 包 / 分钟 bags/min |
| Measurement range / 计量范围 | 1 - 7g | 1bag |
| Dimension / 外型尺寸 | L1200*W920*H2060mm | L900*W700*H1600mm (不含输送斗 /not include Bucket) |
| Weight / 整机重量 | 约 400kg | 约 360kg (含拖斗 With bucket conveyor) |
| Power / 电源 | 220V/2KW | 220V/50Hz/1.5KW |
| Air source / 气源 | 0.6 - 0.8mpa | 0.6 - 0.8mpa |
| Air consumption / 耗气量 | 0.6m³/min | 0.3m³/min |

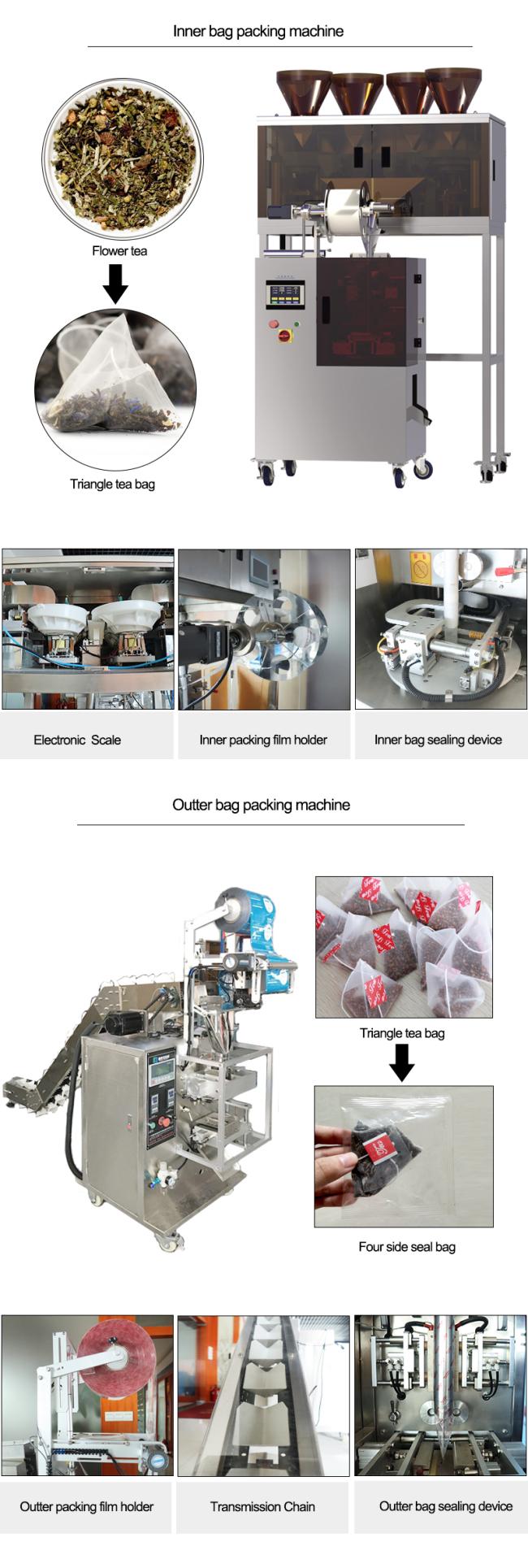

Machine Details:

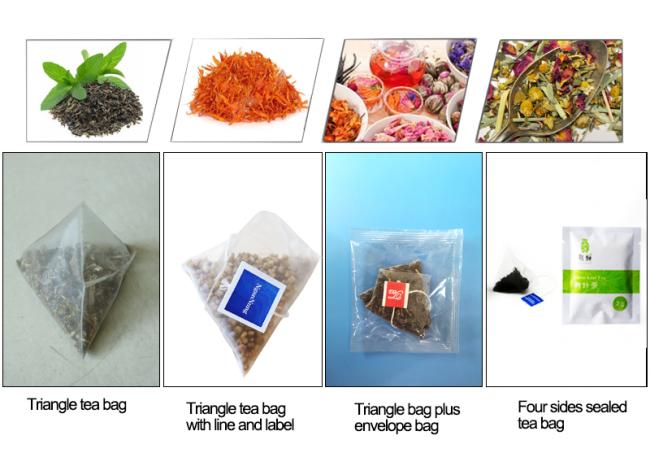

Sample Bag:
