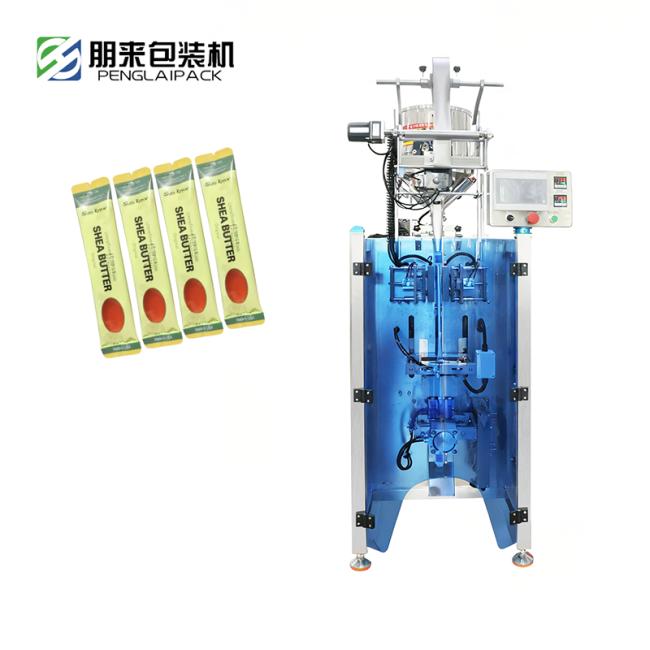

CE/ 2006/42/EC Auto Packaging Machine Paste Honey Stick Oil Ketchup Chocolate Liquid Sachet Packaging Machine With ROHS
- Triple-stepper pure-electric design: 30% lighter weight, 50% fewer parts, tool-free maintenance
- PLC touch-bar speed control: intuitive up/down keys, zero menus, 10-second change-over
- Whisper-quiet servo filling with ±1g accuracy; IP65 rinse-down capability in under 3 minutes
- Mono-block 304 stainless steel chassis, 2mm thick, laser-cut construction—no glued cladding, no rust seams
| Model | PL-220GSYB |
|---|---|
| Measuring Range | 1-30g |
| Bag Size | (Back seal) L20-145mm, W20-100mm; (Side seal) L20-145mm, W30-100mm |
| Dose Range | Magnetic pump, rotor pump, piston pump |
| Voltage | 220V, 50-60Hz, 2KW |
| Control System | PLC control |
| Speed | 80-120 bags/min |
| Bag Type | Back seal / Side seal |
| Dimensions | L900 × W700 × H1720mm |
| Weight | 300kg |
| Package Material | BOPP/PE/PET, any heat sealing laminated film roll |
- Sauces: Tomato, chili, soy, oyster, hoisin, thick vinegar
- Dairy: Greek yogurt, cream cheese, custard, dulce-de-leche
- Confectionery: Chocolate fudge, caramel, fruit jams, honey, maple syrup
- Ready Meals: Salad dressing, ketchup cups, mustard sachets, BBQ dip pots
FAQ:
Q1. How can I visit your factory?
A1:Please contact with us, and we are warmly welcome you visit our Factory if you have a travel plan.
Q2. How can you know if our machine is suitable for your production requirements?
A2:You can tell us your requirements and send us the sample pictures and videos. If possible, it is best to send samples to us for machine debugging.
Q3. How do you offer technical support?
A3:1.Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas
Q4. What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
