Modular Mettler Toledo Heavy Duty Truck Scale For Warehousing And Freight Operations
SMARTWEIGH is a trusted OEM supplier for industry leaders, including Mettler Toledo and Dini Argeo. We strictly follow
their engineering drawings, fabrication standards, and inspection procedures to ensure consistent, proven truck scale performance.
With over 15 years of cooperation, our weighbridges deliver exceptional structural strength and advanced anti-corrosion protection
for extended lifecycle use.
Main Features:
-
Modular structure enables full customisation to match site layout and weighing needs.
-
Easy installation and transport thanks to modular sections that allow quick assembly and size adjustment.
-
An optional hot-dip galvanised structure ensures excellent protection against rust and corrosion, reducing maintenance costs.
-
Explosion-proof versions are available for safe use in hazardous or industrial environments.
-
U-shaped rib bridge design effectively distributes heavy loads, preventing structural stress and deformation.
-
Fully automatic continuous seam welding guarantees high strength and long service life.
-
Equipped with high-performance load cells for superior weighing accuracy and reliability.
-
Convenient modular panels for easy relocation and containerised shipping.
-
Multiple data storage and reporting functions, including vehicle ID, tare weight, accumulation, and statistical records.
-
Triple-layer zinc-rich epoxy coating provides outstanding anti-corrosion protection and extends scale lifespan.
|
—— TECHNIQUE SPECIFICATION —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
Product Name
|
Mettler Toledo Heavy-Duty Truck Scale With Modular Design And Safety Guardrails For Warehousing And Freight Operations |
|
Safe Overload
|
130% |
|
Surface Finish |
Ball blasting and Anti-rust epoxy paint |
|
Material |
Q235B or Q345B steel
|
|
Top Plate Thickness |
10mm/ 12mm/ 14mm |
|
Color |
Customized |
|
Accuracy |
OIML C3 |
|
Platform Width |
3m/3.2m/3.4m/4m/Customised |
|
Platform Length |
6~24m/Customised |
|
Surface |
Checkered/Smooth |
|
Beam/ Ribs No |
6 pcs
|
|
Power Supply |
AC 220V, DC 12V Battery Backup
|
|
Load Cell Type |
Single-point load cell or Multi-point load cell
|
|
Protection Class
|
IP65-68
|
|
Calibration
|
Digital calibration with built-in calibration weight
|
|
Temp
|
-10°C to +40°C
|
|
Type
|
Truck Scale Weighbridge
|
|

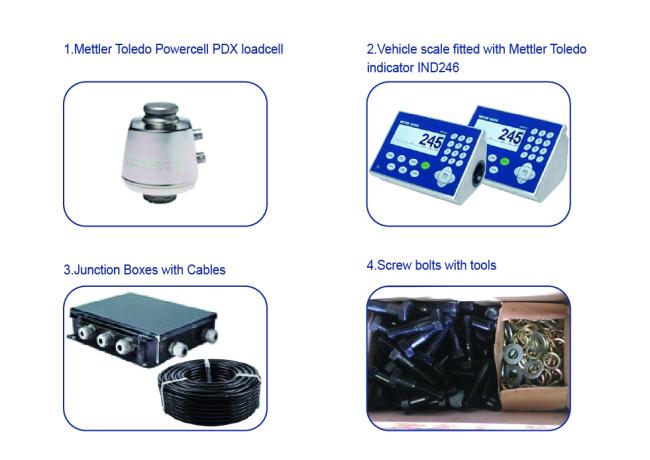

STANDARD ACCESSORIES —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
—— MANUFACTURING PROCESS —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
—— PRODUCT SIZE —— SMARTWEIGH INSTRUMENT CO., LTD. |
| Mettler Toledo Truck Scale Specification | |||||
|
Truck Scale
|
Capacity
|
Section
|
Parts
|
Load Cell
|
TEU Container
|
|
3.0×6M
|
20-50t
|
1
|
2
|
4
|
40GP
|
|
3.0×7M |
20-50t
|
1
|
2
|
4
|
40GP
|
|
3.0×8M |
20-50t
|
2
|
4
|
6
|
20GP
|
|
3.0×9M |
30-60t
|
2
|
4
|
6
|
20GP
|
|
3.0×10M |
30-60t
|
2
|
4
|
6
|
20GP
|
|
3.0×12M |
30-60t
|
2
|
4
|
6
|
40GP
|
|
3.0×14M
|
50-100t
|
3
|
6
|
8
|
20GP
|
|
3.0×15M
|
60-100t
|
3
|
6
|
8
|
20GP
|
|
3.0×16M
|
60-100t
|
3
|
6
|
8
|
20GP
|
|
3.0×18M |
60-100t
|
3
|
6
|
8
|
40GP
|
|
3.0×20M |
60-100t
|
4
|
8
|
10
|
20GP
|
|
3.0×24M |
60-100t
|
4
|
8
|
10
|
40GP
|
|
3.4*12M
|
30-60t
|
2
|
4
|
6
|
40GP
|
|
3.4*14M
|
50-100t
|
3
|
6
|
8
|
20GP
|
|
3.4*16M
|
60-100t
|
3
|
6
|
8
|
20GP
|
|
3.4*18M
|
60-100t
|
3
|
6
|
8
|
40GP
|
|
3.4*20M
|
60-100t
|
4
|
8
|
10
|
20GP
|
|
3.4*24M
|
60-100t
|
4
|
8
|
10
|
40GP
|
|
