CFFG-50 Vertical Automatic Paper Tube Core Curling and Sealing Machine Paper Tube Related Machine
CFFG-50 Automatic Paper Tube Curling Machine is used for paper tube and core's edge curling, widely used in paper can production lines. It is easy for operation as it is automatic type; and PLC controlled, only one operator is required.

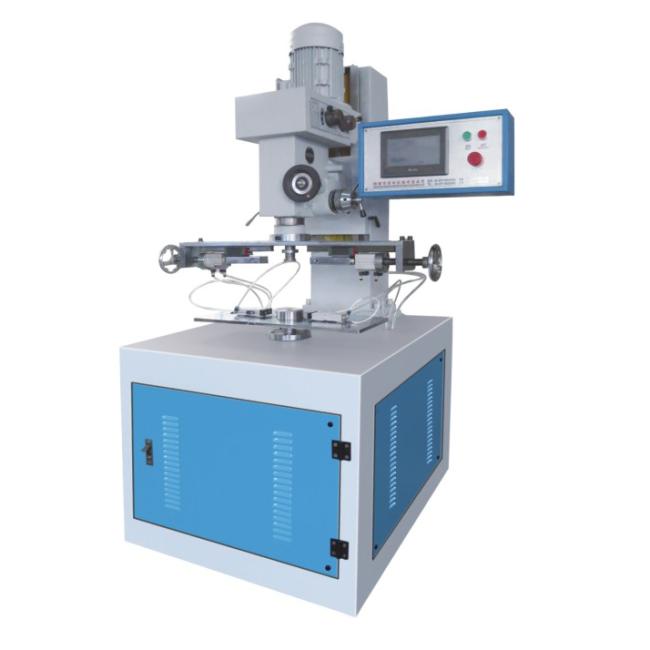

CFFG-50 Paper Tube Curling and Sealing Machine
|
Technical Parameter |
Control System |
|||
|
Inner Diameter |
50-300mm |
Motor |
2.2 kw Wannan |
|
|
Wall Thickness |
1-4mm |
PLC |
Xinjie |
|
|
Tube Length |
50-350mm |
Electric Components |
CHNT |
|
|
Tube fixing Way |
Pneumatic |
Pneumatic Components |
Jingwei |
|
|
Tube Loading |
Manual |
Measurement & Weight |
||
|
Tube Unloading |
Manual |
Measurement |
1050*1000*1780mm |
|
|
Driving Way |
By motor |
Weight |
650kgs |
|
|
Working Air Pressure |
0.6Mpa |
Enclosed Spare Parts |
||
|
Power Supply |
380V / 3 Phase / 50Hz |
Molds |
2 sets |
|
|
Operator |
1 person |
Tool |
1 set |
|
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has more than 17 years’ experience on paper tube & core machine manufacturing. We also have nearly 6 years' experience of paper straw making machine.
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, Mexico, Colombia, Ecuador, Indin etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
