Roast Goose MAP Tray Sealer Machine 3.5kW Food Tray Packing Machine
Price:
7098
MOQ:
1
Delivery Time:
15-20 days
Brand:
China Xingyuan
Product Description

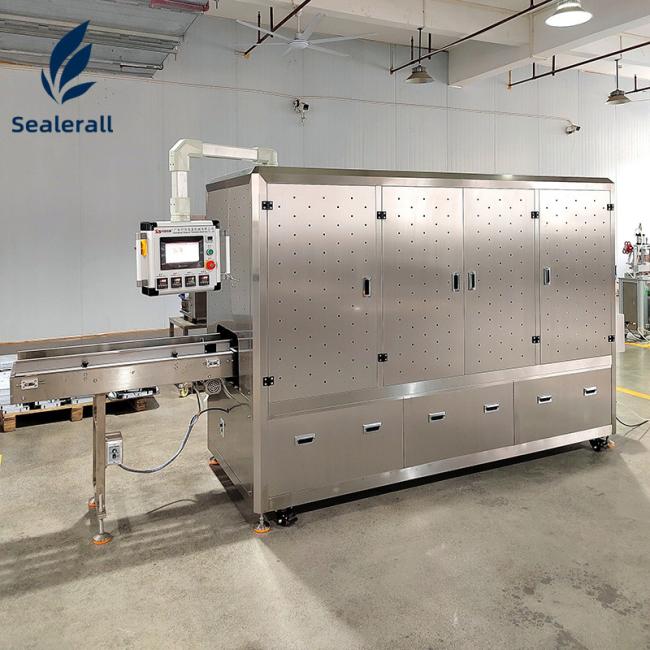

Roast Goose 3.5kW MAP Packaging Machine MAP Tray Sealing Machine
Product Overview
The Roast Goose MAP Modified Atmosphere Packaging Line is a fully automatic sealing machine designed for high-efficiency production. This advanced system features automatic hot press sealing, conveying, and film cutting capabilities, processing six bottles simultaneously to optimize workflow and reduce labor costs.
Key Features
- Simultaneous processing of six bottles per cycle
- Production speed: 1200-1500 bottles/hour (varies by container specifications)
- Automated process: bottle feeding, film sealing, and finished product delivery
- Compatible with production line integration for unmanned operation
- Delta PLC program control with 7-inch touch screen interface
- Precision temperature control (±5°C) for optimal sealing results
- Taiwanese photoelectric eye tracking system
- Customizable sealing diameters (50-250mm) for various container shapes
Technical Specifications
| Sealing Material Compatibility | Plastic composite film, aluminum foil composite film, PP, PE, PET, PS |
| Air Pressure Range | 4-8KG/CM² |
| Temperature Range | 0-300°C |
| Power Consumption | 500-1000W |
| Voltage | 220V/110V |
| Machine Dimensions | 2500×1000×1500mm |
| Work Surface Height | 830mm (customizable) |
| Construction Material | Stainless steel |
| Packing Method | Wooden frame |
Standard Accessories
Includes: 2×10A fuses, instruction manual, hexagonal wrench, cross screwdriver, and paper tube.
Operation & Safety Guidelines
- Always connect grounding wire before operation
- Keep hands clear of machine during operation
- Use emergency stop button (red) when needed
- Power off when installing sealing film
- Gradually increase temperature for initial sealing
- Ensure machine is level on solid surface
- Regularly lubricate guide columns
- Maintain daily cleaning, especially conveyor belt and motor
- Contact authorized service for any malfunctions
Payment & Delivery Terms
50% deposit upon contract signing, balance payable after equipment completion and inspection (on-site or via video confirmation). Delivery within 15-20 days after payment clearance.
Warranty Information
1-year comprehensive warranty with lifetime service support.
