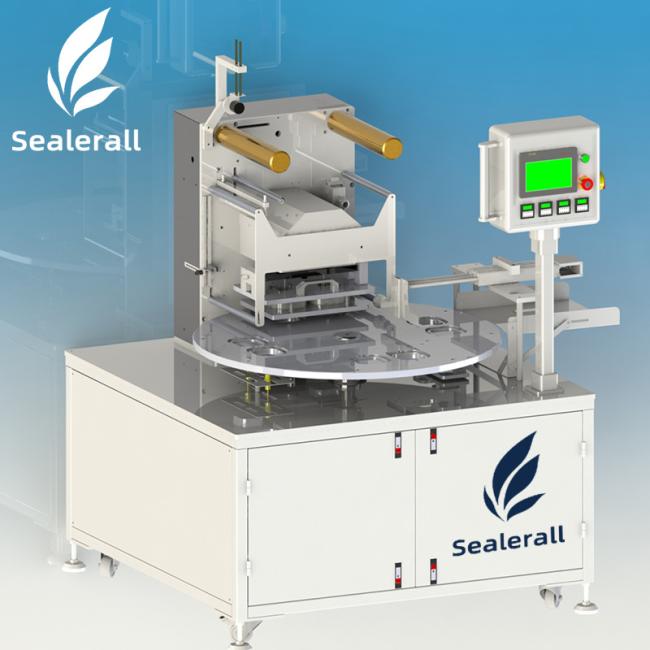

Aluminum Foil Automatic Tray Sealer Lunch Box Sealing Machine 1.5KW-5KW

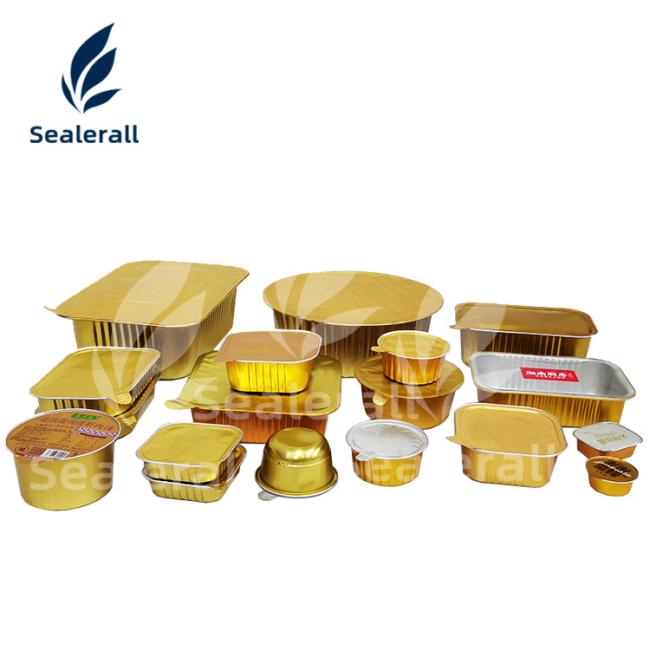

This advanced PLUS fully automatic sealing machine is designed to meet diverse market demands. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, and cans. The versatile design offers cost-effective solutions through multi-purpose functionality.
The machine supports both roll film and sheet film sealing options. Roll film operation includes automatic punching, sealing, and waste discharge, solving lidless container sealing challenges. Its space-efficient design enables single, double, or quadruple box sealing simultaneously, significantly enhancing production efficiency.
- Six-out-one production configuration
- Production speed: 1000-1200 boxes/hour
- Operation process: Manual box placement → Automatic box entry → Air pressure sealing → Automatic waste discharge → Automatic box top
- Safety features: Anti-pinch device with double-sided electronic grating
- Program-controlled operation for reliable performance
- User-friendly 7-inch color touch screen interface
- Precision digital temperature control (±5°C)
- High-precision guide rails for smooth operation
- Taiwanese photoelectric eye tracking system
- Sealing diameter range: 30-250mm (customizable)
- Compatible materials: Plastic composite film, aluminum foil composite film, PP, PVC, PE, PET, PS
- Sealing film size: 2-3mm larger than container opening
- Air pressure range: 4-8KG/CM²
- Temperature range: 0-300°C
- Power: 1000-2000W
- Voltage: 220V
- Construction: Stainless steel 304
- Package weight: ~204kg
- Dimensions: 136×111×168cm (L×W×H)
- Packing: Wooden crate
Includes instruction manual, hexagonal wrench, cross screwdriver, and paper tube.
- Ensure proper grounding before operation
- Keep hands clear during operation
- Use emergency stop button when necessary
- Power off during film installation
- Gradually increase temperature for initial sealing
- Level machine on solid surface
- Regularly lubricate guide columns
- Maintain daily cleaning, especially conveyor belt and motor
- Contact authorized service for electrical issues
| No. | Component | Brand | Origin |
|---|---|---|---|
| 1 | Main Body | Stainless Steel 304 | Guangzhou |
| 2 | Electric Switch | Shuangke | Nanjing |
| 3 | PLC | Homemade | Guangzhou |
| 4 | Display | 7-inch Color Touch Screen | Guangzhou |
| 5 | Relay | Sanle | Zhejiang |
| 6 | Cylinder | AirTac | Taiwan |
| 7 | Temperature Control | RKC | Domestic |
| 8 | Motor | Taili | Joint Venture |
| 10 | Solenoid Valve | AirTac | Taiwan |
Payment: 50% deposit upon contract signing, balance payable after equipment completion and inspection (on-site or via video confirmation).
Production Lead Time: 7-10 days
Warranty: 1-year guarantee with lifetime service support
