P0.78/P0.95/P1.25/P1.56/P1.95/P2.6/p3.91 SculptStone Roller Led Screen 17mm Thickness Roll Up Led Display With Ultra Slim Design

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Brand: HLD
Product Description

Pixels Unframed, Universe Unveiled.

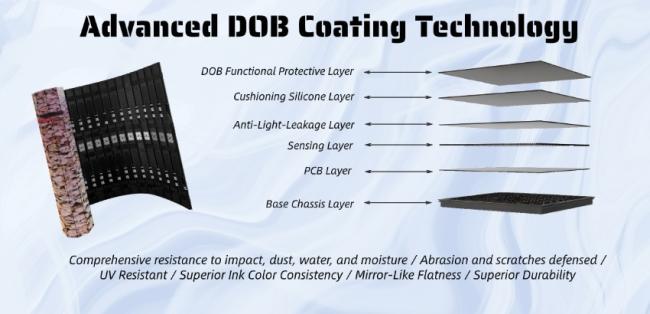

Advanced D0B Coating Technology

DOB Functional Protective Layer

Cushioning Silicone Layer
Anti-Light-Leakage Layer

Sensing Layer

PCB Layer

Base Chassis Layer

Comprehensive resistance to impact, dust, water, and moisture / Abrasion and scratches defensed / UV Resistant / Superior Ink Color Consistency / Mirror-Like Flatness / Superior Durability

Ultra-Slim Design

With a slim 17mm thickness and 17kg/m weight, it enables space-saving and effortless installation.

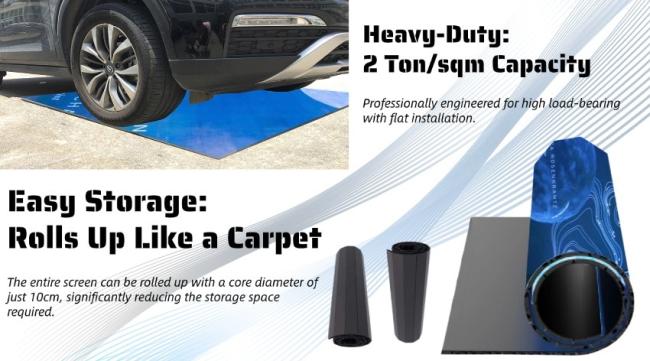

Heavy-duty:2 Ton/sgm Capacity:

Professionally engineered for high load-bearing with flat installation.

Easy Storage:Rolls up like a Carpet:

The entire screen can be rolled up with a core diameter of just 10cm,significantly reducing the storage space required.

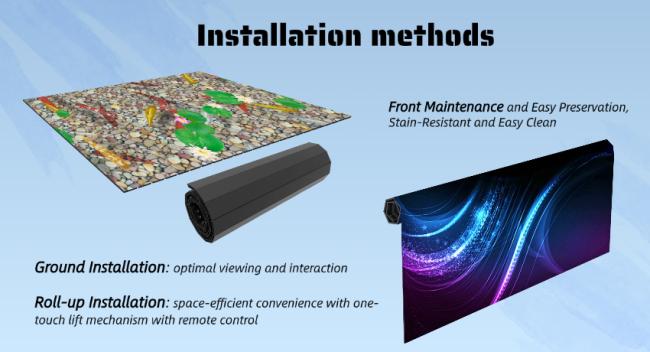

Instalation methods

Front Maintenance and Easy Preservation, Stain-Resistant and Easy Clean.

Ground installation: optimal viewing and interaction

Roll-up Installation: space-efficient convenience with one-touch lift mechanism with remote control.

Intelligent interactive Sensing

Interactive chips with multiplied sensing points enable 0.016s response for immersive engagement and effective information delivery.

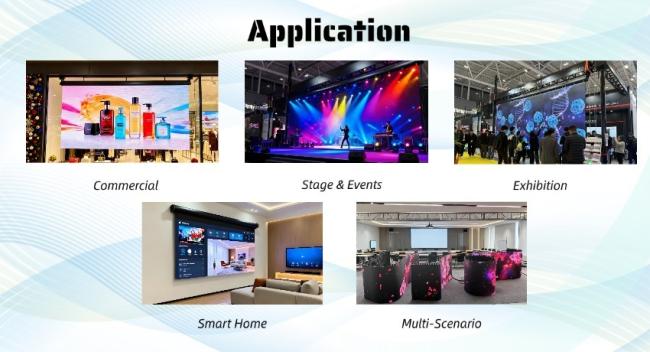

Application

Commercial

Stage & Events

Exhibition

Smart Home

Multi-Scenario

Product Parameters

Products

SSR078

SSR095

SSR125

SSR156

SSR195

SSR260

SSR391

Encapsulation

SMD0606

SMD1010

SMD1415

SMD2121

Pixel Pitch (mm)

0.78

0.95

1.25

1.56

1.95

2.6

3.91

Viewing Distance(m)

0.78

0.95

1.25

1.56

1.95

2.6

3.91

Scan Mode

1/80

1/64

1/50

1/40

1/32

1/24

1/16

Unit Size (mm)

500*1000*17

Module Resolution(W×H)

640*80

512*64

400*50

320*40

256*32

192*24

128*16

Module Size (mm)

500*62.5*17

Material

 Aluminum Alloy

Weight (kg)

17Kg per sqm

Brightness

400-600cd/m²(Adjustable)

400-800cd/m²(Adjustable)

Viewing Angle (H/V)

150°/150°

Contrast

>3000:1

Max Power Consumption

(Tested at 1000 nits white balance)

≤600W/m²

≤600W/m²

≤510W/m²

≤510W/m²

≤510W/m²

≤510W/m²

≤480W/m²

Average Power Consumption

200W/m²

200W/m²

170W/m²

170W/m²

170W/m²

170W/m²

160W/m²

Working Voltage (V)

AC100~240V

Refresh Rate

3840Hz

Gray Scale

14-16bit(Optional)

Working Temperature

-10~+40

Working Humidity

10%~70%RH (No condensation)

Installation

Roll-up Installation/Tiling/Wall Mounting

Protection

IP65/IP41

Certification

CCC,CE,FCC,RoHS
