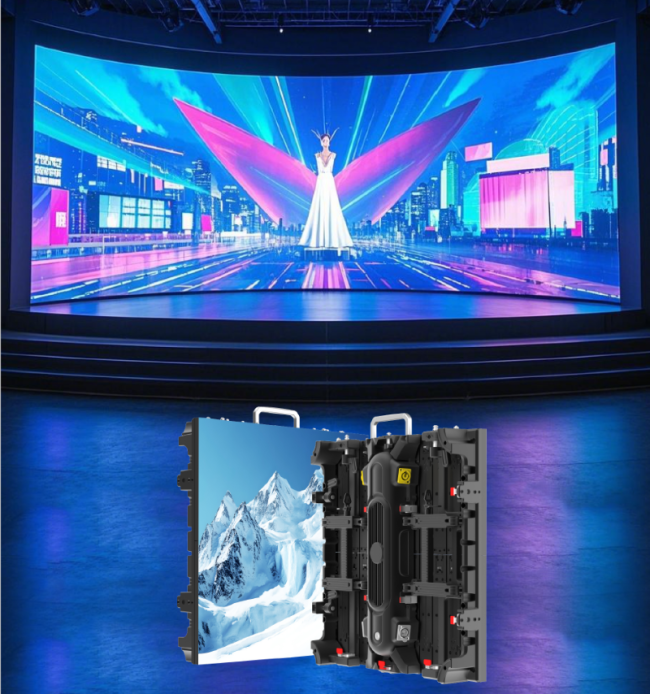

P1.9/P2.6/P2.97/P3.91/P4.81 Swift-pro Series For Rental 500*500/500*1000 Mm Quick Installation And Disassembly

The key features of the SW-PRO Series rental LED displays:

1. Core General Features

• Ultra-thin and Lightweight: The cabinet weight is controlled between ≤7KG (for 500*500mm size) and ≤13KG (for 500*1000mm size), facilitating transportation and installation.

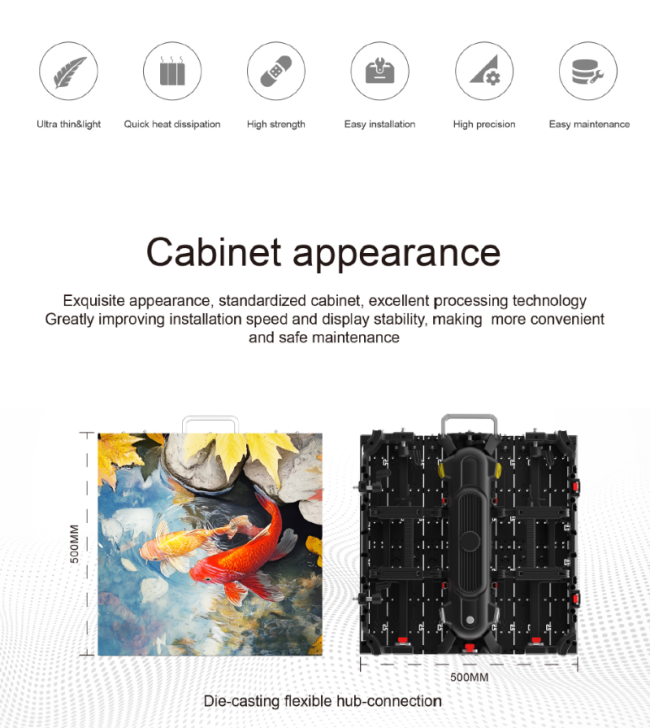

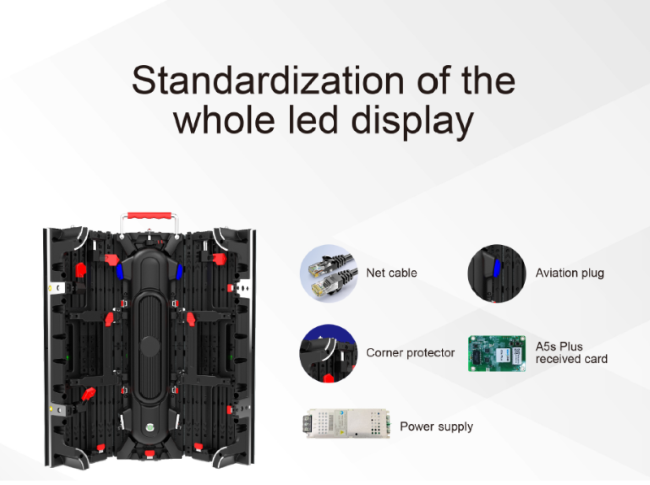

• Easy Installation and Maintenance: Standardized cabinets combined with high-quality processing technology enhance installation speed and display stability, ensuring safe and efficient maintenance.
• Rapid Heat Dissipation: Equipped with high-strength materials, it guarantees long-term stable operation of the equipment.

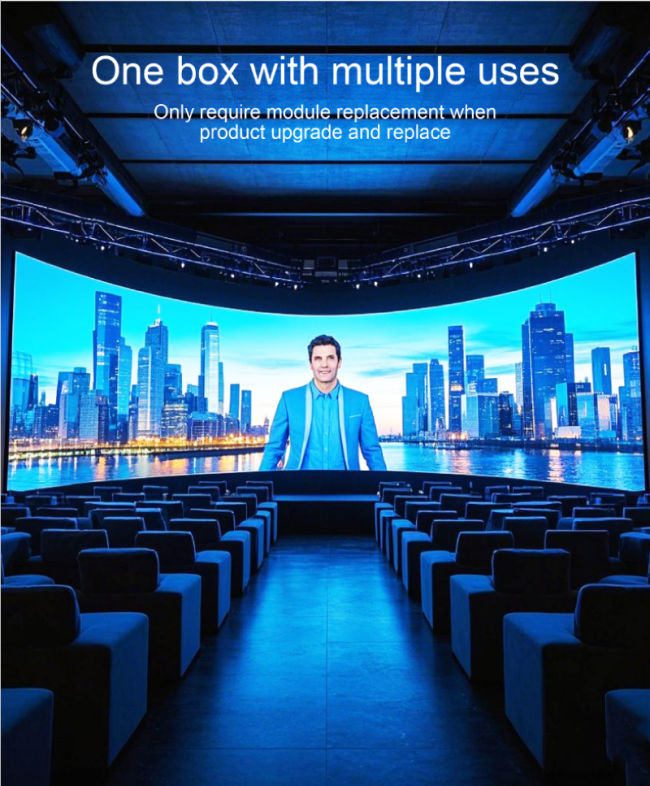

• Modular Design: Only modules need to be replaced during product upgrades, enabling "one cabinet for multiple uses".

2. Structural and Splicing Design

• Rich Cabinet Sizes: Available in two mainstream sizes, 500*500mm and 500*1000mm, to adapt to different application scenarios.

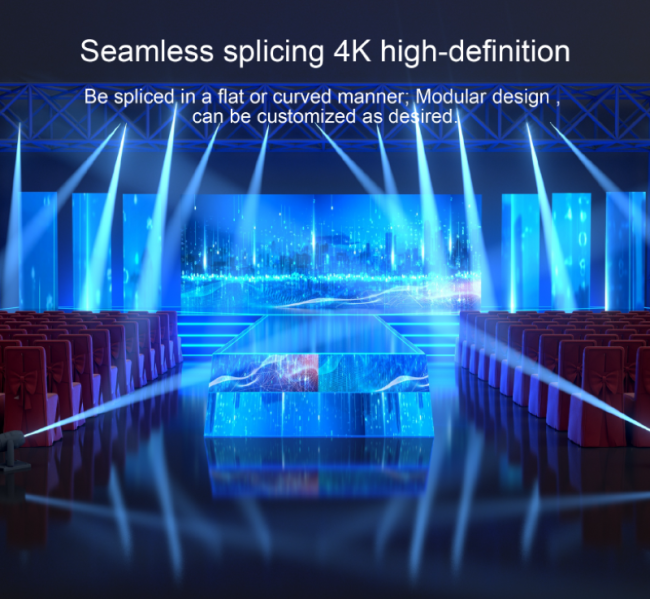

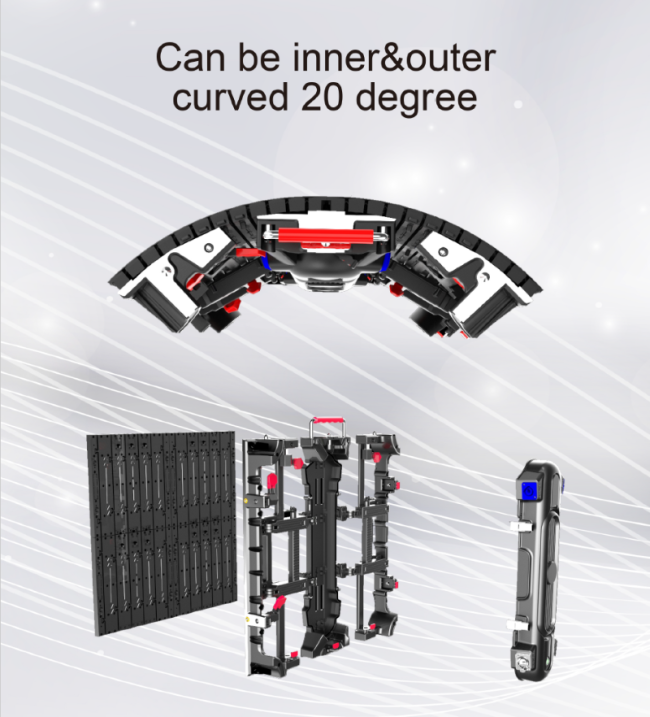

• Flexible Splicing: Supports flat splicing as well as inner and outer arc curved splicing. The SW-PRD Series can achieve a ±20° bend, while the SW-PRO Curve Series allows for 0-15° inner arc and 0-12.5° outer arc bends.
• Stable Connection: Adopts die-casting flexible hub connection (for SW-PRD) or die-casting hub connection with curved locks (for SW-PRO Curve), ensuring splicing accuracy and stability.

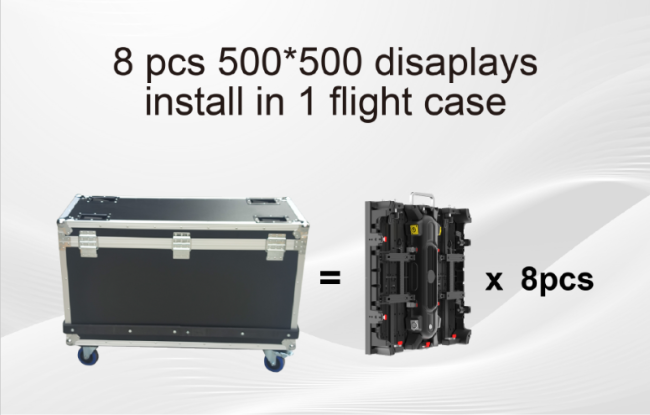

• Efficient Packaging: 8 units of the 500*500mm size can be packed in one flight case, and the 500*1000mm size supports packing 4 or 6 units in one flight case, facilitating bulk transportation.

3. Display Performance Advantages

• Clear Image Quality: Utilizes high-brightness, low-defect-rate LED beads, combined with the latest SMT technology, ensuring stable product quality.

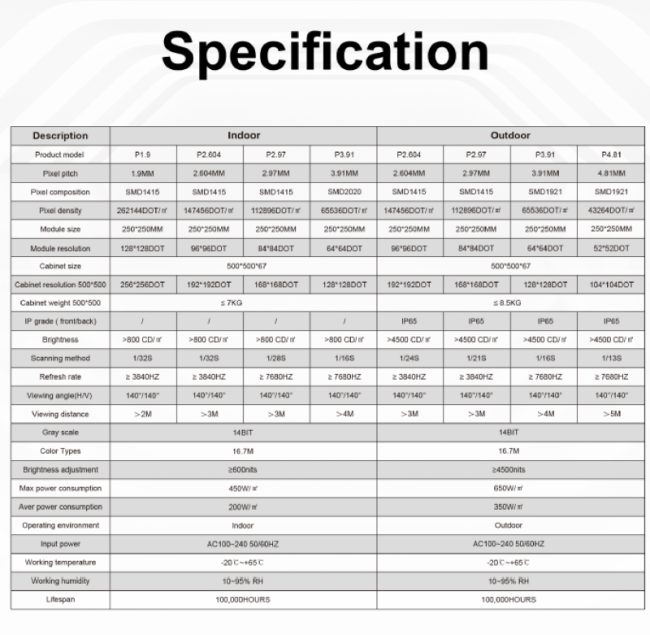

• High Resolution: The maximum pixel density reaches 262,144 DOT/m² (for P1.9 model), presenting fine details without trailing or flickering.
• Ultra-high Refresh Rate: Adopts PWM high-refresh chips, with a refresh rate of ≥3840Hz, and some models can reach 7680Hz or above, meeting the requirements for playing high-speed dynamic images.
• Excellent Visual Experience: Features a 140° horizontal/vertical viewing angle, 14-bit grayscale, and 16.7 million colors, achieving true color reproduction.
• Strong Brightness Adaptability: Indoor models have a brightness of >800 CD/m², outdoor models have a brightness of >4500 CD/m², and multi-level brightness adjustment is supported (up to 4500 levels).

4. Protection and Durability

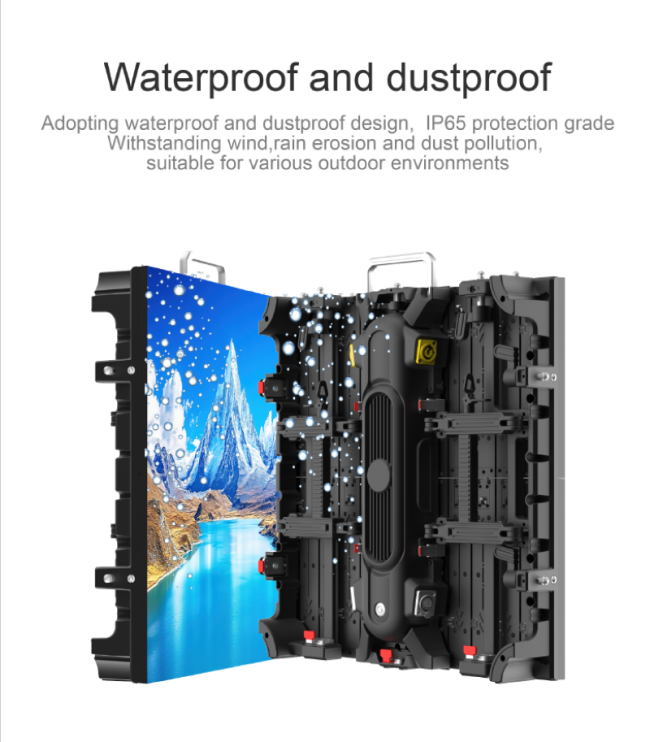

• High Protection Level: Outdoor models are designed with IP65 waterproof and dustproof capabilities, capable of withstanding wind, rain, and dust pollution, making them suitable for various outdoor environments.
• Long Service Life: Can reach 100,000 hours of normal use.
• Strong Environmental Adaptability: Operates within a temperature range of -20°C to +65°C and a humidity range of 10%-95% RH, compatible with multiple indoor and outdoor scenarios.

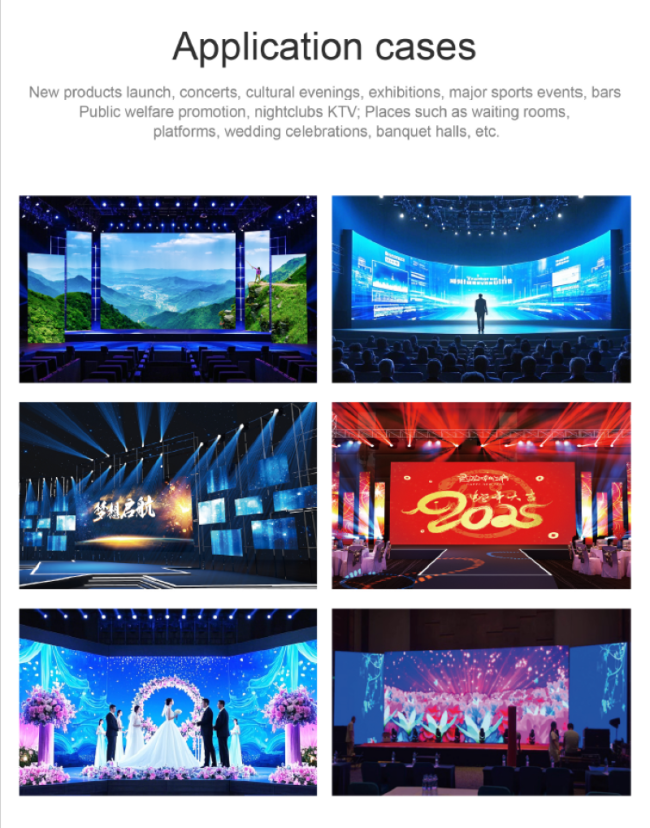

5. Applicable Scenarios

• Widely used in entertainment and event scenarios such as new product launches, concerts, cultural evenings, exhibitions, major sports events, bars, and nightclubs/KTVs.
• Suitable for public and private occasions including public welfare promotions, waiting rooms, platforms, wedding celebrations, and banquet halls.
