• Type: LED Q7 (with utility model patent)
• Applications: Automation equipment, security inspection systems, LED packaging machines, alarm systems, SMT equipment, CNC machine tools, engraving machines, industrial and mining equipment, etc.

• Branding Customization: Lamp body supports LOGO customization to align with corporate branding.
• Audible Alerts: Built-in buzzer with >95dB volume ensures warnings are heard in noisy industrial settings.
• Foldable Design: Can be folded 90 degrees, enabling easy transportation and flexible installation.
• LED Performance: Uses high-brightness LED patches with large viewing angles and low thermal resistance for reliable, long-lasting operation.

• Current: One color: 50mA; Buzzer: 15mA
• Flash Frequency: 60-70 Hz/min
• IP Rating: IP54 (dust and water jet protection)
• Temperature Range: <60°C
• Lifespan: 50,000H
• Material: Body: AL; Lens: PMMA
• Installation: Fixed by screw

(Note: Coding logic aligns with OUVJAN’s series design, ensuring consistency for configuration)

1. Model No: Q7
2. Layer: 1 (one-layer)
3. Mounting: A (Foldable type)
4. Voltage: 02 (DC24V)
5. Function: Options include Steady (B), Steady with buzzer (F)
6. Connect Type: T (PNP&NPN compatible)
7. Color: R (Red), Y (Yellow), G (Green)

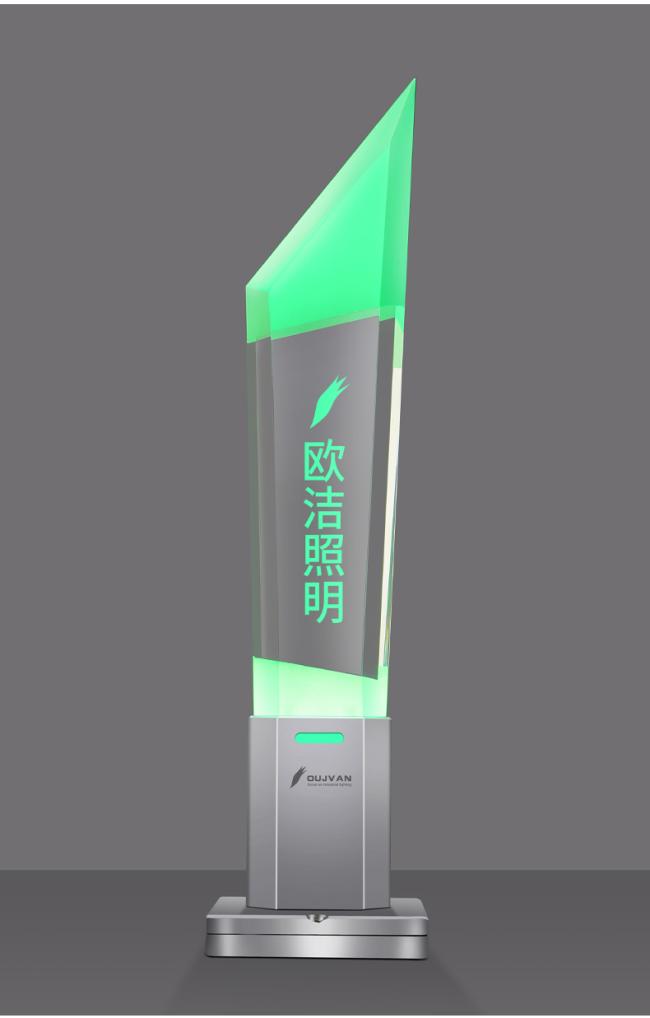

The patent-protected OUVJAN-Q7 integrates customized branding, durable LED technology, and a foldable structure to deliver clear visual and audible signaling for diverse industrial applications. It stands out with its unique angular design, making it both a functional tool and a brand-enhancing component for equipment.
