Dozer Excavator Cr1269d 2m5657 9m7445 Track Shoe Bolts And Nuts D9d D9g D9h Ec650
Price:
Negotiable
MOQ:
300 Piece (MOQ)
Delivery Time:
5-10 Days
Brand:
NF
Product Description

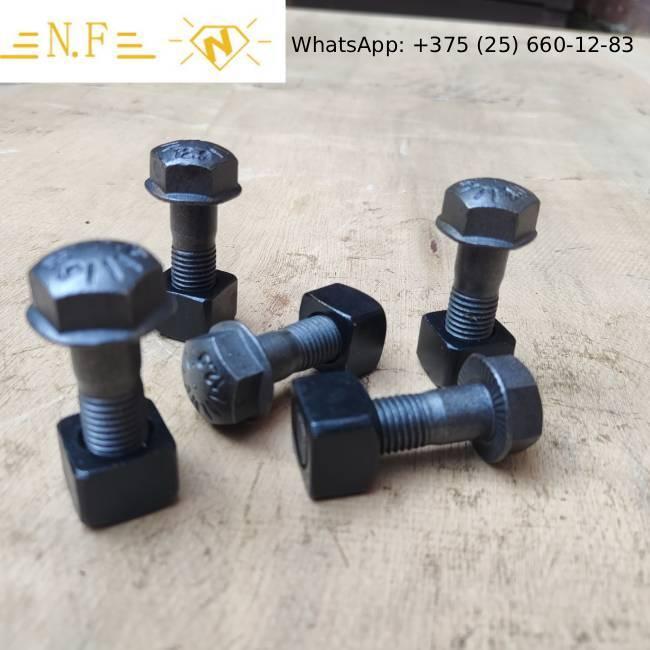

High Strength 12.9class Grade Dozer Excavator Cr1269d 2m5657 9m7445 Track Chain Shoe Bolt Nut D9d D9g D9h Ec650
Quanzhou Nanfeng Machinery Co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..
Features
- Easy to fit and install in minutes!
- Superior rubber compounds for long lasting durability
- Attach directly to your existing grousers - or remove them and bolt to your drive chain!
- Easy replacement of single units if one becomes damaged
- Many types and sizes available to fit almost every machine on the market
| Class of bolt, nut and washer |
| Components | Bolt | Nut | Washer |
| Class | 8.8 | DH 10S | F436M |
| 8.8 | 2HM | F436M |
Other size
Chain-on
Bolt-on
| Type | Pitch | h | D | d | Bolt | L | W | H | Weight |
| 230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 | 0.800 |
| 230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 | 0.900 |
| 250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 | 0.925 |
| 300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
| 300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
| 350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 | 1.230 |
| 350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 | 1.230 |
| 350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 | 2.035 |
| 350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
| 350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
| 380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 | 2.330 |
| 400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.180 |
| 400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.190 |
| 400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 | 4.000 |
| 400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 | 3.000 |
| 450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 | 2.450 |
| 450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
| 450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
| 500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 | 4.580 |
| 500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 | 4.510 |
| 600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 | 7.500 |
| 260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | ||
| 260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | ||
| 260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | ||
| 300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | ||
| 300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | ||
| 350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 | 4.000 |
| 400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | ||
| 450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | ||
| 200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | ||
| 305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | ||
| 355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | ||
| 455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | ||
| 300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 | 2.400 |
| 300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 | 2.400 |
| 320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 | 2.700 |
| 320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 | 2.700 |
Chain-on
| Type | Pitch | D | d | S | Bolt | L | W | H | Weight |
| 300C | 135 | 144 | 116 | 22 | M12 | 300 | 95 | 45 | |
| 400C | 135 | 94 | 64 | 46 | M12 | 400 | 125 | 52 | |
| 400CA | 135 | 99 | 72 | 43.5 | M12 | 400 | 125 | 52 | |
| 400CK | 135 | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 | |
| 400CB | 135 | 104 | 80 | 46 | M12 | 400 | 125 | 52 | |
| 400CD | 135 | 110 | 80 | 46 | M12 | 400 | 125 | 52 | |
| 400CV | 135 | 106 | 76 | 46 | M12 | 400 | 125 | 52 | |
| 400CK | 140 | 80 | 80 | 52 | M12 | 400 | 125 | 52 | |
| 400CW | 140 | 86 | 86 | 52 | M12 | 400 | 125 | 52 | |
| 450CN | 140 | 83 | 83 | 52 | M12 | 450 | 125 | 52 | 6kg |
| 450CW | 140 | 86 | 86 | 52 | M12 | 450 | 125 | 52 | |
| 450CA | 135 | 99 | 72 | 43.5 | M12 | 450 | 125 | 52 | |
| 450CB | 154 | 90 | 90 | 46.3 | M14 | 450 | 146 | 55 | |
| 450CD | 154 | 90 | 90 | 55 | M14 | 450 | 146 | 55 | |
| 450CS | 154 | 73 | 73 | 57 | M14 | 450 | 146 | 55 | |
| 450C | 154 | 89 | 73 | 57 | M14 | 450 | 146 | 55 | 8kg |
| 500CW | 135 | 104 | 80 | 46 | M12 | 500 | 125 | 52 | |
| 500CB | 175 | 102.4 | 86.4 | 57 | M16 | 500 | 162 | 69 | |
| 500C | 171 | 108 | 108 | 60.4 | M16 | 500 | 162 | 69 | 12.3kg |
| 500CS | 171 | 104 | 88 | 58 | M16 | 500 | 162 | 69 | |
| 500CA | 190 | 160.4 | 124.4 | 62 | M20 | 500 | 178 | 72 | |
| 500CD | 190 | 155.6 | 119.6 | 69 | M20 | 500 | 178 | 72 | |
| 600C | 171 | 108 | 108 | 60.4 | M16 | 600 | 162 | 69 | |
| 600CD | 190 | 155.6 | 119.6 | 69 | M20 | 600 | 178 | 72 | |
| 600CA | 190 | 160.4 | 124.4 | 62 | M20 | 600 | 178 | 72 | |
| 600CB | 190 | 160.4 | 124.4 | 62 | M18 | 600 | 178 | 72 | |
| 300 | 155 | 88.9 | 88.9 | 57.1 | M12 | 300 | 186 | 55 | 6kg |
| 320 | 155 | 104 | 88.9 | 55 | M12 | 320 | 186 | 55 |
3. Clip-on
| Type | Pitch | h | L | W | H | Weight |
| 380HD | 135 | 18 | 380 | 104 | 55 | 3.215 |
| 400HD | 135 | 18 | 400 | 106 | 51 | 3.055 |
| 450HD | 135 | 18 | 450 | 106 | 51 | 3.395 |
| 450HW | 154 | 20 | 450 | 124 | 50 | |
| 450HB | 175 | 26 | 450 | 127 | 68 | 5.600 |
| 500HD | 175 | 26 | 500 | 127 | 68 | 6.230 |
| 500HW | 171 | 20 | 500 | 137 | 68 | |
| 500HB | 175 | 18 | 500 | 127 | 60 | 6.206 |
| 600HD | 175 | 26 | 600 | 127 | 68 | 7.220 |
| 600HB | 190 | 26 | 600 | 137 | 71 | 8.220 |
| 600HA | 216 | 30 | 600 | 160 | 76 | 8.980 |
| 700HW | 171 | 20 | 700 | 137 | 63 | 8.200 |
| 700HD | 175 | 26 | 700 | 127 | 68 | 8.275 |
| 750HA | 216 | 30 | 750 | 160 | 76 | |
| 800HD | 190 | 26 | 800 | 137 | 70 | 9.505 |
