PLC Control Vertical Band Sealer Machine Laser Coder Foil Film Food Packaging 0-12m/min
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
COTAJET
Product Description

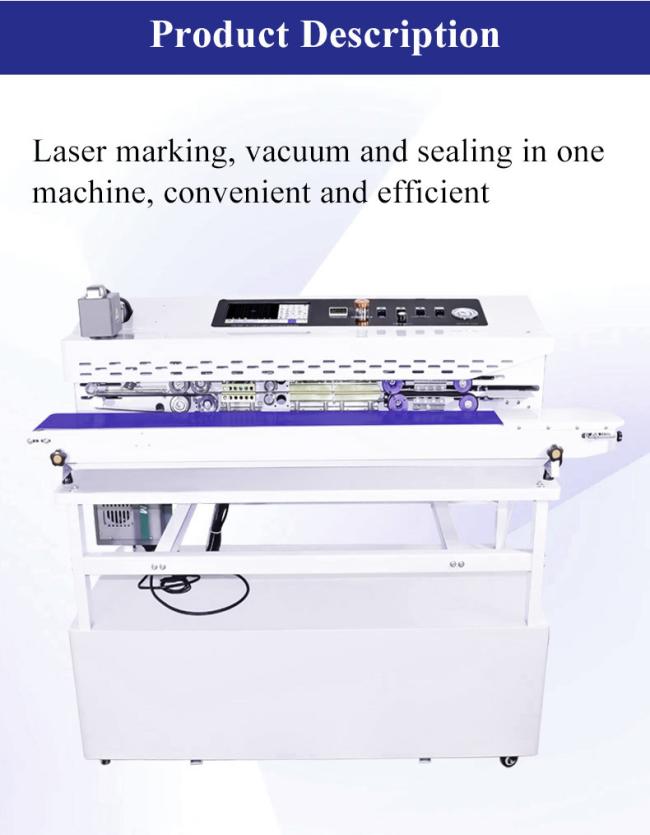

CSM-810 Vertical Band Sealer Laser Coder Foil Film Food Packaging
The CSM-810 Vertical Band Sealer with Laser Coder is a professional-grade continuous vacuum sealing machine designed for pouches and foil film food packaging applications.
Product Specifications
| Attribute | Value |
|---|---|
| Sealing Speed | 0-12m/min |
| Control System | PLC |
| Temperature Range | 0-300℃ |
| Power Supply | 220V/50Hz |
| Weight | 150kg |
| Conveyor Belt Width | 200mm |
| Type | Automatic |
| Sealing Width | 8-12mm |
| Dimensions | 1500x600x1200mm |
| Conveyor Belt Length | 1500mm |
| Sealing Height | 10-40cm |
| Sealing Method | Continuous |
| Material | Stainless Steel |
| Sealing Length | Unlimited |
Key Features

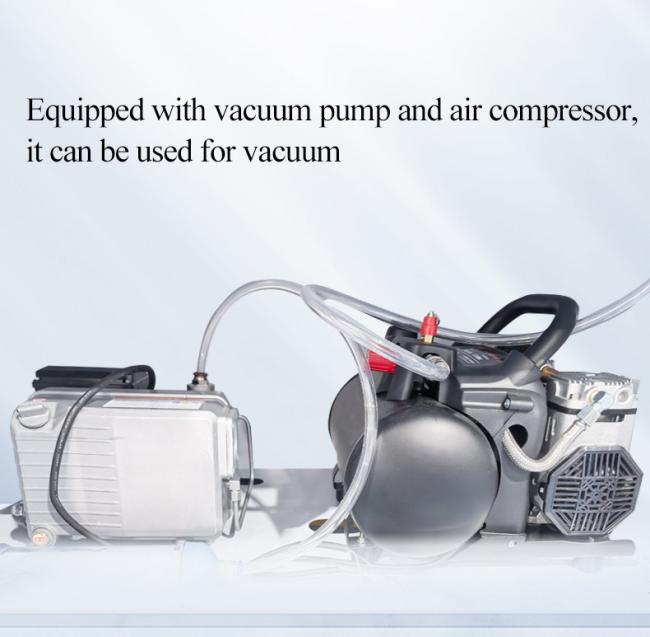

- Capable of multiple vacuum and gas flush cycles for optimal oxygen removal
- Innovative lever action nozzle design for easy package handling
- Precision temperature control with 0-300℃ adjustable range
- Stainless steel construction for durability and hygiene
- Integrated CO2 laser coding system (40W power)
- Automatic operation with PLC control system
- Continuous sealing method with unlimited sealing length

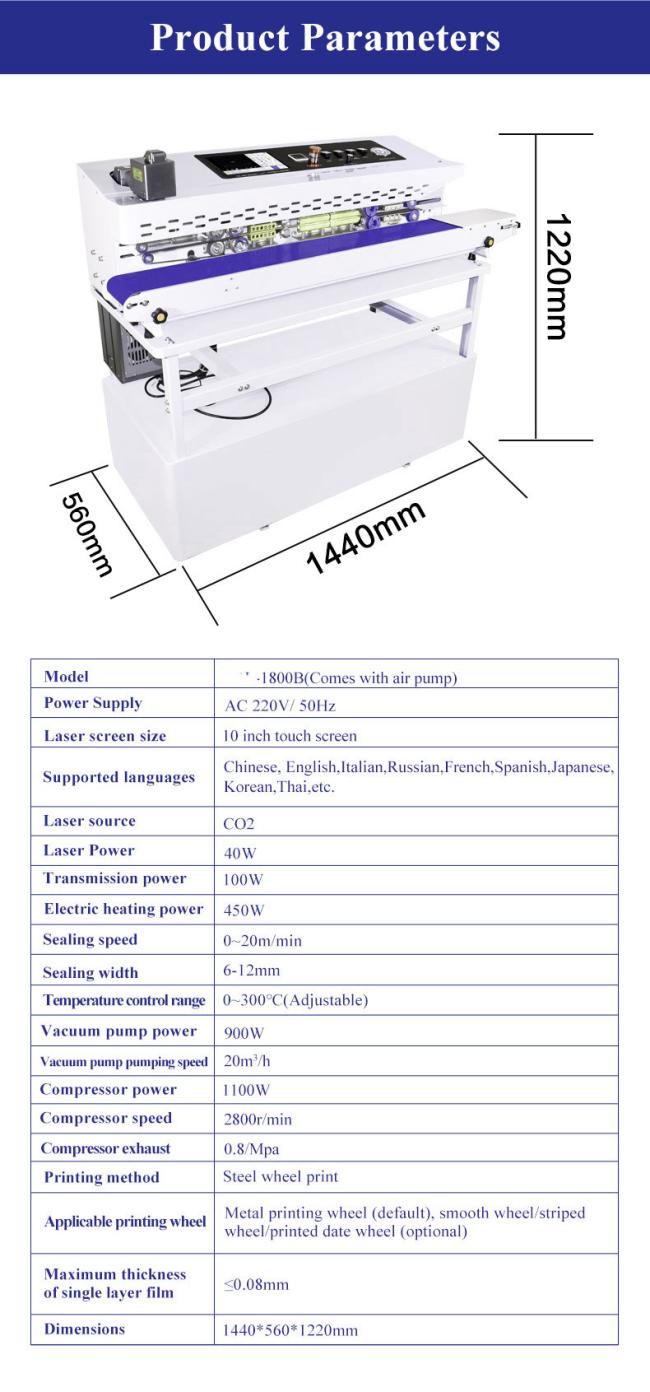

Technical Specifications
| Model | CSM-1800B |
|---|---|
| Power | 110-220VAC 50/60Hz |
| Transmission Power | 100W |
| Sealing Speed | 0-20M/Min |
| Sealing Width | 6-12MM |
| Single Layer Film Thickness | <0.18mm |
| Vacuum Pump Power | 90W |
| Vacuum Pump Speed | 20m³/h |
