Water Resistant EVA coated Coated Fabric For Outdoor And Protective Use
Coated Fabric Product ntroduction
Coated fabric is a funcionalcomposite material made by coaing polyester,coton,fiberglass cloth, or ther simlar materials with Pvc, PU,PE, siicne, or acplic materials.ltcombines the mechanical strength of the texle base withthe protective properies of the coaing, achieving a variety of characteristics such as waterproofing, oil resistance.abrasion resistance, flame relardancy,tear resistance, anibacterial properies,and UV resistance. tis widely usd in industrial equipment protecion,medical dressings, outdoolproducts.transport2nctocnnica teyiec
Coated fabric product parameters
| Item | Typical Range / Value | Description |
|---|---|---|
| Base fabric material | Shandong, China | - |
| Brand Name | JRF | - |
| Base Fabric | Polyester, Cotton, Nylon, Fiberglass, Blended | Selected according to application |
| Coating Type | PVC, PU, PE, EVA, PTFE | Different coatings for different performance |
| Surface Treatment | Waterproof, Fireproof, Anti-UV, Anti-static, Anti-mildew, Abrasion-resistant | Customizable functions |
| Weight (g/m²) | 150 – 1200 (Common: 300–600 g/m²) | Customizable |
| Thickness | 0.15 mm – 2.0 mm | Can be increased by lamination |
| Width | 1.00m / 1.50m / 2.00m / 3.20m | Supports customized cutting |
| Tensile Strength (Warp) | 800–4500 N/5cm | EN ISO 1421 Standard |
| Tensile Strength (Weft) | 500–3500 N/5cm | EN ISO 1421 Standard |
| Tear Strength (Warp) | 80–600 N | ASTM D751 Standard |
| Tear Strength (Weft) | 80–600 N | ASTM D751 Standard |
| Hydrostatic Pressure | 1000–10000 mmH₂O | Waterproof rating |
| Temperature Resistance | -30℃ to +80℃ (Up to -50℃ optional) | Outdoor performance |
| Flame Retardant Grade | NFPA 701 / B1 / M1 | Certificates available |
| Breathability | 500–5000 g/m²·24h | PU/TPU breathable |
| Color Options | White, Black, Gray, Green, Custom (Pantone support) | Customizable |
| Surface Finish | Matte / Semi-matte / Glossy / High-gloss | Optional |
| Mold Resistance | Grade 0 – 5 (Up to 3A Industrial Standard) | Anti-mildew test |
| UV Protection | UPF 30+ / 50+ / 100+ | For outdoor use |
| Service Life | 3 – 10 years | Depends on usage environment |
| Environmental Certification | ROHS / REACH / OEKO-TEX / EN-71 | Reports available |

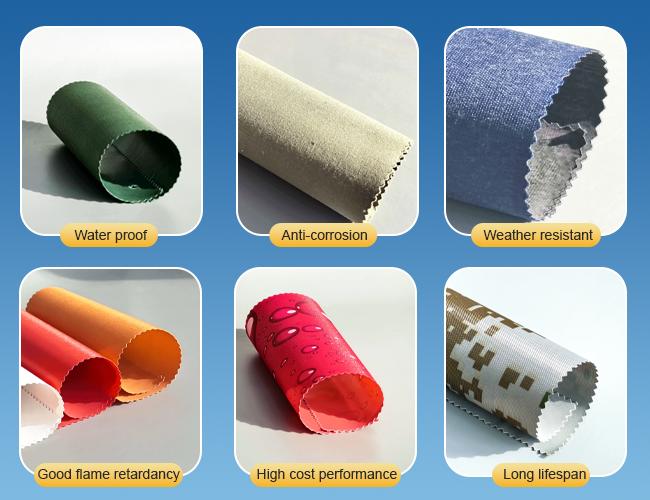

Features of coated fabric products
Coated fabric posseses high strengh, waterproof, corosion-resisitanl, weaher-resistant, customizable fame-retardant and enronmentaly friendly properies,making itsuitalblefor various industrial and outdoor environments. it is a cost-effective, long-lasting, and fexible functional material.
Coated Fabric Product Cases
Medical Device Manufacturers – Solving the Pain Points of Protective Clothing Protection and Comfort
Traditional protective clothing suffers from three major problems: low impermeability (only level 3), poor breathability (body temperature rises by 3.5°C after 4 hours of wear), and high cost and environmental unfriendliness due to its single-use nature.
A customized three-layer composite coated fabric solution: spunbond fabric + PTFE membrane + antibacterial PU coating. The outer layer achieves level 6 resistance to synthetic blood penetration and a filtration efficiency of 99.8%; the middle layer has a breathability of 8000g/m²·24h; and the inner layer is hypoallergenic and antibacterial, and can withstand disinfection and reuse up to 20 times.
After application, medical staff experience only a 1°C increase in body temperature after 6 hours of wear, achieving zero penetration exposure during high-risk operations; the cost per set is reduced by 90%, medical waste is reduced by 12 tons annually, and order volume has increased by 200%, making it a valuable emergency reserve material for disease control.
About Us
Jiurunfa Chemical Technology Co., Ltd., relying on its dual core advantages of "R&D-driven development + strict quality control," has established an R&D team composed of materials science experts and chemical engineers. Equipped with advanced coating process laboratories and testing centers, it can achieve independent innovation across the entire chain, from substrate selection and coating formulation development to production process optimization. Currently, it holds over 20 patented technologies, and its core coating technologies cover diverse functions such as waterproofing and leak prevention, antibacterial and stain resistance, breathability and moisture permeability, high temperature and wear resistance, and low allergen and environmental friendliness. It can customize coated fabric products with different coating systems such as PU, PVC, TPU, and silicone according to customer needs.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
