The Digital Coating Thickness Gauge provides precise measurements for coating applications in industrial and manufacturing environments.

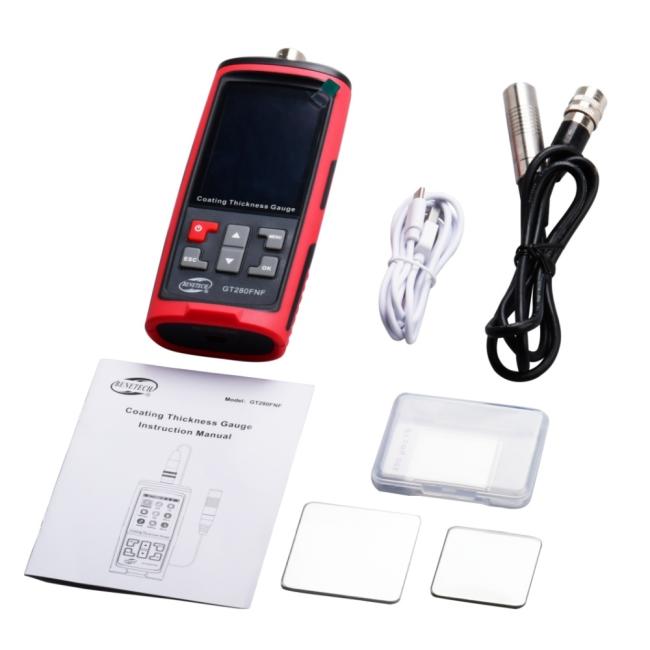

This product is a portable coating thickness gauge with a color screen and high. Definition display.
It can quickly, non-destructively, and accurately measure the thickness of non-magnetic coatings on magnetic metal substrates and non-metal coatings on non-magnetic metal substrates. It can automatically identify magnetic and non-magnetic metal substrates and is widely used in manufacturing, metal processing, chemical industries, and quality inspection fields.

Menu-style operation with a color screen and high-definition display.

Measurement of non-magnetic coating thickness on magnetic metal substrates and non-metal coating thickness on non-magnetic metal substrates.

Offers both single and continuous measurement modes.

Provides basic and zero-point calibration functions.

Unit selection in μm or mil and automatic storage function.

Automatic shutdown option.

Measurement range	0~1800μm/70.8mil
Resolution	<100μm:0.1μm; ≥100um:1μm;0.1mil
Measurement error	≤150μm:±5μm;>150μm: ±(3%H+1μm)
Minimum diameter of magnetic metal substrate	12mm
Minimum thickness of magnetic metal substrate	0.5mm
Minimum radius of curvature of magnetic convex substrate	2mm
Minimum radius of curvature of magnetic concave substrate	11mm
Minimum diameter of non-magnetic metal substrate	50mm
Minimum thickness of non-magnetic metal substrate	0.5mm
Operating voltage	DC3.7V (Lithium battery capacity 1000mAh)
Product dimensions	150*65*35mm
