RWB-206 Whiteness Brightness Reflectance Meter with Blue Light Whiteness R457 LED 457nm Illuminant
Price:
negotiable
MOQ:
2
Delivery Time:
5-10 working days
Brand:
Bestone
Product Description
Whiteness and Brightness Reflectance Meter Model RWB-206
Applications
This precision instrument is designed for direct measurement of whiteness values on flat surfaces of objects and powders. It finds extensive application across multiple industries including textile printing and dyeing, paints, chemical building materials, paper and cardboard, plastic products, white cement, ceramics, enamel, talc, starch, flour, salt, detergents, cosmetics, and various other materials requiring whiteness measurement.
Key Features
- Integrated system comprising light source, optical system, detection system, and data processing/display
- Utilizes blue light whiteness R457 calculation formula for accurate measurements
- Calibrated scale: 100 for ideal surface with diffuse reflectance ratio of 1, 0 for black surface with spectral reflectance factor of 0
- Advanced diffuse reflection technology for precise light measurement across rough surfaces
- Compliant with multiple international standards including JJG512-2002, GB3978, GB3979, GB7973, GB7974, ISO2470, and others
- Optional USB and RS-232C data output for PC connectivity and data collection
- Bluetooth data output option available for wireless connectivity
Measurement Principle
The instrument operates on the photoelectric effect principle, featuring a long-life LED light source at 457nm wavelength. The system captures diffuse reflectance radiant brightness energy from sample surfaces, processes it through high-precision auto-zeroing operational amplifiers, and displays direct whiteness values with exceptional accuracy.
Technical Specifications
| Measuring Range | Whiteness: 0-100, Reflectance: 0-100 |
| Resolution | 0.1 |
| Illumination Condition | 45/0 |
| Illuminant | LED 457 nm |
| Whiteness Formula | Blue Light Whiteness WB=R457 |
| Measuring Aperture | 11x18 mm Rectangle |
| Zero Drift | ≤0.1 |
| Display Stability | ≤0.5 |
| Repeatability | ≤0.1 |
| Operating Conditions | Temperature: 0-40°C, Humidity: <85% RH |
| Power Supply | Lithium Battery |
| Dimensions | 140x44x75 mm |
| Weight | 305g (excluding batteries) |

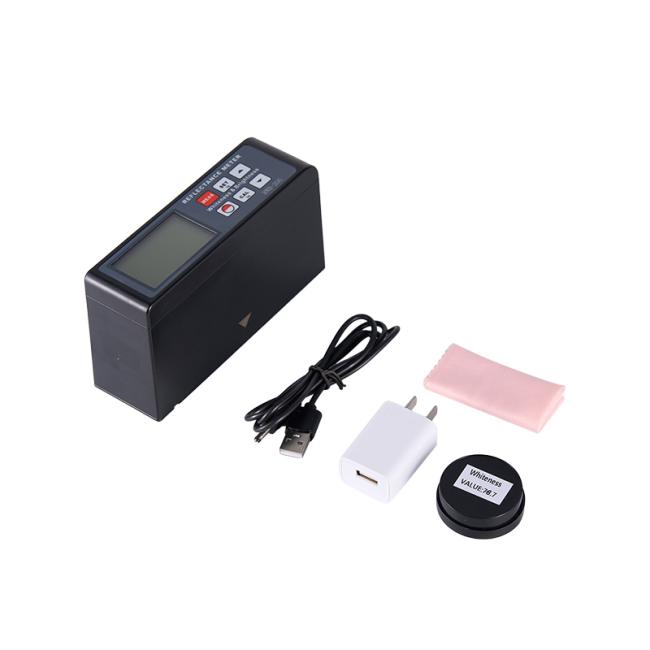

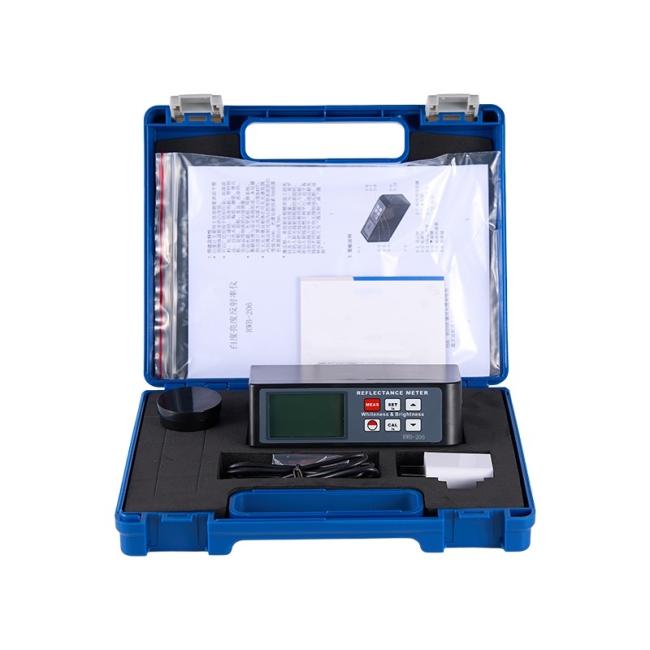

Standard Accessories
Main Unit, Standard Board, Optical Cleaning Cotton Cloth, Carrying Case, Operation Manual, AC Adaptor
Optional Accessories
Constant Pressure Powder Forming Apparatus, USB/RS-232 Data Cable with Software, Bluetooth Data Adapter with Software
