China GM63A,GM63B Digital Vibration Meter with Piezoelectric Ceramic Accelerometer for 0.1 ~ 199.9m/s2 Acceleration and 10Hz ~ 15kHz Frequency Range for sale

GM63A,GM63B Digital Vibration Meter with Piezoelectric Ceramic Accelerometer for 0.1 ~ 199.9m/s2 Acceleration and 10Hz ~ 15kHz Frequency Range

Price Negotiable

Price: EXW US$70~US$91

MOQ: 12

Delivery Time: 3-5 working days

Brand: Benetech, Bestone

Product Description

Applications:

This product adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, especially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. Field.

Features:

Simple to use, the structure is compact, portable for carrying along with measurement.
Visually display measurement value and state.
Acceleration, velocity and displacement measurement.
Different vibration frequency selection.
High sensitivity probe for accurate measurement Pro vides long and short probe head, each one is suitable for different situation measurement.

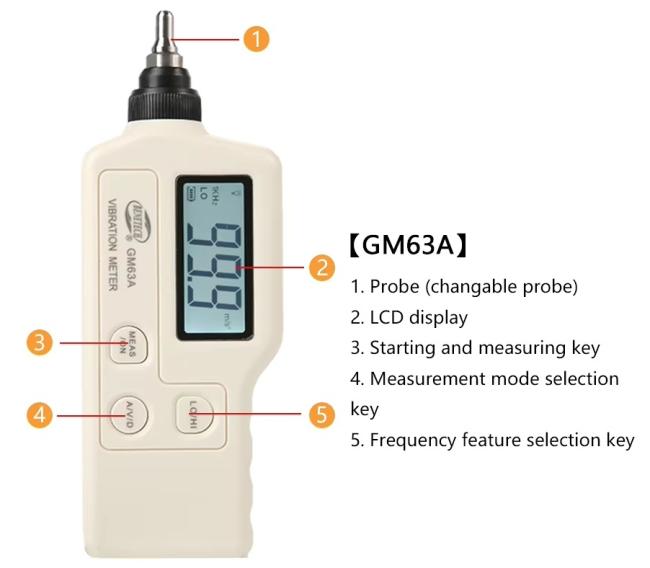

Equipped with AC signal output interface(only GM63A).

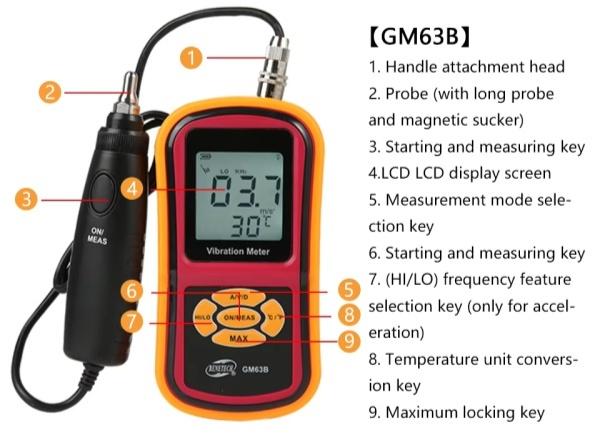

Provides a magnetic probe to fit the condition uneasy hold on by hand(only GM63B).
Maximum value hold function(only GM63B).
Temperature unit ℃/℉ selection(only GM63B).
Low power indication.
Auto power-off.
LCD backlight.

Vibration Standard:

Quality Rank	Rev (rpm)	H: high of shaft (mm) Maximum vibration velocity rms (mm/s)
ISO/IS2373 Motor Quality Standard According as Vibration Velocity
Quality Rank	Rev (rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good (R)	600~1800	0.71	1.12	1.8
Good (R)	1800~3600	1.12	1.8	2.8
Excellent (S)	600-1800	0.45	0.71	1.12
Excellent (S)	1800-3600	0.71	1.12	1.8

Specifications:

	GM63A	GM63B
Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration	0.1~199.9m/s² peak
Measurement range of velocity	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s²
Measurement accuracy	±5%±2digits
Measurement frequency range of acceleration	10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency range of velocity	10Hz～1KHz (LO)
Measurement frequency range of displacement	10Hz～1KHz (LO)
Displays update cycle	1 second
LCD display	3 1/2 digits display
Single output	AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected		No this function
Power supply	9V Alkaline battery
Static current	≤20μA			≤15μA
Operating current	≤25mA
Battery life	20 hours continuous use
Auto power-off	Turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
Low battery indication	6.9V±0.2V				6.4V±0.2V
Dimensions	67x30x183mm				72x35x145mm
Weight	182g (including battery)
Standard accessories	1. Vibration Meter:1pc 2. 9V Alkaline battery (for air shipping not included) (1pc) 3. User’s manual(1pc) 4. Long probe(1pc) 5. Short probe (equipped on the main unit) (1pc) 6. aluminum case and paper box(1pc)					1. Vibration Meter:1pc 2. 9V Alkaline battery (for air shipping not included) (1pc) 3. User’s manual(1pc) 4. Long probe(1pc) 5. Short probe (equipped on the main unit) (1pc) 6. aluminum case and paer box (1pc) 7. Detector handle (1pc) 8. Magnetic probe (1pc)
