VM-6360 Digital Vibration Meter with ISO 2954 Compliance RS-232 and Bluetooth Data Output for Precise Vibration Analysis
Price:
negotiable
MOQ:
1
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description

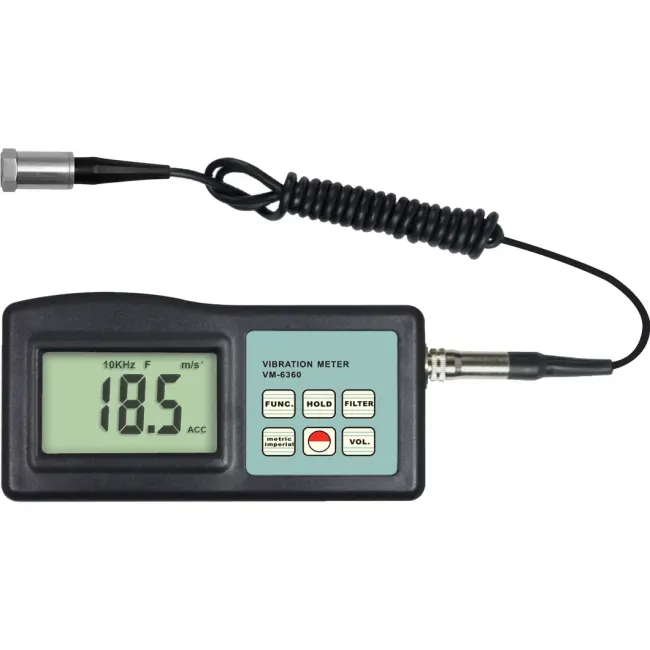

Digital Vibration Meter Vibrometer Gauge Tester Analyzer (VM-6360)
Applications
Designed for measuring periodic motion and detecting imbalance and deflection in moving machinery. Provides essential data for quality control, runtime monitoring, and equipment maintenance. Features a wide frequency range (10Hz-10kHz) in acceleration mode.

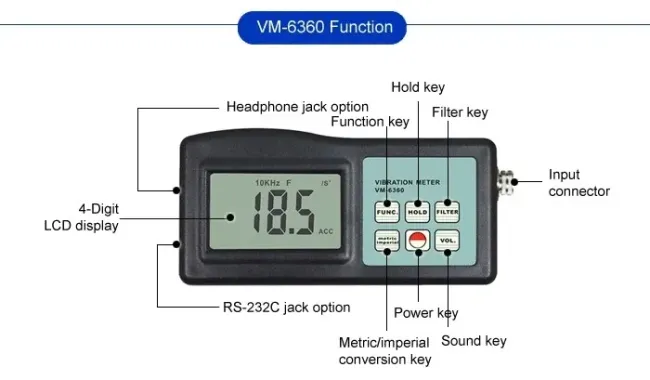

Key Features
- Compliant with ISO 2954 for periodic measurements and mechanical fault detection
- Ideal for on-site vibration measurement in rotating machinery
- High-quality accelerometer for accurate, repeatable measurements
- Optional headphones for use as electronic stethoscope
- RS-232 data output for PC connectivity
- Bluetooth data output option available
Vibration Standard
ISO/IS2373 Motor Quality Standard According As Vibration Velocity
| Quality Rank | Rev(rpm) | H:high of shaft(mm) | Maximum vibration velocity rms(mm/s) |
|---|---|---|---|
| Normal | 600~3600 | 80<H<132 | 1.8 |
| Good(R) | 600~1800 | 132<H<225 | 2.8 |
| 1800~3600 | 225<H<400 | 4.5 | |
| Excellent(S) | 600~1800 | 0.71 | 1.12 |
| 1800~3600 | 1.12 | 1.8 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | Piezoelectric Transducer |
| Measuring Range | Acceleration: 0.1~400m/s² Equivalent Park Velocity: 0.01~400mm/s True RMS Displacement: 0.001~4.0mm Equivalent Peak-peak |
| Frequency Range | Acceleration: 10Hz~10kHz Velocity: 10Hz~1kHz Displacement: 10Hz~1kHz |
| Accuracy | 5% of Reading+2 digits |
| Operating Conditions | Temperature: 0~50ºC Humidity: <90%RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 124x62x30mm |
| Weight | 120g (Not Including Batteries) |

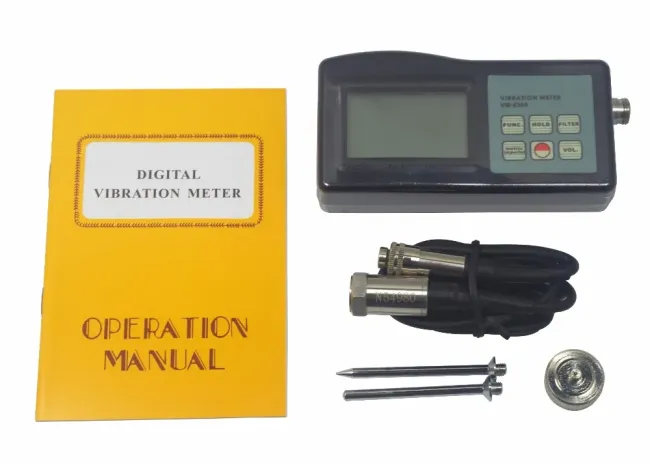

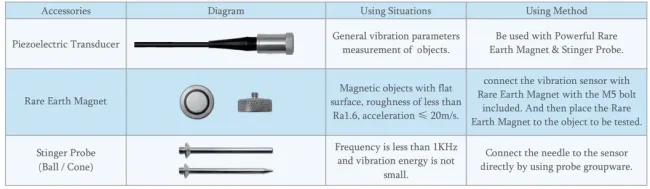

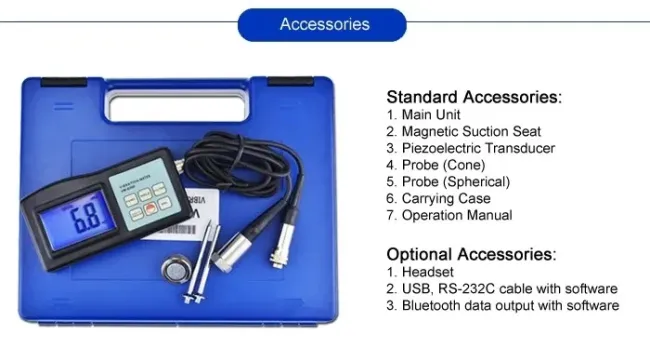

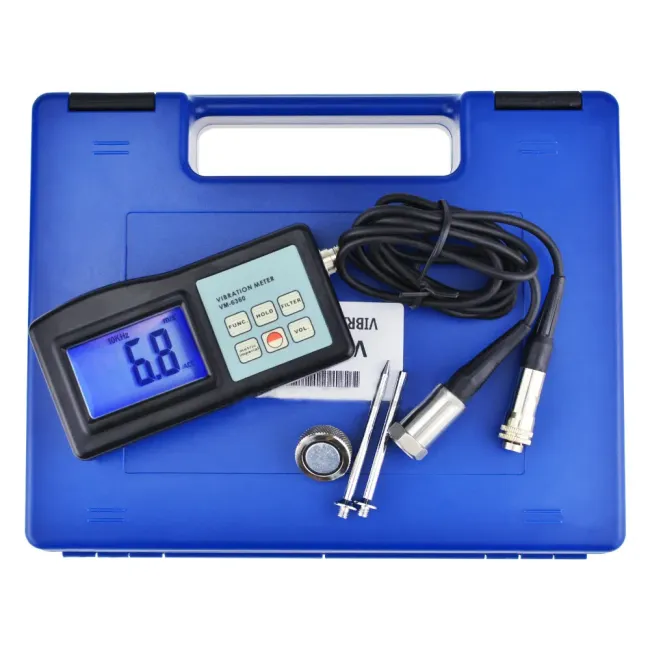

Standard Accessories
- Main Unit
- Piezoelectric Transducer
- Powerful Rare Earth Magnet
- Probe (Cone) & Probe (Spherical)
- Carrying Case (B04)
- Manual Book
Optional Accessories
- Headset
- RS-232C Data Cable with Software
- Bluetooth Data Adapter with Software
