WT63A Digital Vibration Meter with Acceleration and Velocity Measurement for Industrial Machinery Monitoring
Price:
EXW US$68
MOQ:
20
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description
Vibration Meter Digital Vibration Sensor Meter Tester Vibrometer Analyzer Acceleration Wt63A
Product Overview
This professional vibration meter utilizes piezoelectric effect technology with artificial polarized ceramic design. Ideal for monitoring various vibrating mechanical equipment, particularly rotating and reciprocating machinery. Measures acceleration, velocity, and displacement - essential for mechanical manufacturing, power metallurgy, and general aviation industries.
![]()

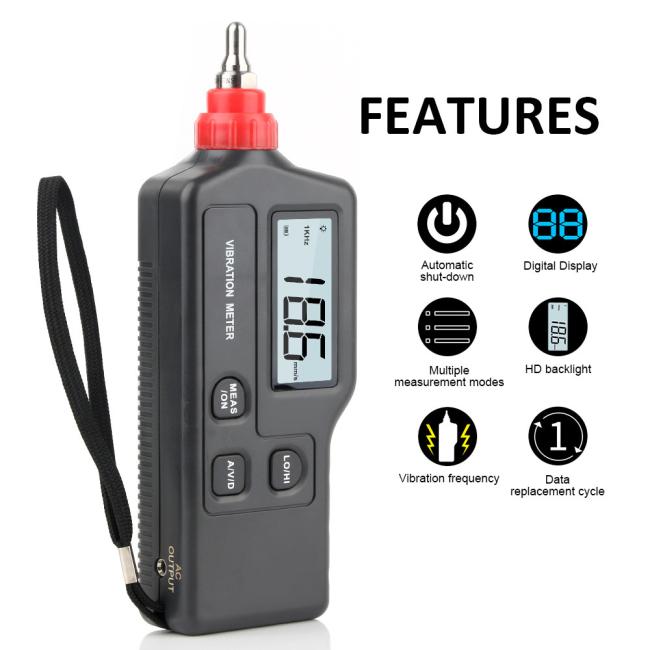

Key Features
- Compact, portable design for easy field measurements
- Instant display of measurement values and status
- Triple measurement capability: acceleration, velocity, and displacement
- Multiple vibration frequency selection options
- High sensitivity probe for precise measurements

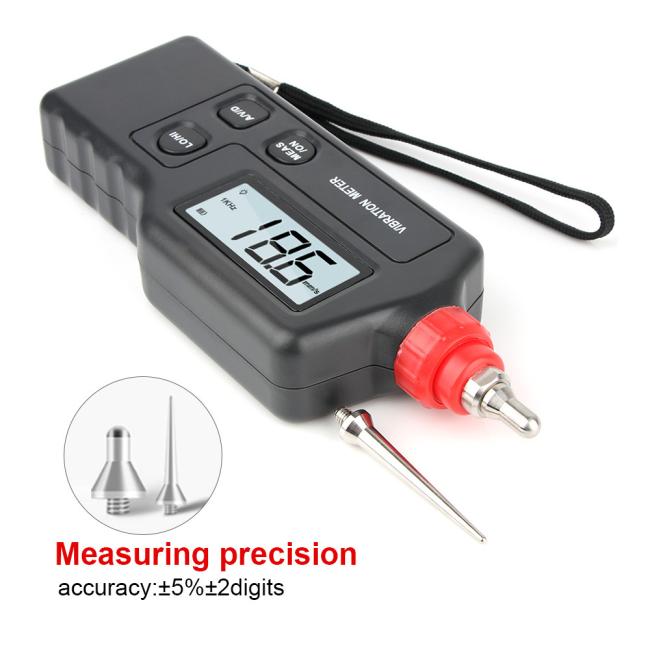

- Includes both long and short probe heads for different applications
- Equipped with AC signal output interface
- Low power indicator and auto power-off function
- LCD backlight for visibility in various lighting conditions
![]()
Technical Specifications
| Vibration Pickup | Piezoelectric ceramic accelerometer (shear-type) |
|---|---|
| Measurement Range | Acceleration: 0.1 ~ 199.9m/s² peak Velocity: 0.1 ~ 199.9 mm/s rms Displacement: 0.001 ~ 1.999mm p~p |
| Accuracy | ±5% ±2 digits |
| Frequency Range | Acceleration: 10Hz ~ 1kHz (LO), 1kHz ~ 15kHz (HI) Velocity: 10Hz ~ 1kHz (LO) Displacement: 10Hz ~ 1kHz (LO) |
| Display | 3½ digit LCD, updates every 1 second |
| Output | AC output 2V peak (display full scale), load impedance 10kΩ |
| Power Supply | 9V Alkaline Battery (included) |
| Battery Life | 20 hours continuous use |
| Auto Power-off | 60 seconds inactivity |
| Operating Conditions | 0~40°C (32~104°F), 30~90% RH |
| Dimensions | 67 × 30 × 183mm (2.64 × 1.18 × 7.2 inches) |
| Weight | Approx. 182g (6.42oz) (battery not included) |
Product Images
