WT100A,WT130A Color Screen LCD Ultrasonic Thickness Gauge with 5MHz Working Frequency and 1000 to 9999m/s Sound Velocity
The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement. This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas.
High/low limit alarm.
Data storage.
Five screen colors can be selected.
Probe can be selected (for WT130A)
Color backlit screen.
Two calibration modes (sound velocity calibration, basic calibration).
| Model | WT100A | WT130A |
|---|---|---|
| Measurement range | 1.00～225.0mm | 1.00～300.0mm |
| Data storage | 500 | 1500 |
| Probe selection | Ⅹ | √ |
| Operation frequency | 5MHz | 5MHz/2.5MHz |
| φ6 probe | Ⅹ | √ |
| φ10 probe | √ | √ |
| Resolution | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 225mm) | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm) |
| Measurement error | ±(0.5%H+0.05) mm | |
| Lower limit of pipe measurement | Φ20x3mm (steel) | |
| Adjustment range of sound speed | 1000～9999m/s | |
| Temperature range of operation | 0～40℃ | |
| Power Supply | 3 Ni-MH rechargeable batteries of 1.2V | |
| USB charging | 5V 1A | |
| Dimension | 65x146x30mm | |
| Weight | 130g (included battery) | |

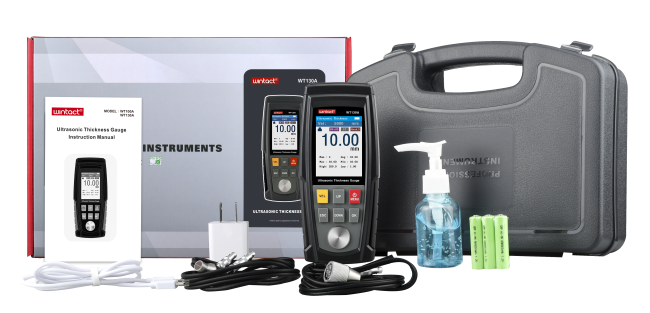

Ultrasonic Thickness Gauge:1pc
10 Transducer (Φ10mm 5MHz):1pc
6 Transducer (Φ60mm 5MHz):1pc (only for WT130A).
Coupling agent (50ml):1 bottle (for international transportation does not include).
4mm Sample block (Integrated on the front of the instrument):1pc
Ni-MH rechargeable batteries of 1.2V:3pcs;
Charger:1pc
English Instruction Manual.
Paper color box: 1pc.
Plastic Packing Box:1pc
Optional accessories transducer: 10 Transducer (Φ10mm 2.5MHz):1pc (for WT130A)
High temperature transducer:1pc (for WT130A)
