GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
Price:
EXW US$26~US$36
MOQ:
40
Delivery Time:
3-5 working days
Brand:
Benetech,Bestone
Product Description
Applications:

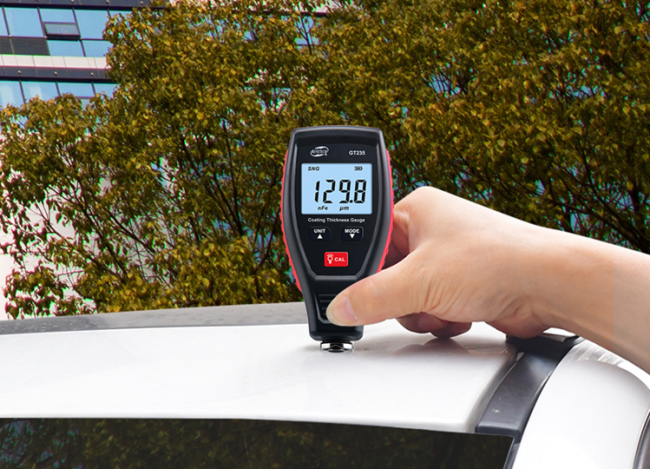

This product is a portable coating thickness gauge with a color screen and high. Definition display. It can quickly, non-destructively, and accurately measure the thickness of non-magnetic coatings on magnetic metal substrates and non-metal coatings on non-magnetic metal substrates. It can automatically identify magnetic and non-magnetic metal substrates and is widely used in manufacturing, metal processing, chemical industries, and quality inspection fields.
Features:
- Thickness measurement of non-magnetic coating on the surface of magnetic metal substrate.
- Thickness measurement of the non-metallic coating on the surface of the non-magnetic metal substrate.
- Automatic identification function of magnetic metal substrate and non-magnetic metal substrate.
- Three measurement methods: single continuous, and difference.
- With zero point, offset, and basic three calibration functions.
- Metric and imperial unit selection.
- LCD backlight function.
- Automatic shutdown function.
Specification:
| Model | GT233 | GT235 |
|---|---|---|
| Measurement range | 0~1500μm/59mil/1.5mm | 0~1800μm/70.8mil/1.8mm |
| Resolution | (0.1μm (<100μm); 1μm(≥100μm)/0.1mil/0.001mm | |
| Measurement error | ≤150μm:±5μm; >150μm: ±(3%H+1μm) |
|
| Minimum diameter of magnetic metal substrate | 12mm | |
| Minimum thickness of magnetic metal substrate | 0.5mm | |
| Minimum radius of curvature of magnetic convex substrate | 2mm | |
| Minimum radius of curvature of magnetic concave substrate | 11mm | |
| Minimum diameter of non-magnetic metal substrate | 50mm | |
| Minimum thickness of non-magnetic metal substrate | 0.5mm | |
| Power supply | 1.5V AAA battery x 2pcs | |
| Operating temperature | -20~+40℃ | |
| Operating humidity | 10~95%RH | |
| Product dimensions | 62*27*121.5mm | |
| Weight | 105.03g | |

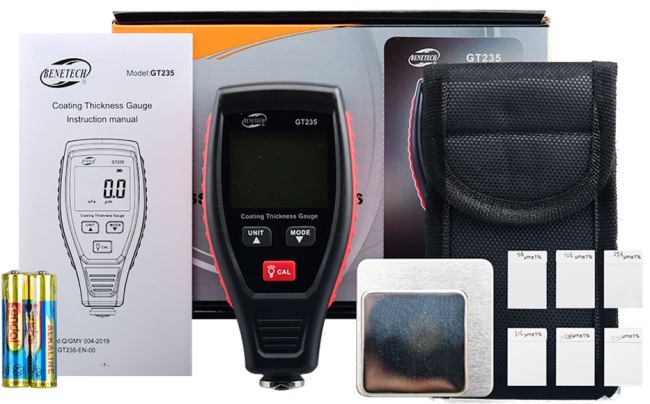

The contents included in the shipment:
- Coating Thickness Gauge (with built-in 2 in 1 split NFE and FE probe):1pc
- Magnetic metal substrate:1pc
- Non-magnetic metal substrate:1pc
- Standard films: 6 pieces
- 1.5V AAA battery x 2pcs (International shipping not included)
- English Instruction Manual:1pc
- Paper color box: 1pc
- Cloth bag:1pc
