The intelligent hand-held ultrasonic thickness gauge is microprocessor-controlled, enabling fast, accurate, and non-destructive measurement of thickness and sound speed for various materials. This instrument provides precise measurements for different materials and components in industrial production, monitors pipelines and pressure vessels in production equipment, and assesses corrosion levels of various parts in use. Widely applicable in manufacturing, metal processing, commodity inspection, and other testing fields.

Measures thickness of any good conductor for ultrasonic waves with parallel top and bottom surfaces, including metal, plastic, ceramic, and glass. Examples: aluminum, copper, gold, resin, water, glycerin, etc.

1. Measure the sound velocity of various materials.

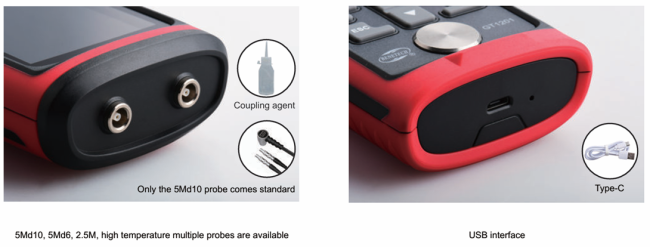

2. Can use 5Md10, 5Md6, 2.5M, high temperature probe.
3. Color display, menu operation.
4. Self-calibration.
5. Audible alarm beyond high/low limit.
6. Display average/maximum/minimum values.
7. View and delete data.
8. Short press the key to have a sound prompt.
9. Unit selection: mm, in.
10. Language choice: Chinese, English.
11. Backlight display, you can choose to steady on, highlight.
12. USB charging and PC communication.
13. Restore factory Settings (the stored data will not be deleted after the operation).
14. Store a maximum of 1500 strokes (a maximum of 15 groups, each group can store a maximum of 100 strokes).


Note: Out of measurement range, display [OL].

1. Ultrasonic Thickness Gauge:1pc
2. 10 Transducer (Φ10mm 5MHz):1pc
3. Coupling agent (50ml):1 bottle (for international transportation does not include).
4. 4mm Sample block (Integrated on the front of the instrument):1pc
5. 1000mAh 3.7V Lithium battery(built-in);
6. USB Cable:1pc
7. English Instruction Manual.
8. Paper color box: 1pc.
9. Cloth bag:1pc
