86238 External Small Probe Paint Thickness Gauge with 5000μm Measuring Range and Bluetooth Data Transmission for Automotive Use
Price:
EXW US$77
MOQ:
50
Delivery Time:
3-5 working days
Brand:
Bestone
Product Description
86238 External Small Probe Automotive Paint Thickness Measurement Digital Car Paint Coating Tester
The 86238 car paint meter features a split-type probe design, making it particularly suitable for measuring paint thickness in narrow spaces. This instrument not only measures paint thickness on ferrous and aluminum substrates but also intelligently identifies non-metallic materials, ferrous putty, and galvanized iron, providing clear insight into the vehicle's condition.
LS238 utilizes tri-color backlighting and indicator lights to display different colors based on the paint thickness, making it easy to grasp measurements. Powered by a rechargeable lithium battery, the LS238 boasts ultra-low power consumption. Furthermore, it is equipped with a coating thickness gauge App, supporting the export and sharing of inspection reports.
Key Features
- External small probe design for measuring paint thickness in narrow or hard-to-reach spaces
- Automatic identification of iron powder putty in Fe/Al mode

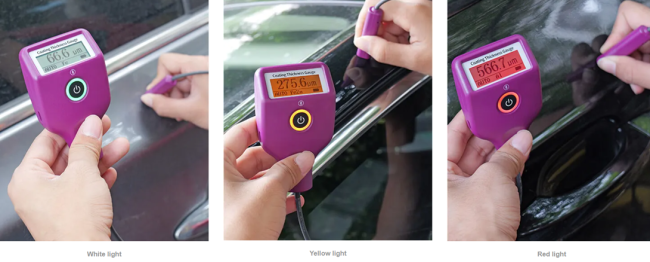

- Three-color screen backlight and button indicator lights corresponding to varying paint thickness
- Quick detection of ferrous, aluminum, galvanized iron, and non-metallic substrates
- Wide measurement range up to 5000μm
- Advanced digital probe technology minimizing interference and ensuring accuracy and stability
- Continuous measurement mode to detect uniform car thickness
- Powered by rechargeable lithium battery with Type-C charging interface
- Mobile App connectivity for measurements and test report generation
Technical Specifications
| Model | 86238 |
|---|---|
| Probe Type | External cable probe |
| Screen | LCD |
| Working Temperature | -20°C ~ 50°C |
| Display | Three-color backlight + indicator light |
| Bluetooth | Support |
| Power Supply | Rechargeable lithium battery 3.7V@1200mAh |
| Probe | Ruby |
| Measuring Principle | Fe: Hall Effect / Al: Eddy Current |
| Measuring Range | 0.0-5000μm |
| Resolution | 0.1μm/1μm/10μm |
| Unit | μm / mil |
| Accuracy | 0-3000μm: ≤±(3%H+2μm), H is the standard value 3000-5000μm: ≤±(5%H+2μm), H is the standard value |
| Measuring Interval | 0.3s |
Applications
Ideal for automotive inspection, used car evaluation, collision repair shops, and quality control in automotive manufacturing. The split-type probe design makes it perfect for measuring paint thickness in confined spaces like engine compartments, door jambs, and other hard-to-reach areas.
![]()
![]()
